DLP projector - laser/phosphor - 3D - 23750 lumens - WUXGA (1920 x 1200) - 16:10 - 1080p - no lens
| Main Specifications | |
|---|---|
| Product Description | Christie Jazz Series DWU2400-JS - DLP projector - no lens - 3D |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes |
| Microdisplay | DMD Chip |
| Brightness | 23750 lumens |
| Contrast Ratio | 1500:1 / 4000000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens | No lens |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hours - 50% brightness |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 1290 watt |
| Dimensions (WxDxH) | 20.5 in x 23.6 in x 7.6 in |
| Weight | 64.82 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes |
| Networking | Ethernet |
| Expansion / Connectivity | |

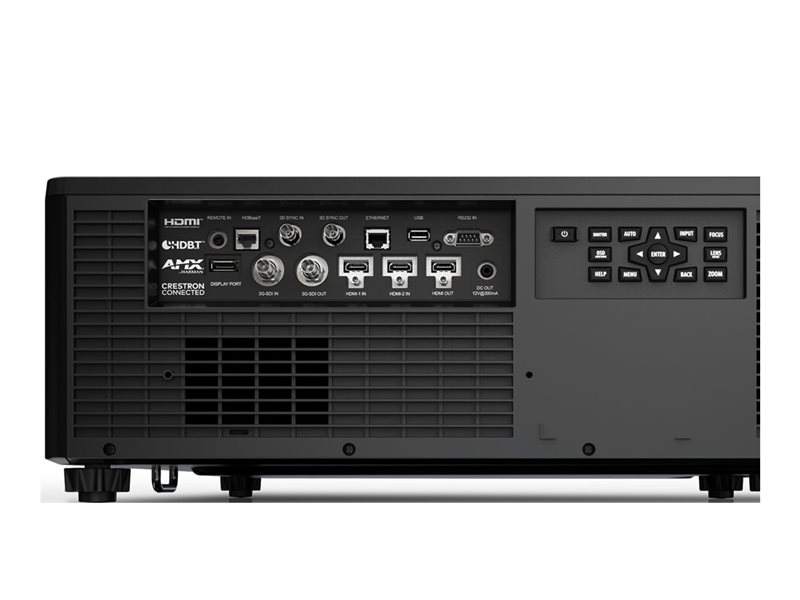

| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB - Type A ¦ 1 x DisplayPort input ¦ 1 x HDBaseT - RJ-45 ¦ 1 x 12G-SDI input - BNC ¦ 1 x 12G-SDI output - BNC ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x network - RJ-45 ¦ 1 x serial RS-232 (management) ¦ 1 x remote control input - 3.5 mm stereo |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 5 years ¦ Limited warranty - light source - 5 years / 20000 hours |
| Miscellaneous | |
| Compliant Standards | CSA 60950-1, IEC 60950-1, UL 60950-1, RoHS, REACH, WEEE, FCC Class A certified, cTUVus, FDA, CCC, KC, PSE Mark, VCCI, RCM |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 1290 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Sound Emission | 47 dB |
| Sound Emission (Economic Mode) | 42 dB |
| Video Input | |
| Video Interfaces | HDMI, DisplayPort, HDBaseT, 12G-SDI |
| Dimensions & Weight | |
| Width | 20.5 in |
| Depth | 23.6 in |
| Height | 7.6 in |
| Weight | 64.82 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 31.3 in |
| Shipping Depth | 38 in |
| Shipping Height | 14.6 in |
| Shipping Weight | 94.8 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 23750 lumens |
| Contrast Ratio | 1500:1 / 4000000:1 (dynamic) |
| Resolution | WUXGA - WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Video Bandwidth | 600 MHz |
| Max Sync Rate (V x H) | 120 Hz x 135 kHz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hours - 50% brightness |
| Features | RealBlack, 24/7 operation, Eco Mode, AMX Control System, Crestron Connected, Christie Twist, picture by picture, picture in picture, Christie Mystique compatible, omnidirectional operation |
| Lens | |
| Type | No lens |
