Customer display - 700 cd/m² - RS-232 - serial RS-232
| Main Specifications | |
|---|---|

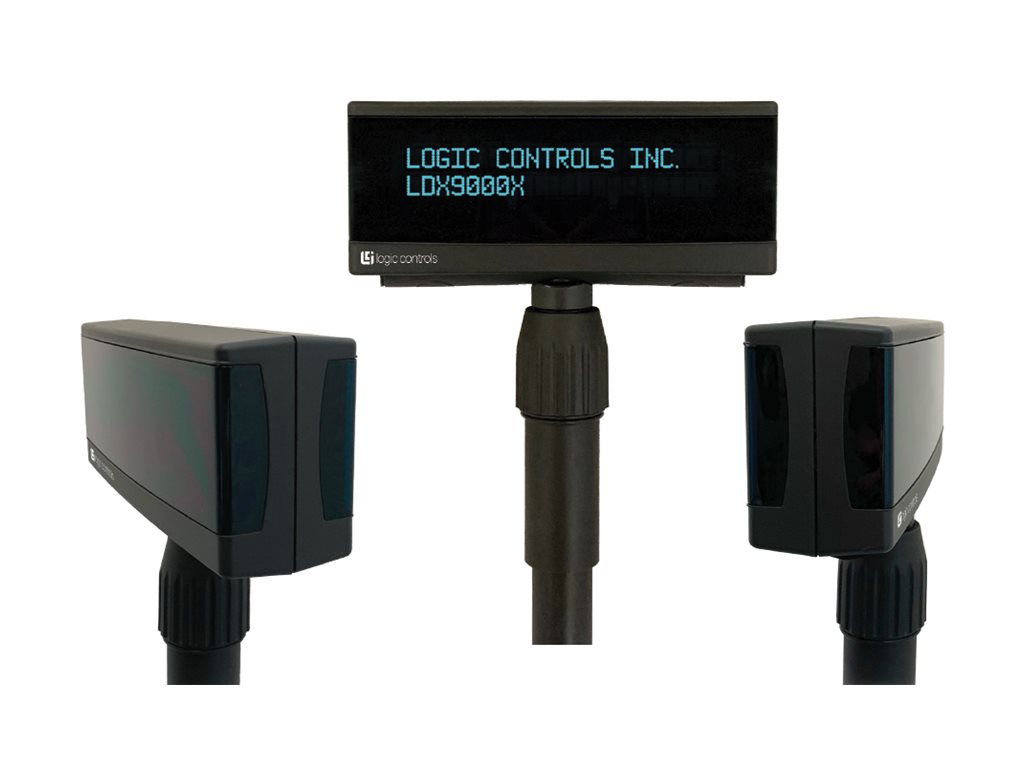

| Product Description | Logic Controls LDX9000X - customer display |
| Device Type | Customer display |
| Form Factor | Pole |
| Number Of Screens | 2 |
| Character Resolution | 2 lines x 20 characters |
| Brightness | 700 cd/m² |
| Command Set | AEDEX, EPSON, OPOS, ULTIMATE |
| Input Connectors | RS-232 |
| Voltage | AC 120 V (60 Hz) |
| Dimensions (WxDxH) | 8.5 in x 1.7 in x 3.3 in |
| Weight | 2.65 lbs |
| General | |
| Display Type | Customer display / Vacuum Fluorescent Display (VFD) |
| Form Factor | Pole |
| Number Of Screens | 2 |
| Character Resolution | 2 lines x 20 characters |
| Character Font | 5 x 7 |
| Character Height | 0.37 in |
| Character Width | 0.24 in |
| Brightness | 700 cd/m² |
| Command Set | AEDEX, EPSON, OPOS, ULTIMATE |
| Color | Blue green |
| Features | Double-sided screen, smart scrolling, wide language support with code pages, adjustable height, adjustable rotation, adjustable tilt, realtime clock, ASCII character configuration, user-defined graphics and symbols |
| Dimensions (WxDxH) | 8.5 in x 1.7 in x 3.3 in |
| Weight | 2.65 lbs |
| Miscellaneous | |
| Included Accessories | Plate, telescopic pole |
| MTBF | 300,000 hour(s) |
| Power | |
| Input Voltage | AC 120 V (60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Connectivity | |
| Interfaces | Serial |
| Dimensions & Weight | |
| Dimensions & Weight Details | Base - width: 4 in - depth: 8 in - height: 0.1 in |
