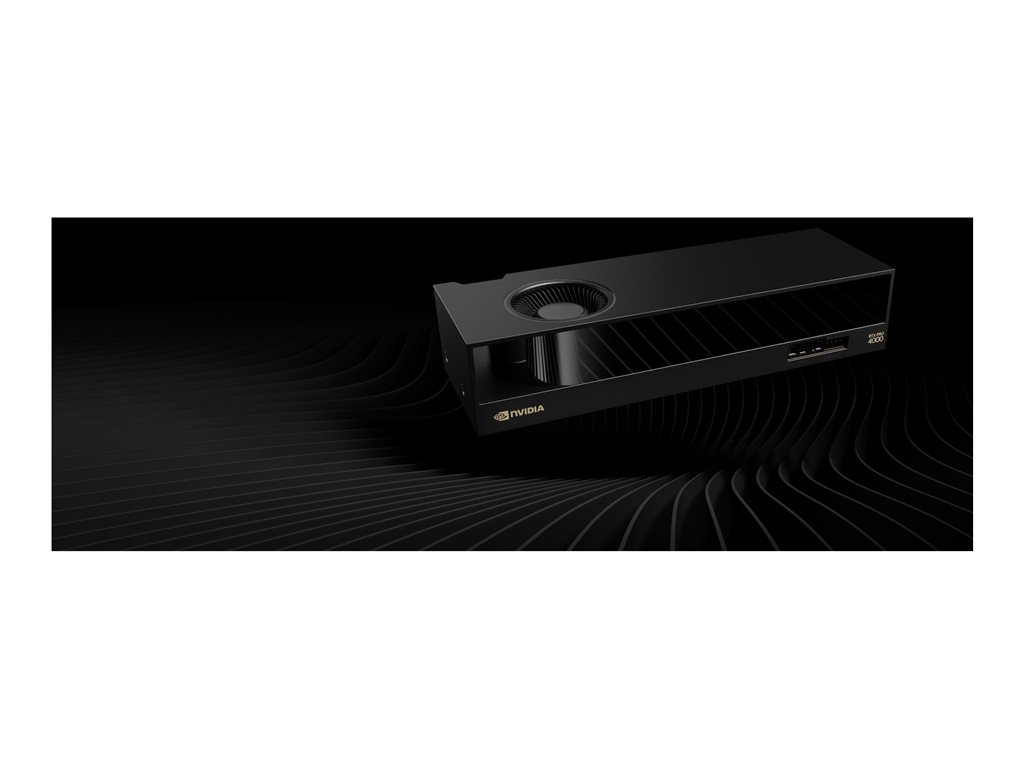

SFF Edition - graphics card - RTX PRO 4000 Blackwell - 24 GB GDDR7 - PCIe 5.0 x8 low profile - 4 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | NVIDIA RTX PRO 4000 Blackwell - SFF Edition - graphics card - RTX PRO 4000 Blackwell - 24 GB |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA RTX PRO 4000 Blackwell |
| Memory | 24 GB GDDR7 |
| CUDA Cores | 8960 |
| Memory Interface | 192-bit |
| Max Resolution | 7680 x 4320 |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 100 Hz (dual displays) / 3840 x 2160 at 165 Hz (four displays) |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x DisplayPort |
| API Supported | DirectX 12, Shader Model 6.7, OpenGL 4.6, Vulkan 1.4, CUDA 12.8, OpenCL 3.0 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| General | |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA RTX PRO 4000 Blackwell |
| CUDA Cores | 8960 |
| Max Resolution | 7680 x 4320 at 100 Hz |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 100 Hz (dual displays) / 3840 x 2160 at 165 Hz (four displays) |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x DisplayPort |
| API Supported | DirectX 12, Shader Model 6.7, OpenGL 4.6, Vulkan 1.4, CUDA 12.8, OpenCL 3.0 |
| Features | Error Correcting Codes (ECC) Memory, NVENC support, NVDEC support, 4:2:2 support, Enhanced Streaming Multiprocessors (SMs), AI Management Processor, FP4 precision support, NVIDIA DLSS 4 |
| Memory | |
| Size | 24 GB |
| Technology | GDDR7 SDRAM |
| Bus Width | 192-bit |
| Bandwidth | 432 GBps |
| Miscellaneous | |
| Power Consumption Operational | 70 watt |
| Compliant Standards | DisplayPort 2.1b |
| Depth | 6.6 in |
| Height | 2.7 in |
