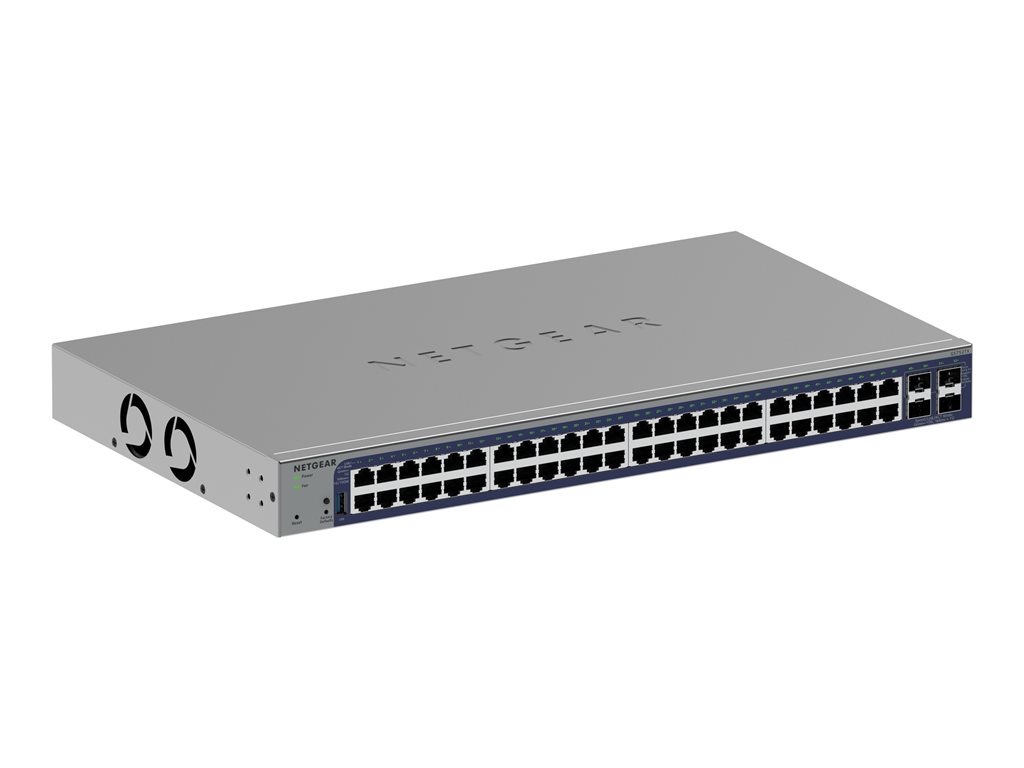

Switch - 2+/L3 Lite - smart - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | NETGEAR GS752TXv3 - switch - 48 ports - smart - rack-mountable |
| Device Type | Switch - 48 ports - 2+/L3 Lite - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Packet buffer size: 1.5 MB ¦ Bandwidth: 176 Gbps ¦ Forwarding rate (64?byte packets): 130.94 Mpps |
| Capacity | Virtual interfaces (VLANs): 256 ¦ ARP table: 512 ¦ IGMP multicast groups: 512 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ ACL entries: 100 ¦ DHCP snooping entries: 256 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | Static IP routing, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol | IPv4, IPv6, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 3, CLI, UDP, SNMP 2c, Syslog, HTTP, HTTPS, TFTP, SSH |
| Features | IGMP snooping, MLD snooping, Auto VoIP, EEE, Voice VLAN, GMRP, Private VLAN, 802.1x authentication, GVRP, LLDP-MED, store and forward, WRR, auto video VLAN, MAC based VLAN, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP client, DHCP snooping, DHCP server, DHCP relay, DHCP IPv6 relay, DHCP IPv6 server, ICMP IRDP, MAC lockdown, dynamic ARP protection, DoS protection, QoS, UPnP, port mirroring, cable test |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3z, IEEE 802.1p, IEEE 802.1x |
| Dimensions (WxDxH) | 17.3 in x 10.1 in x 1.7 in |
| Weight | 7.78 lbs |
| Localization | Latin America, North America |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - 2+/L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Packet buffer size: 1.5 MB ¦ Bandwidth: 176 Gbps ¦ Forwarding rate (64?byte packets): 130.94 Mpps |
| Capacity | Virtual interfaces (VLANs): 256 ¦ ARP table: 512 ¦ IGMP multicast groups: 512 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ ACL entries: 100 ¦ DHCP snooping entries: 256 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | Static IP routing, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Remote Management Protocol | IPv4, IPv6, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 3, CLI, UDP, SNMP 2c, Syslog, HTTP, HTTPS, TFTP, SSH |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
| Authentication Method | RADIUS, TACACS+ |
| Features | IGMP snooping, MLD snooping, Auto VoIP, EEE, Voice VLAN, GMRP, Private VLAN, 802.1x authentication, GVRP, LLDP-MED, store and forward, WRR, auto video VLAN, MAC based VLAN, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP client, DHCP snooping, DHCP server, DHCP relay, DHCP IPv6 relay, DHCP IPv6 server, ICMP IRDP, MAC lockdown, dynamic ARP protection, DoS protection, QoS, UPnP, port mirroring, cable test |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3z, IEEE 802.1p, IEEE 802.1x |
| Processor | 1 x ARM A55: 800 MHz |
| RAM | 512 MB DDR SDRAM |
| Flash Memory | 64 MB |
| Built-in Devices | 2 x fans |
| Status Indicators | Link/activity/speed, fan |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10GBase-X SFP+ ¦ USB management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ Technical support - phone consulting - 90 days ¦ Advanced technical support - lifetime - response time: 24 hours / 7 days |
| Miscellaneous | |
| Included Accessories | Power cord, mounting brackets, rubber caps, rubber feet |
| Rack Mounting Kit | Included |
| MTBF | 346,910 hours |
| Compliant Standards | CSA, RCM, FCC Class A certified, ICES Class A, VCCI, KC, BSMI, UKCA, CB |
| Localization | Latin America, North America |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Consumption Stand by | 16 Watt |
| Software / System Requirements | |
| Software Included | NETGEAR Insight (1 year subscription) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 7.78 lbs |
