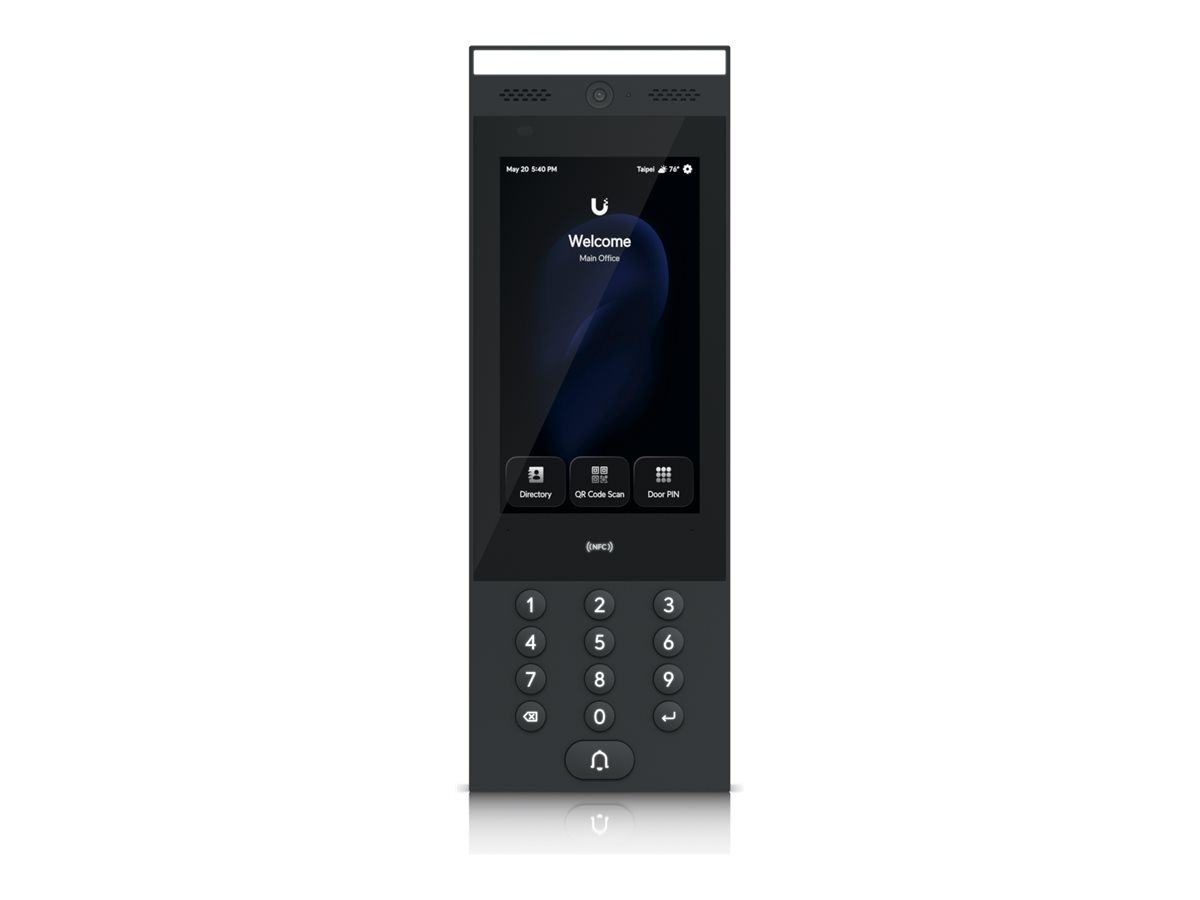

IP intercom station - with camera - wired, wireless - NFC, Bluetooth 4.2 - 13.56 MHz - 10/100/1000 Ethernet
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi G3 - IP intercom station - NFC, Bluetooth 4.2 |
| Product Type | IP intercom station - with camera |
| Environment | Indoor, outdoor |
| Placing / Mounting | Wall-mounting |
| Functions | Doorbell, intercom, access control |
| Integrated Sensors | Proximity sensor, ambient light sensor |
| Integrated Components | Display, speaker, camera, NFC reader, microphone |
| Power Source | PoE |
| Card Technology | HID MIFARE Classic, HID MIFARE DESFire, Sony FeliCa |
| Connectivity | Wired, wireless - NFC, Bluetooth 4.2 - 10/100/1000 Ethernet |
| Frequency Band | 13.56 MHz |
| Display | 7" Yes |
| Dimensions (WxDxH) | 4.5 in x 1.1 in x 12.8 in |
| General | |
| Product Type | IP intercom station - with camera |
| Environment | Indoor, outdoor |
| Functions | Doorbell, intercom, access control |
| Integrated Components | Display, speaker, camera, NFC reader, microphone |
| Integrated Sensors | Proximity sensor, ambient light sensor |
| Power Source | PoE |
| Placing / Mounting | Wall-mounting |
| Connectivity Technology | Wired, wireless - Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 4.2, NFC |
| Card Technology | HID MIFARE Classic, HID MIFARE DESFire, Sony FeliCa |
| Frequency Band | 13.56 MHz |
| Display | 7" |
| Display Resolution | 1024 x 600 pixels |
| Touchscreen | Yes |
| Interfaces Details | LAN/power |
| Features | Weatherproof, two-way communication, mobile unlock, capacitive touch screen, reset button, portrait mode, PIN code authorization, PoE, Edge Control Protocol (ECP) |
| Miscellaneous | |
| Included Accessories | Wall mount bracket |
| Product Material | Polycarbonate, aluminum alloy, glass |
| Voltage Required | DC 48 V |
| Power Consumption Operational | 13 Watt |
| Compliant Standards | IP65, NDAA, UL 294, FCC, IC, CAN/ULC 60839-11-1 |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 1.1 in |
| Height | 12.8 in |
| Weight | 34.04 oz |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Compatible Application | Apple Touch Pass |
