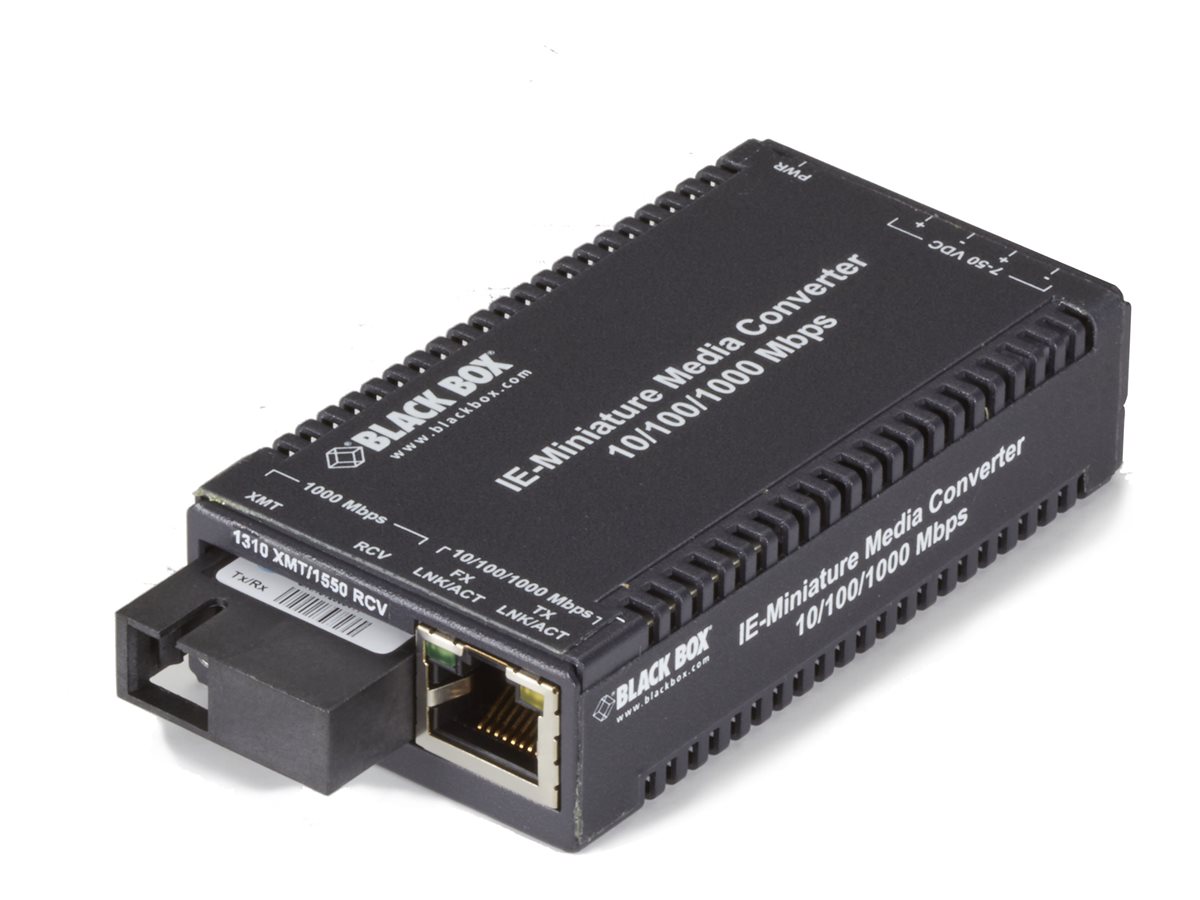

Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 100Base-FX, 1000Base-T, 1000Base-SX, 1000Base-LX - RJ-45 / SC single-mode - up to 6.2 miles - 1310 / 1550 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Black Box MultiPower Miniature - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SC single-mode |
| Form Factor | Desktop / DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX, 1000Base-T, 1000Base-SX, 1000Base-LX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 / 1550 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 6.2 miles |
| Power Over Ethernet (PoE) | PoE |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 1.8 in x 3.3 in x 0.8 in |
| Weight | 11.22 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Desktop / DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female ¦ 1 x power - 4 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | DIN-rail clip |
| Compliant Standards | EN 62368, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX, 1000Base-T, 1000Base-SX, 1000Base-LX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 / 1550 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Link Fault Pass-Through (LFPT) support, temperature hardened, auto-uplink (auto MDI/MDI-X), metal housing, rugged, Store-and-forward technology, Auto Negotiation, broadcast storm protection, Jumbo Frames support (up to 1916 bytes) |
| Compliant Standards | IEEE 802.3af, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 3.3 in |
| Height | 0.8 in |
| Weight | 11.22 oz |
