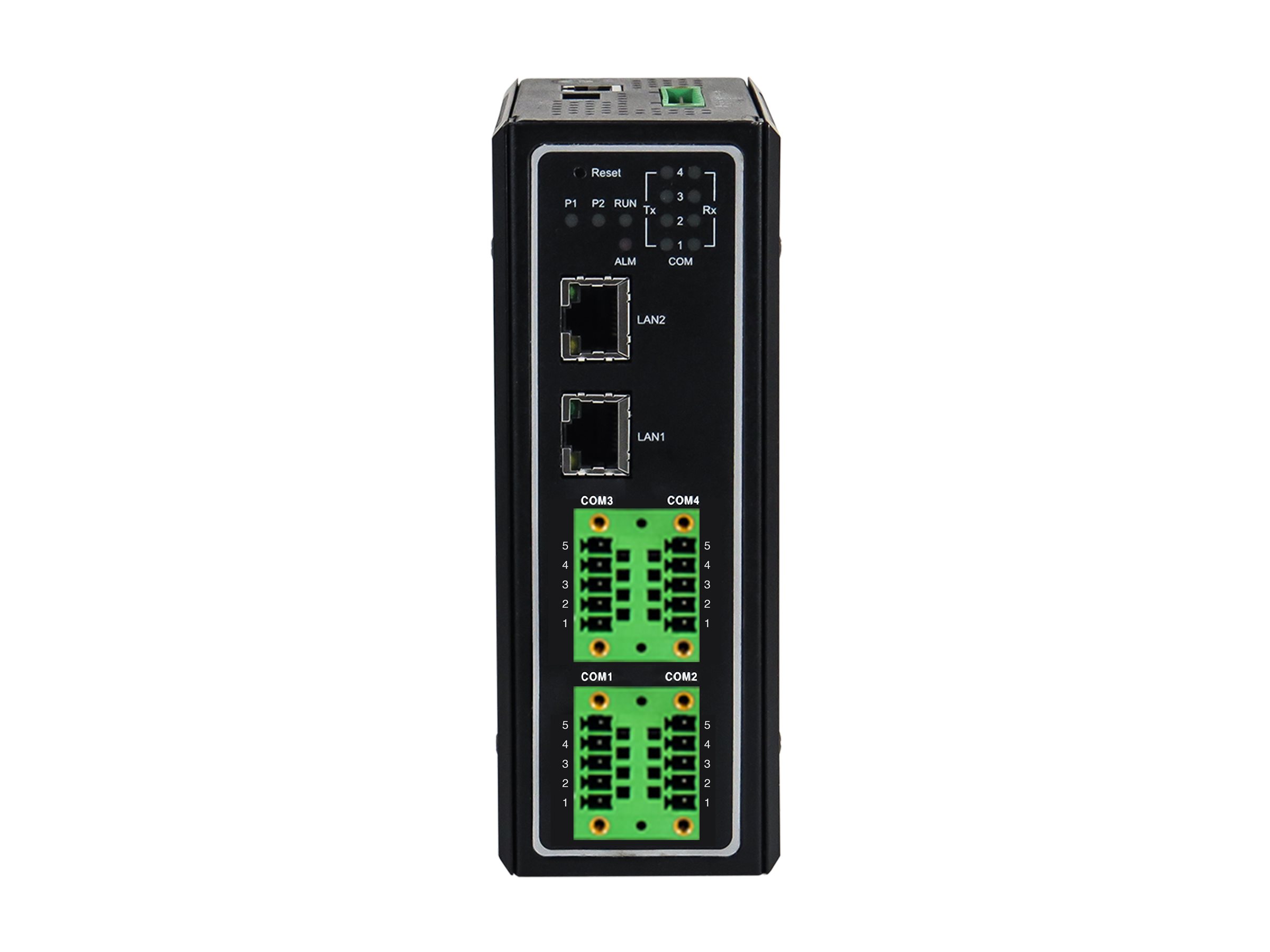

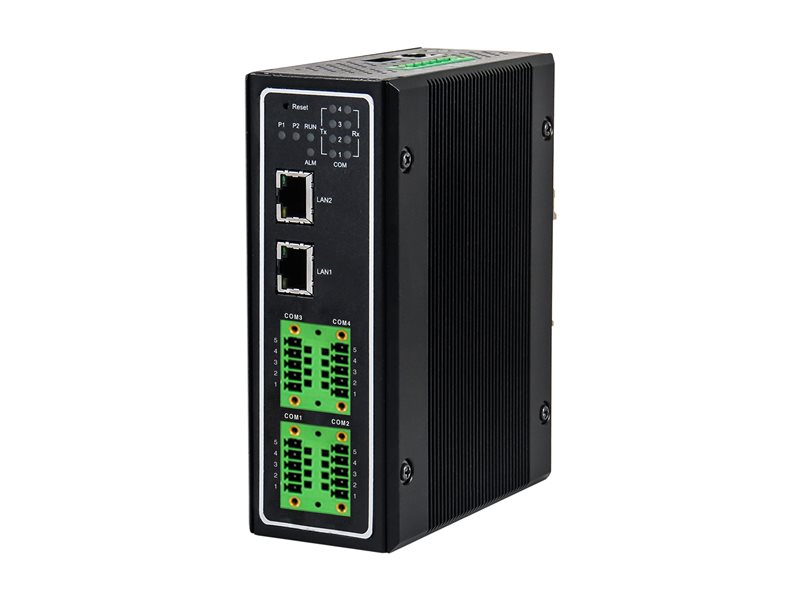

Device server - 4 ports - RS-232, RS-422, RS-485, 100Mb LAN - wall / DIN rail mountable
| Main Specifications | |
|---|---|
| Product Description | Black Box Industrial Serial Device Server - device server |
| Device Type | Device server |
| Form Factor | Wall / DIN rail mountable |
| Ports Qty | 4 |
| Data Link Protocol | RS-232, RS-422, RS-485, Ethernet, Fast Ethernet |
| Dimensions (WxDxH) | 0.8 in x 1.8 in x 3.4 in |
| Weight | 11.18 oz |
| General | |
| Device Type | Device server |
| Width | 0.8 in |
| Depth | 1.8 in |
| Height | 3.4 in |
| Weight | 11.18 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x 10/100Base-T - RJ-45 ¦ 4 x RS-232/422/485 - terminal block |
| Miscellaneous | |
| Cables Included | 1 x DB-9 to DB-25 cable - 6 ft |
| MTBF | 109,243 hours |
| Compliant Standards | FCC Class A certified, UL, cUL, NEMA TS-2 |
| Networking | |
| Form Factor | Wall / DIN rail mountable |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921 Kbps |
| Data Link Protocol | RS-232, RS-422, RS-485, Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, PPTP |
| Remote Management Protocol | Telnet |
| Status Indicators | Power, transmit, link/activity, receive |
| Features | Industrial EMC protection, RTSP support |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
