Industrial Series - label printer - direct thermal / thermal transfer - Roll (4.5 in) - 300 dpi - up to 840.9 inch/min - USB 2.0, serial, Gigabit LAN, USB host, Bluetooth 4.0, Wi-Fi(ax), NFC - tear bar
| Main Specifications | |
|---|---|

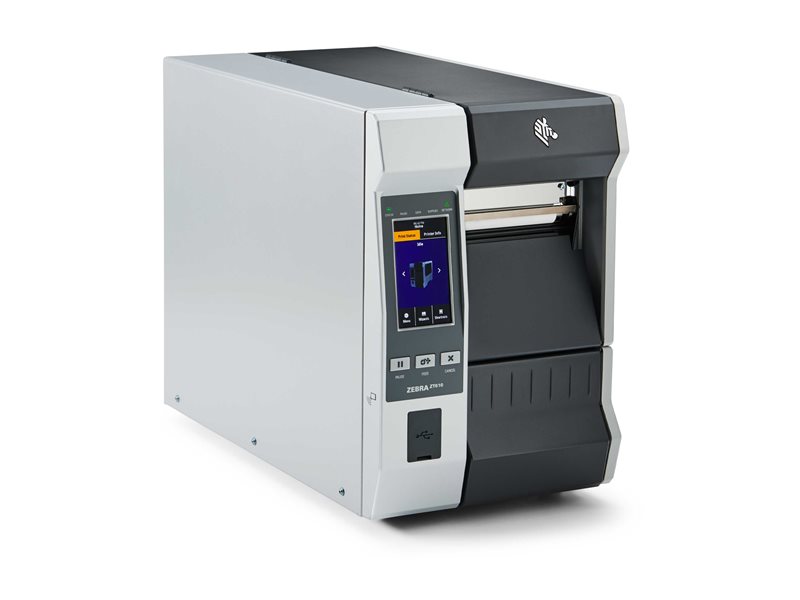

| Product Description | Zebra ZT6 Series ZT610 - Industrial Series - label printer - B/W - direct thermal / thermal transfer |
| Printer Type | Label printer - direct thermal / thermal transfer - B/W |
| Weight | 50.04 lbs |
| Localization | United States |
| Max Media Size | Roll (4.5 in) |
| Min Media Size (Custom) | 0.79 in |
| Max Media Size (Custom) | 4.5 in |
| Print Speed | Up to 840.9 inch/min - max speed |
| Max Resolution (B&W) | 300 dpi |
| Interface | USB 2.0, serial, Gigabit LAN, USB host, Bluetooth 4.0, Wi-Fi(ax), NFC |
| Processor | A9 800 MHz |
| RAM Installed (Max) | 1 GB SDRAM |
| Flash Memory Installed (Max) | 2 GB |
| Language Simulation | ZPL, ZPL II, Extensible Mark-up Language (XML) |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5, EAN-8, EAN-13, MSI, RSS-14 |
| Media Type | Continuous labels, die cut labels |
| Fonts | CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Styles & Effects | Mirror, rotated text |
| Features | Realtime clock, transmissive media sensor, reflective media sensor, tear bar |
| Display Resolution | 240 x 320 |
| Networking | Print server |
| Dimensions (WxDxH) | 10.6 in x 19.9 in x 15.6 in |
| General | |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Localization | United States |
| Expansion / Connectivity | |

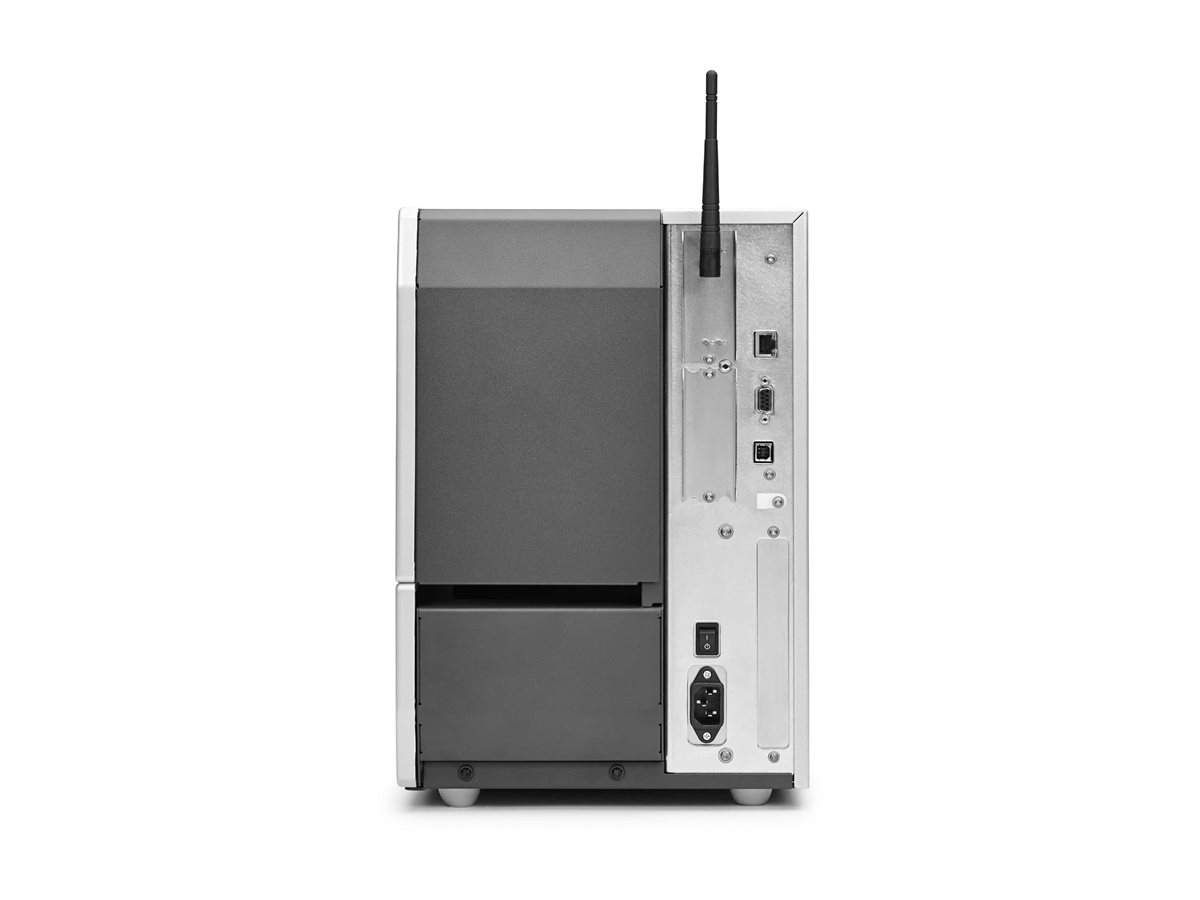

| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 ¦ 2 x USB host - 4 pin USB Type A |
| Miscellaneous | |
| Included Accessories | Bi-fold door |
| Features | Clear door |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, CCC, KCC, S Mark, cTUVus, INMETRO, CU |
| Printer | |
| Print Speed | Up to 840.9 inch/min - max speed |

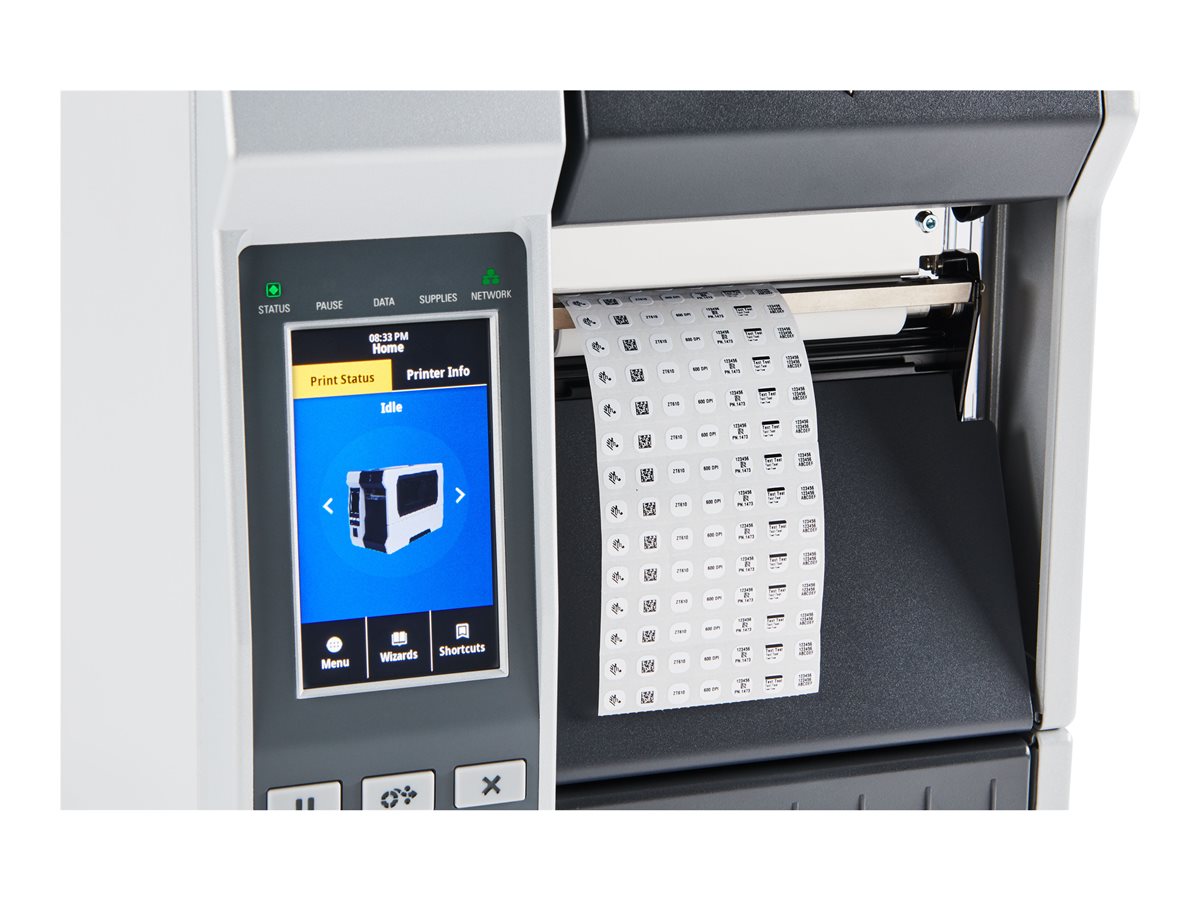

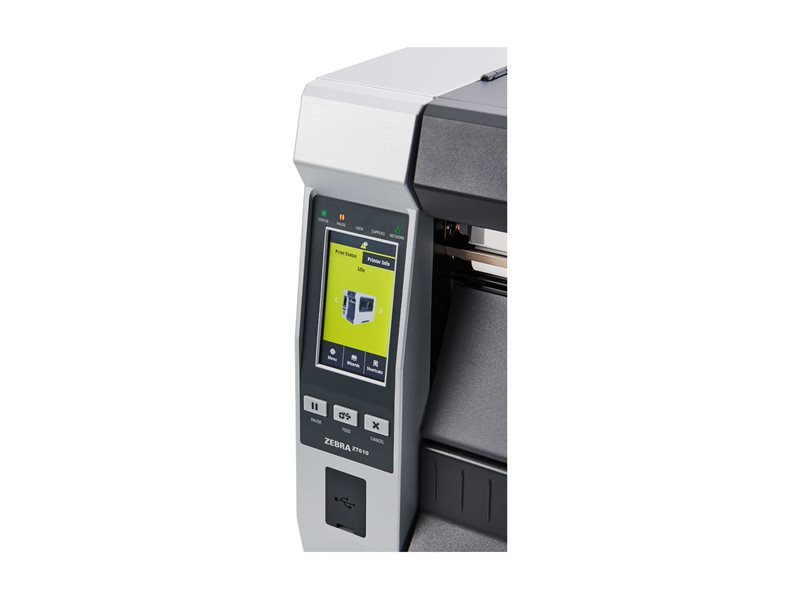

| Built-in Devices | 4.3 inch LCD touch screen |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, serial, Gigabit LAN, USB host, Bluetooth 4.0, Wi-Fi(ax), NFC |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL, ZPL II, Extensible Mark-up Language (XML) |
| Fonts | CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Styles & Effects | Mirror, rotated text |
| Features | Realtime clock, transmissive media sensor, reflective media sensor, tear bar |
| Display Resolution | 240 x 320 |
| Fonts Included | 16 x bitmapped ¦ 2 x scalable |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5, EAN-8, EAN-13, MSI, RSS-14 |
| Processor | |
| Processor | A9 800 MHz |
| RAM | |
| RAM Installed (Max) | 1 GB |
| Technology / Form Factor | SDRAM |
| Media Handling | |
| Media Type | Continuous labels, die cut labels |
| Max Media Size | Roll (4.5 in) |
| Min Media Size (Custom) | 0.79 in |
| Max Media Size (Custom) | 4.5 in |
| Media Sizes | Roll (0.79 in - 4.49 in) |
| Max Printing Width | 4.09 in |
| Max Printing Length | 100 in |
| Media Thickness Range | 0.0023 in - 0.01 in |
| Roll Maximum Outer Diameter | 8 in |
| Roll Core Diameter | 3 in |
| Media Feeders | 1 x manual - 1 roll - Roll (4.5 in) |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply - internal |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Flash Memory | |
| Flash Memory | 2 GB |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 19.9 in |
| Height | 15.6 in |
| Weight | 50.04 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
