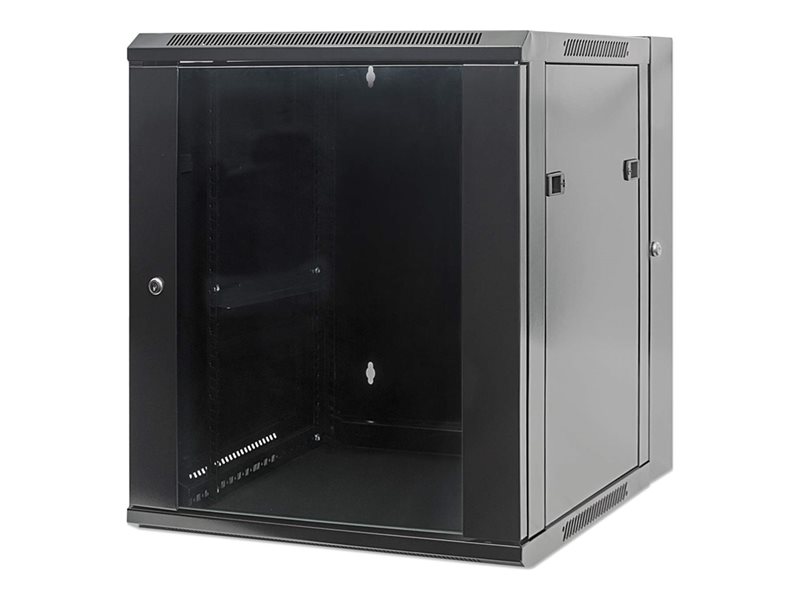

Cabinet - double section, 550 mm (21.7") depth, assembled - wall mountable - RAL 9004, black - 12U - 19"
| Main Specifications | |
|---|---|
| Product Description | Intellinet - cabinet - double section, 550 mm (21.7") depth, assembled - 12U |
| Product Type | Cabinet - double section, 550 mm (21.7") depth, assembled |
| Placing / Mounting | Wall mountable |
| Color | RAL 9004, black |
| Rack Size | 19" |
| Height (Rack Units) | 12U |
| Product Material | Cold-rolled galvanized SPCC steel, tempered glass |
| Dimensions (WxDxH) | 23.6 in x 21.7 in x 25 in |
| Weight | 55.12 lbs |
| Features | 1.2 mm thickness, 180° door opening, assembled, double section, removable side panels, reversible front door, lockable front door |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Cabinet - double section, 550 mm (21.7") depth, assembled |
| Placing / Mounting | Wall mountable |
| Product Material | Cold-rolled galvanized SPCC steel, tempered glass |
| Rack Size | 19" |
| Height (Rack Units) | 12U |
| Width | 23.6 in |
| Depth | 21.7 in |
| Height | 25 in |
| Weight | 55.12 lbs |
| Shipping Dimensions (WxDxH) / Weight | 57.32 lbs |
| Inner Dimensions | 16.7 in |
| Color | RAL 9004, black |
| Finish | Antistatic powder coat |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 3 years |
| Miscellaneous | |
| Weight Limit | 66 lbs |
| Features | 1.2 mm thickness, 180° door opening, assembled, double section, removable side panels, reversible front door, lockable front door |
| Compliant Standards | IP20, ANSI/EIA-RS-310-D, DIN 41494 Part 1, DIN 41494 Part 7, IEC 60297-2 |
