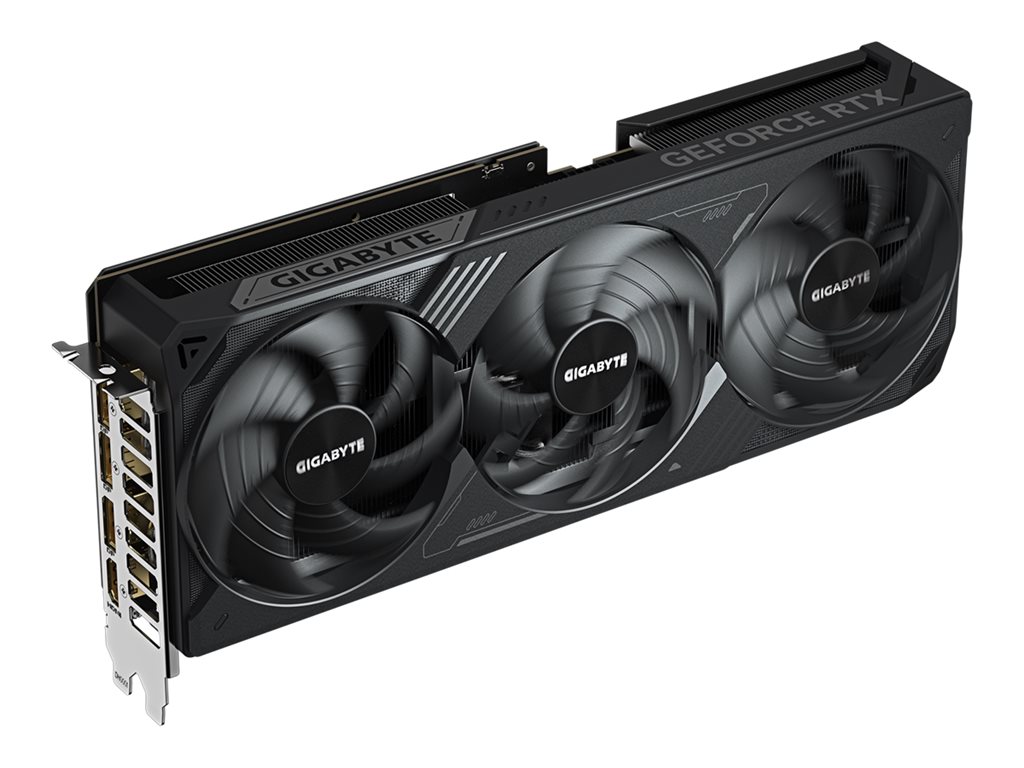

Graphics card - GeForce RTX 5070 Ti - 16 GB GDDR7 - PCI Express 5.0 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G - graphics card - GeForce RTX 5070 Ti - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Memory | 16 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 2 in x 12 in x 5 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Features | GIGABYTE WINDFORCE cooling design, Triple Fan Design, Dual Bios, NVIDIA GeForce SFF-Ready, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex, Nvidia Studio |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 256-bit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 3 x 8 pin to 12VHPWR cable, graphics card holder |
| Compliant Standards | DisplayPort 2.1a |
| Width | 2 in |
| Depth | 12 in |
| Height | 5 in |
| System Requirements | |
| Required Power Supply | 750 W |
| Additional Requirements | 16 pin PCI Express power connector |
