Network/power extender - 1GbE - 10Base-T, 100Base-TX, 1000Base-T - 1 ports - RJ-45 / RJ-45 - up to 984 ft - TAA Compliant
| Main Specifications | |
|---|---|

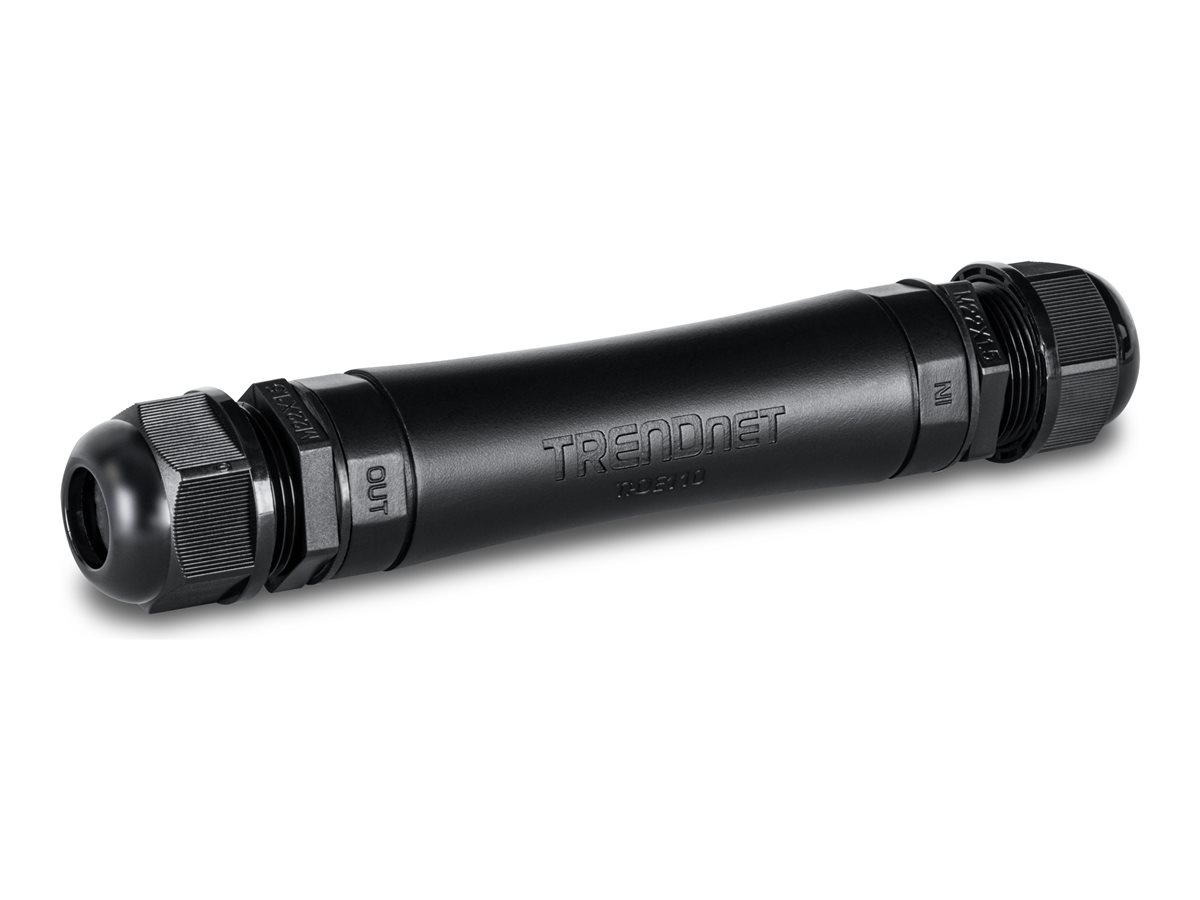

| Product Description | TRENDnet TI-OE110 - network/power extender - 1GbE, 100Mb LAN, 10Mb LAN - TAA Compliant |
| Device Type | Network/power extender - RJ-45 / RJ-45 |
| Ports Qty | 1 |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 1GbE, 100Mb LAN, 10Mb LAN |
| Max Transfer Distance | 984 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 9.8 in x 6.5 in x 1 in |
| Weight | 3.39 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network/power extender |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T (input) - RJ-45 ¦ 1 x Ethernet 1000Base-T (output) - RJ-45 - 15.4 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x cable gland |
| MTBF | 2,517,107 hours |
| Compliant Standards | NDAA, IP67, FCC, LVD, IEC 60068-2-27, IEC 60068-2-31, IEC 60068-2-6 |
| TAA Compliant | Yes |
| Networking | |
| Ports Qty | 1 |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 1GbE, 100Mb LAN, 10Mb LAN |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 984 ft |
| Features | 15.4 W PoE power budget, half/full duplex mode, 6KV Surge protection, daisy-chaining support, compact, LED status indicators, waterproof |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Consumption Operational | 1.71 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | Up to 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.8 in |
| Depth | 6.5 in |
| Height | 1 in |
| Weight | 3.39 oz |
