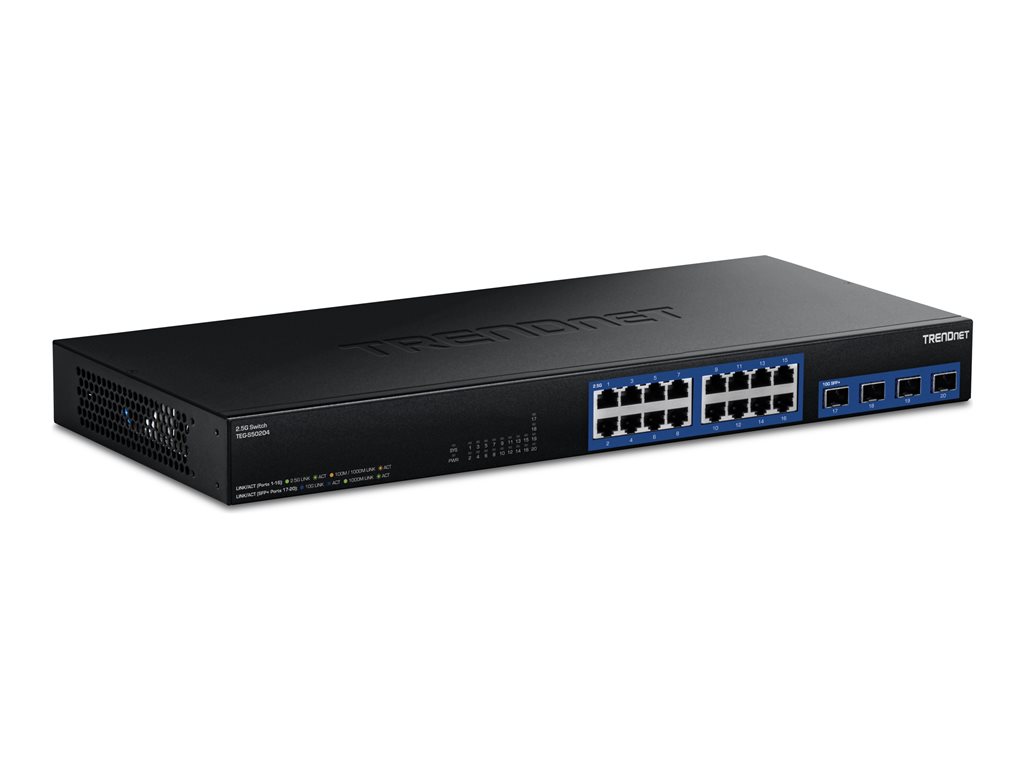

Version V1.xR - switch - unmanaged - 16 x 10/100/1000/2.5G + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable, wall-mountable, desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG-S50204 - Version V1.xR - switch - 20 ports - unmanaged - rack-mountable - TAA Compliant |
| Device Type | Switch - 20 ports - unmanaged |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 16 x 10/100/1000/2.5G + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 160 Gbps ¦ Forwarding performance (64-byte packet size): 119.04 Mpps |
| Capacity | RAM buffer: 2 MB |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12KB |
| Features | Cat 5e, LED status indicators, fanless, half duplex mode, full duplex mode, VLAN passthrough, metal housing |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz |
| Power | AC 90-264 V (47/63 Hz) |
| Dimensions (WxDxH) | 17.3 in x 7.7 in x 1.7 in |
| Weight | 6.37 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 20 ports - unmanaged |
| Enclosure Type | Rack-mountable, wall-mountable, desktop 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 16 x 10/100/1000/2.5G + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 160 Gbps ¦ Forwarding performance (64-byte packet size): 119.04 Mpps |
| Capacity | RAM buffer: 2 MB |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12KB |
| Features | Cat 5e, LED status indicators, fanless, half duplex mode, full duplex mode, VLAN passthrough, metal housing |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz |
| Status Indicators | System, power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 16 x 10/100/1000/2.5G RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Power cable (1.5 m) |
| Rack Mounting Kit | Included |
| MTBF | 394,000 hours |
| Compliant Standards | NDAA, FCC, LVD |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 3 A |
| Voltage Required | AC 90-264 V (47/63 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 7.7 in |
| Height | 1.7 in |
| Weight | 6.37 lbs |
