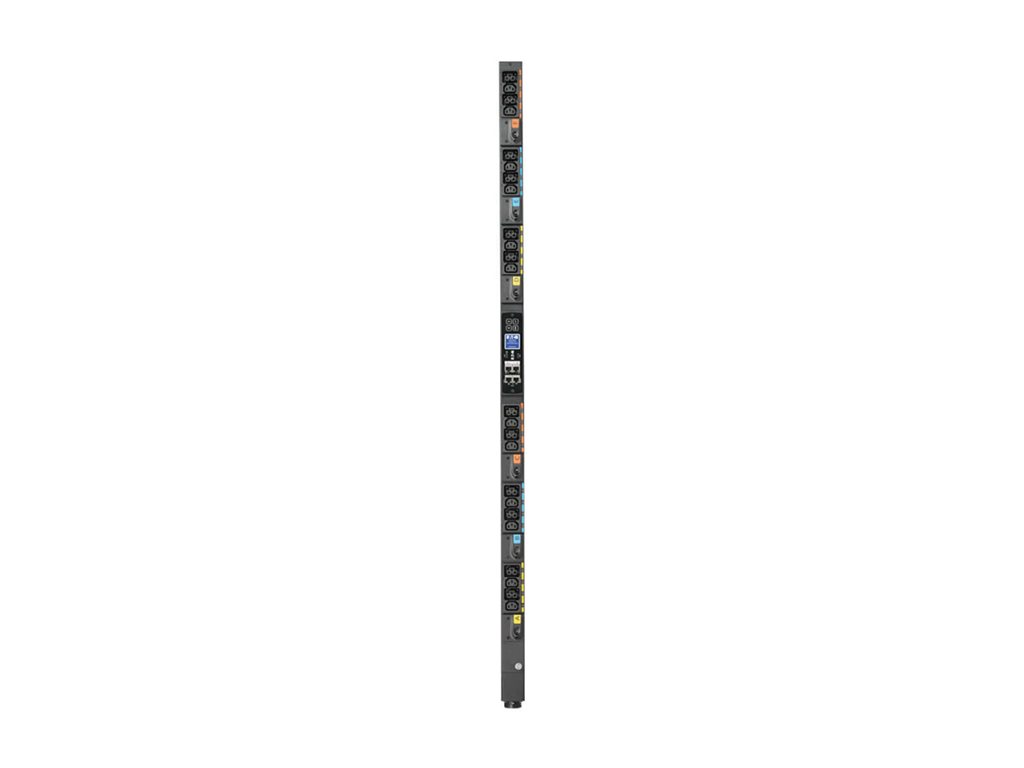

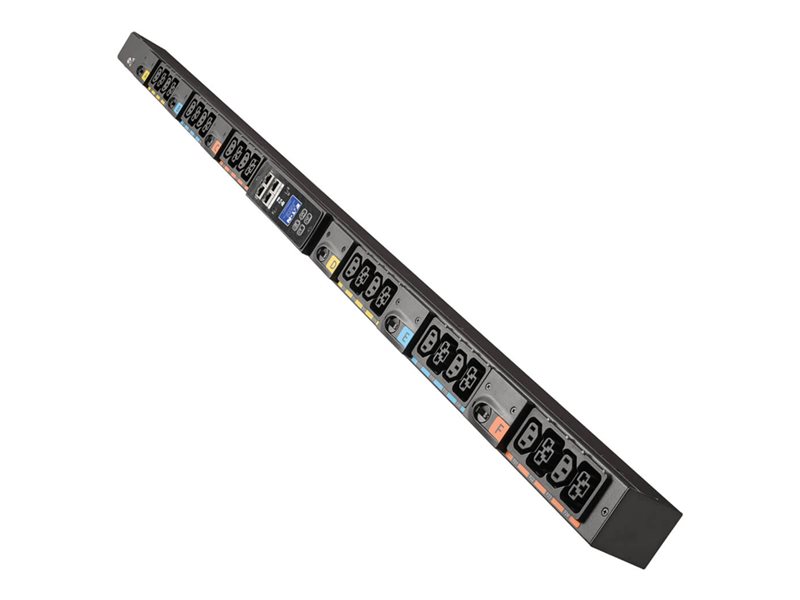

Power distribution unit (rack-mountable) - metered outlet - 23 kW - Ethernet, serial - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C39) - 0U - black
| Main Specifications | |
|---|---|
| Product Description | Eaton - power distribution unit - metered outlet - 23 kW |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Weight | 11.02 lbs |
| Power Capacity | 23 kW |

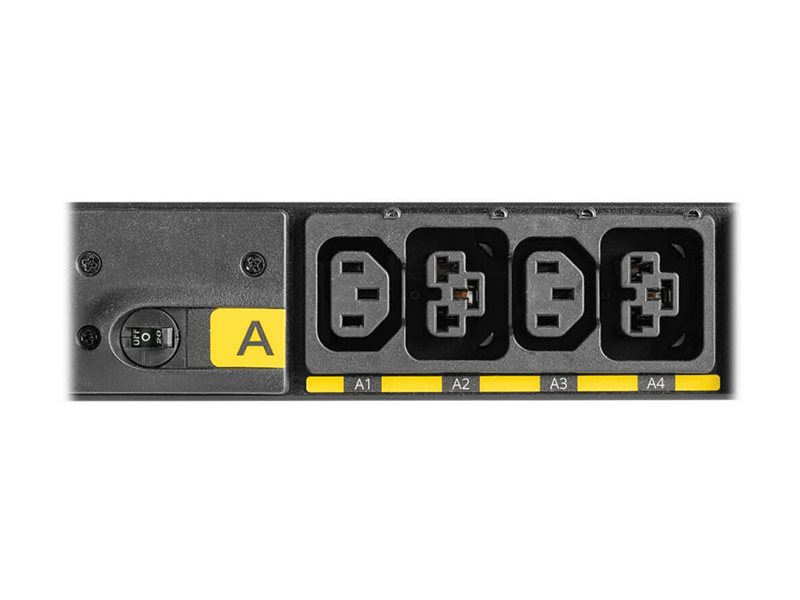

| Output connectors | 12 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C39 |
| Networking | Ethernet, serial |
| Remote Management Protocol | SNMP |
| Color | Black |
| Dimensions (WxDxH) | 2 in x 55.9 in x 2.6 in |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Color | Black |
| Miscellaneous | |
| Cables Included | Power cable |
| Features | Three-phase, LED status indicators, front cable entry, vertical mount, aluminum housing |
| Compliant Standards | cTUVus, IEC 62368-1, IEC 62443-4-2, UL 62368-1 |
| Networking | |
| Remote Management Interface | Ethernet, serial |
| Remote Management Protocol | SNMP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage Range | AC 240/415 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 12 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C39 |
| Max Electric Current | 63 A |
| Power Capacity | 23 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 55.9 in |
| Height | 2.6 in |
| Weight | 11.02 lbs |
