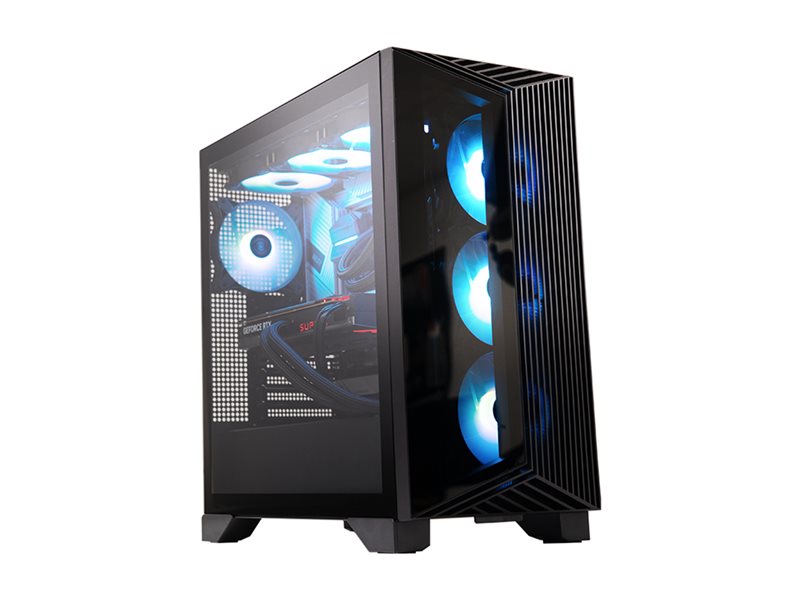

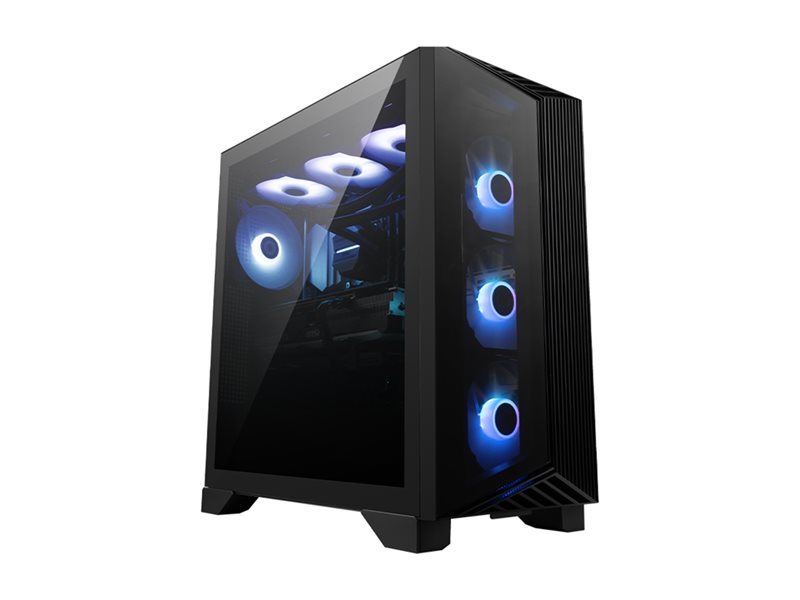

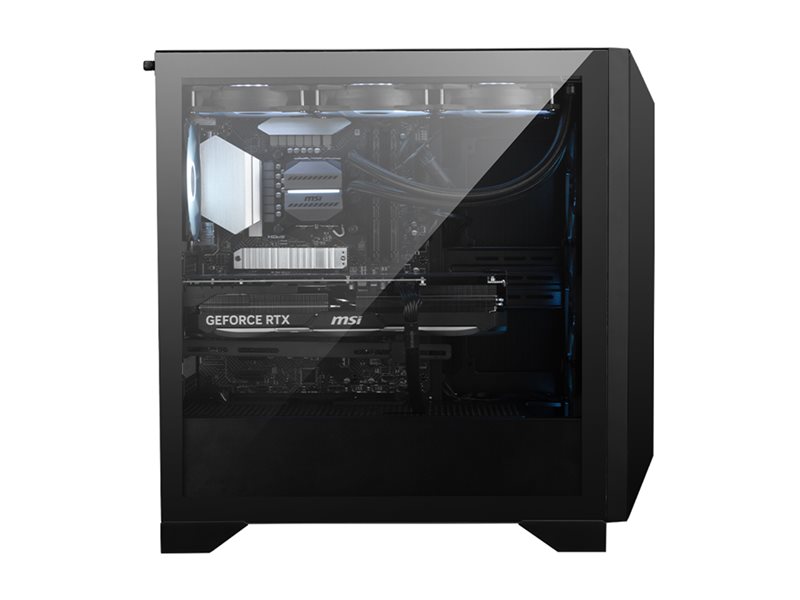

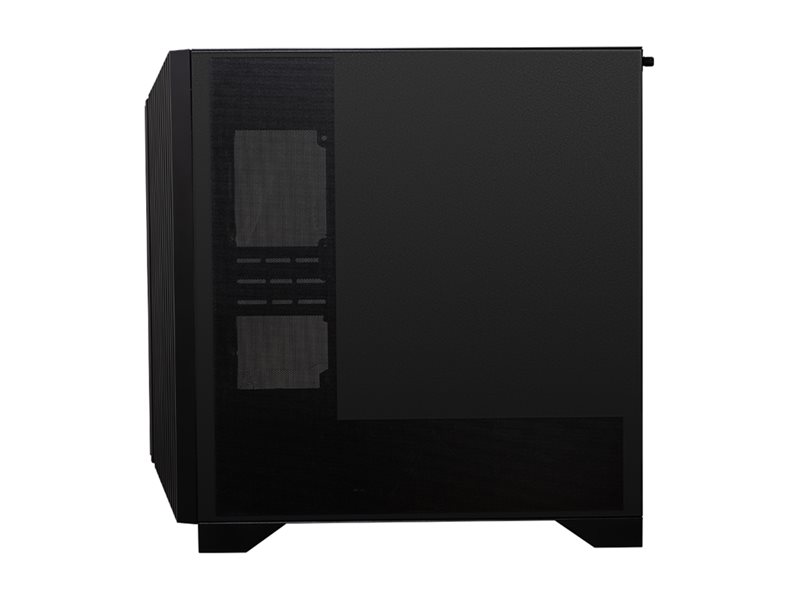

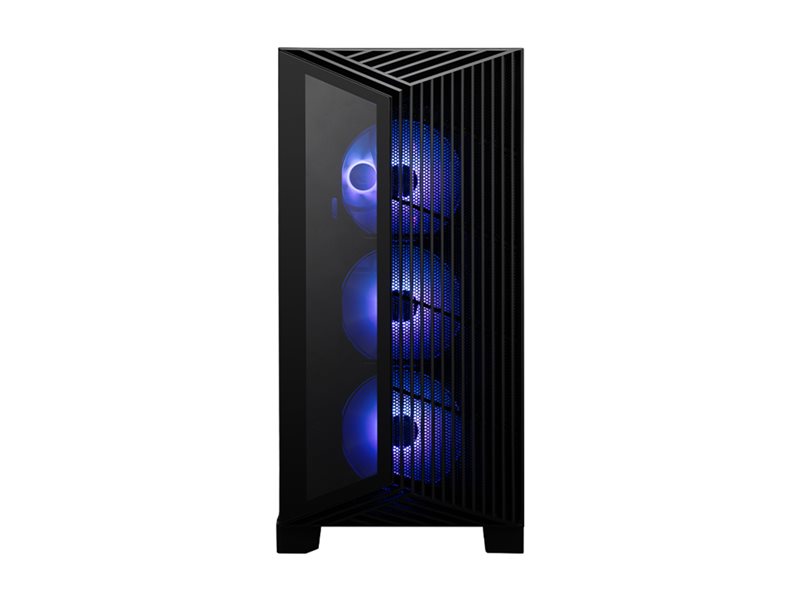

Tower gaming - Core i7 i7-14700KF / up to 5.6 GHz - RAM 32 GB - SSD 2 TB - NVMe - GeForce RTX 4070 Super - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Home - monitor: none
| Main Specifications | |
|---|---|
| Product Description | MSI Aegis RS2 A14NVP7 1461US - tower Core i7 i7-14700KF 3.4 GHz - 32 GB - SSD 2 TB |
| Type | Personal computer - tower |
| Processor | Intel Core i7 (14th Gen) i7-14700KF / 3.4 GHz (up to 5.6 GHz, (20-core) |
| Processor Socket | LGA1700 Socket |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 33 MB |
| Cache Per Processor | 33 MB |
| RAM | 32 GB DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 2 TB - PCI Express 4.0 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA GeForce RTX 4070 SUPER |
| Video Memory | 12 GB GDDR6X SDRAM |
| CUDA Cores Qty | 7168 |
| Gaming | Yes |
| Audio Output | 7.1 channel surround |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Wi-Fi 6, Bluetooth, Wi-Fi 7 |
| OS Provided | Windows 11 Home |
| Dimensions (WxDxH) | 9.1 in x 19 in x 19.4 in |
| Weight | 26.9 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | Tower |
| Built-in Devices | Liquid cooling system with 360 mm radiator |
| Gaming | Yes |
| Expansion / Connectivity | |
| Slots | 4 (total) / 3 (free) x PCIe x16 ¦ 2 (total) / 2 (free) x PCIe x1 ¦ 2 (total) / 1 (free) x PCIe 4.0 (for SSD) |
| Interfaces | 5 x USB 3.2 Gen 1 (1 front, 4 rear) ¦ 2 x USB-C 3.2 Gen 2x2 (1 front, 1 rear) ¦ 2 x USB 2.0 (2 rear) ¦ 2 x microphone - mini-jack (1 front, 1 rear) ¦ 2 x audio line-out - mini-jack (1 front, 1 rear) ¦ 4 x DisplayPort (4 rear) ¦ 2 x HDMI (2 rear) ¦ 1 x audio line-in (center/subwoofer) - mini-jack (1 rear) ¦ 1 x audio line-out (rear) - mini-jack (1 rear) ¦ 1 x audio line-in - mini-jack (1 rear) ¦ 1 x SPDIF output (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x PS/2 keyboard / mouse (1 rear) ¦ 2 x antenna (2 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Gaming | Yes |
| RAM | |
| Installed Size | 32 GB |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MHz |
| Rated Memory Speed | 5600 MHz |
| Form Factor | DIMM 288-pin |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Power | |
| Device Type | Power supply |
| Power Provided | 750 watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| Cache Memory | |
| Installed Size | 33 MB |
| Cache Per Processor | 33 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA GeForce RTX 4070 SUPER |
| Video Memory | 12 GB GDDR6X SDRAM |
| CUDA Cores Qty | 7168 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Home |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 2 TB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 9.1 in |
| Depth | 19 in |
| Height | 19.4 in |
| Weight | 26.9 lbs |
| Keyboard | |
| Interface | USB |
| Mouse | |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i7 (14th Gen) i7-14700KF |
| Clock Speed | 3.4 GHz (P-core) / 2.5 GHz (E-core) |
| Max Turbo Speed | 5.6 GHz (P-core) / 4.3 GHz (E-core) |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel Z790 |
| Motherboard Name | MSI Z790 PRO WIFI |
