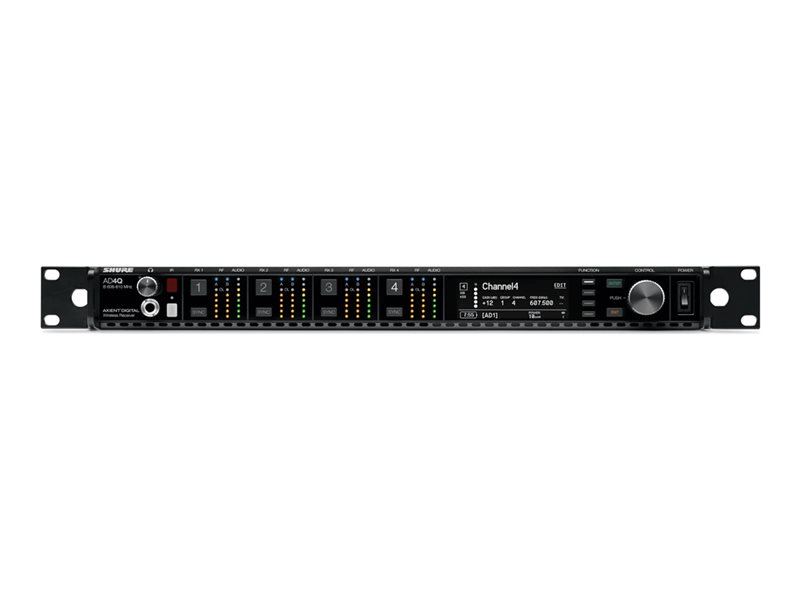

Wireless audio receiver for wireless microphone system - four-channel - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Shure AD4Q - wireless audio receiver for wireless microphone system - four-channel - TAA Compliant |
| Product Type | Wireless audio receiver |
| Intended For | Wireless microphone system |
| Package Content | Wireless audio receiver, hardware kit, BNC bulkhead adapter, 2 x 1/2 wave antennas, BNC cable (long), BNC cable (short), coaxial RF cable, Ethernet cable (91 cm), Ethernet jumper cable |
| Product Material | Steel, extruded aluminum |
| Dimensions (WxDxH) | 19 in x 13.1 in x 1.7 in |
| Weight | 10.58 lbs |
| Compatible Software | Wireless Workbench, ShurePlus Channels |
| TAA Compliant | Yes |
| General | |
| Product Type | Wireless audio receiver |
| Intended For | Wireless microphone system |
| Max Operating Distance | 328 ft |
| Compatible Software | Wireless Workbench, ShurePlus Channels |
| Frequency Range | 925 - 960 MHz |
| Frequency Response | 20 - 20000 Hz |
| Controls | Volume knob, channel selector, sync button |
| Package Content | Wireless audio receiver, hardware kit, BNC bulkhead adapter, 2 x 1/2 wave antennas, BNC cable (long), BNC cable (short), coaxial RF cable, Ethernet cable (91 cm), Ethernet jumper cable |
| Product Material | Steel, extruded aluminum |
| Width | 19 in |
| Depth | 13.1 in |
| Height | 1.7 in |
| Weight | 10.58 lbs |
| Miscellaneous | |
| Compliant Standards | AES-256, FCC Part 15, IEC 60065, 2012/19/EU, RoHS 2015/863/EU |
| Power Source | DC power adapter |
| TAA Compliant | Yes |
| Connections | |
| Connections | 4 x balanced audio output - XLR ¦ 4 x balanced audio output - phone 6.35 mm ¦ 4 x network - RJ-45 ¦ RF input - BNC |
