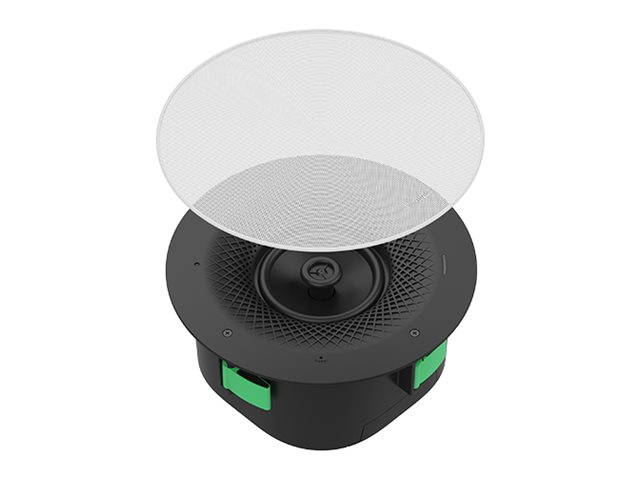

IP speaker - for conference system - 20 Watt - 2-way - coaxial - white (grille color - white)
| Main Specifications | |
|---|---|
| Product Description | Yealink CS10-D - IP speaker - for conference system |
| Product Type | IP speaker - for conference system |
| Speaker Type | Coaxial - 2-way - active |
| Continuous Power | 20 watt |
| Peak Power | 24 watt |
| Nominal Impedance | 8 ohm |
| Amplifier | Integrated |
| Color | White |
| General | |
| Product Type | IP speaker - for conference system |
| Features | Speech enhancement, Dante audio transmission protocol |
| Enclosure Color | White |
| Enclosure Material | Aluminum alloy, PC/ABS welded SPCC, polyamide with 15% GF, PC/ABS, SGCC |
| Grille Color | White |
| Miscellaneous | |
| Included Accessories | Magnetic speaker grille, mounting bracket, dust cover, screws, bracing bridge |
| Compliant Standards | Microsoft Teams certified, UL 2043, IEEE 802.3at, PoE+ Class 4 |
| Power | |
| Power Source | Power over Ethernet (PoE) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Min Storage Temperature | 32 °F |
| Max Storage Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
| Connections | |
| Connector Type | Network (RJ-45) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | With cover mesh: 5 in Diameter 11.6 in / 7.3 oz ¦ Without cover mesh: 4.9 in Diameter 11.3 in / 6.2 lbs |
| Speaker System | |
| Speaker Type | Coaxial - 2-way - active |
| Continuous Power | 20 watt |
| Peak Power | 24 watt |
| Frequency Response (-6dB) | 100 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 99 dB |
| Sensitivity | 88 dB |
| Amplifier | Integrated |
| Coverage | 120° |
| Recommended Placing | Ceiling mountable |
| Detachable Grilles | Yes |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 5.7" ¦ Speaker: tweeter driver - 1.1" |
