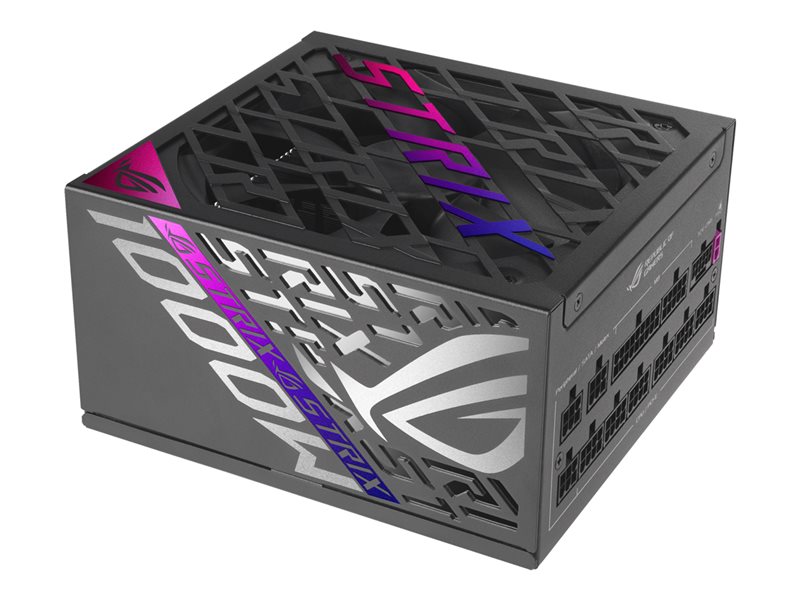

Power supply (internal) - ATX12V 3.1/ EPS12V - 80 PLUS Platinum - 1000 Watt
| Main Specifications | |
|---|---|
| Product Description | ASUS ROG Strix - power supply - 1000 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| 80 PLUS Certification | 80 PLUS Platinum |
| Weight | 3.99 lbs |
| Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power |
| Modular Cable Management | Yes |
| Included Accessories | ROG Strix DIY sticker |
| Dimensions (WxDxH) | 5.9 in x 6.3 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | ROG Strix DIY sticker |
| Cables Included | AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 3.3 ft ¦ 16-pin 12VHPWR power cable 2.5 ft ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 2.5 ft ¦ 2 x 15 pin Serial ATA power modular cable ¦ 4 pin power modular cable |
| MTBF | 120,000 hours |
| Features | Overpower protection, overvoltage protection, undervoltage protection, short-circuit protection, overcurrent protection, overheat protection, ROG heatsink, 0dB fan button, GaN MOSFET, dual ball bearing cooling fan, GPU-FIRST voltage stabilizer, fully modular |
| Compliant Standards | RoHS |
| Power Device | |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 6.3 in |
| Height | 3.4 in |
| Weight | 3.99 lbs |
