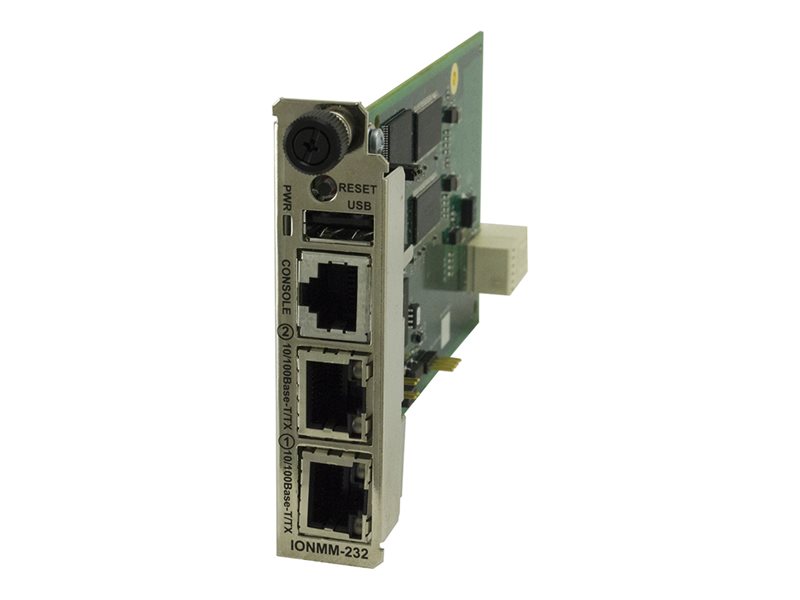

Management module - 100Mb LAN - 10Base-T, 100Base-TX - RJ-45 / RS-232 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix IONMM Series - management module - 10Mb LAN, 100Mb LAN - TAA Compliant |
| Device Type | Management module - RJ-45 / RS-232 |
| Form Factor | Plug-in module |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Remote Management Protocol | TLS, SSH, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP, CLI |
| Dimensions (WxDxH) | 0.9 in x 6.5 in x 3.4 in |
| Weight | 15.87 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Management module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10/100Base-TX - RJ-45 female ¦ 1 x RS-232 (management) - RJ-21 ¦ 1 x USB 2.0 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, EN 55022 Class A, EN55024 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Remote Management Protocol | TLS, SSH, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP, CLI |
| Features | VLAN management, ACL support, SNTP support, web GUI management portal |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.3x, IEEE 802.3 |
| Power | |
| Power Consumption Operational | 2 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.9 in |
| Depth | 6.5 in |
| Height | 3.4 in |
| Weight | 15.87 oz |
