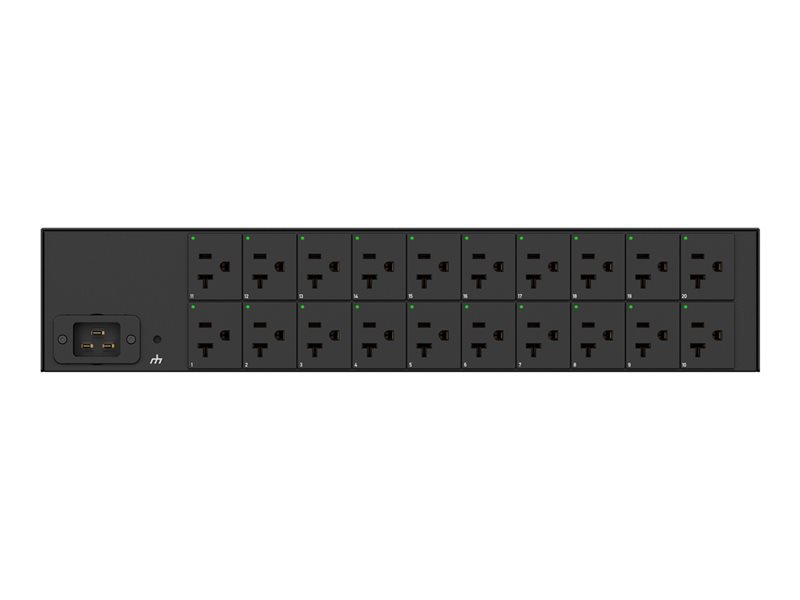

Power distribution unit (rack-mountable) - AC 120 V - 1900 VA - Ethernet 10/100/1000, RS-232, USB - input: 2P3W - output connectors: 20 (NEMA 5-20R) - 2U - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-1407CR-A0 - power distribution unit - 1900 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 2U |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1900 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
| Input Connectors | 1 x power 2P3W |
| Output connectors | 20 x power NEMA 5-20R |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Color | Black powder coat |
| Dimensions (WxDxH) | 17.3 in x 11.5 in x 3.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 2 x management (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Powder-coated, extruded aluminum housing, voltage meter, current meter, crest factor meter, power factor meter, LCD display, metering per input line, environmental sensor ready, cascadable, LED indicators |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power 2P3W |
| Power Output Connectors Details | 20 x power NEMA 5-20R |
| Output Voltage | AC 120 V |
| Max Electric Current | 16 A |
| Power Capacity | 1900 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 11.5 in |
| Height | 3.5 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.8 in |
| Shipping Depth | 17.9 in |
| Shipping Height | 10.4 in |
