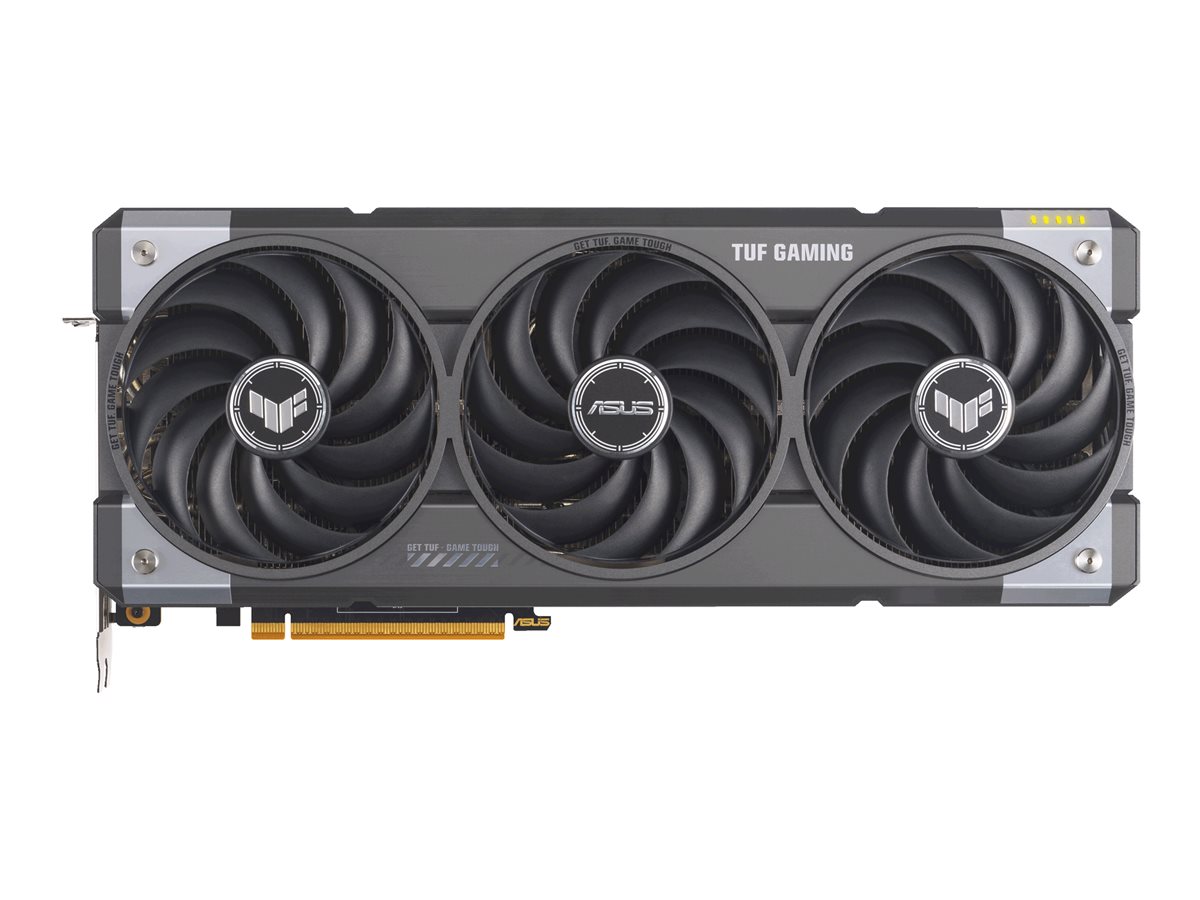

OC Edition - graphics card - Radeon RX 9070 XT - 16 GB GDDR6 - PCI Express 5.0 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ASUS TUF Gaming - OC Edition - graphics card - Radeon RX 9070 XT - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | AMD Radeon RX 9070 XT |
| Memory | 16 GB GDDR6 |
| Memory Speed | 20 Gbps |
| Boost Clock (OC) | 3060 MHz |
| Stream Processors | 4096 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 2.5 in x 13 in x 5.9 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | AMD Radeon RX 9070 XT |
| Boost Clock (OC) | 3060 MHz |
| Stream Processors | 4096 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Features | 3.125-slot Fan Cooler, Triple Fan Design, ASUS AURA SYNC support, moisture resistant, ASUS GPU Guard, AUTO-EXTREME technology, Axial-tech Fan Design, Dual ball Bearing Fans, Dual Bios, MaxContact technology, phase-change thermal pad, reverse airflow, TUF 5K black metallic capacitors, vented exoskeleton, AMD RDNA 4 Architecture, AMD FidelityFX Super Resolution 4 (FSR), AMD HYPR-RX technologies, AMD Radiance Display Engine, AMD Fluid Motion Frames 2, AMD Radeon Anti Lag Technology, AMD Radeon Boost Technology, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 20 Gbps |
| Bus Width | 256-bit |
| Miscellaneous | |
| Included Accessories | Thank you card, TUF magnet, TUF certificate of reliability, TUF Gaming graphics card holder, TUF hook-and-loop fastener |
| Software Included | ASUS GPU Tweak III, Adobe Creative Cloud All Apps (1 month membership), AMD Radeon Software Adrenalin Edition |
| Compliant Standards | DisplayPort 2.1a, HDCP 2.3 |
| Width | 2.5 in |
| Depth | 13 in |
| Height | 5.9 in |
| System Requirements | |
| Required Power Supply | 850 W |
| Additional Requirements | 3 x 8 pin PCI Express power connector, 2 adjacent PCIe slots |
