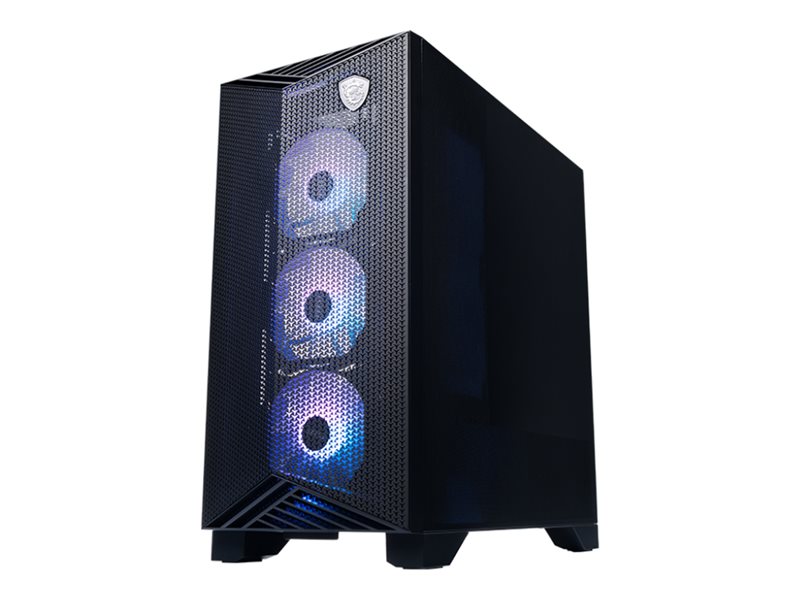

Tower gaming - Core i9 i9-14900F / up to 5.8 GHz - RAM 32 GB - SSD 1 TB - NVMe - GeForce RTX 5080 - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | MSI Aegis R2 C14NVV9 1440US - tower Core i9 i9-14900F 2 GHz - 32 GB - SSD 1 TB |
| Type | Personal computer - tower |
| Processor | Intel Core i9 (14th Gen) i9-14900F / 2 GHz (up to 5.8 GHz, (24-core) |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 36 MB |
| Cache Per Processor | 36 MB |
| RAM | 32 GB (installed) / 192 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA GeForce RTX 5080 |
| Video Memory | 16 GB |
| Gaming | Yes |
| Audio Output | 7.1 channel surround |
| Networking | Bluetooth 5.1, 1GbE, 2.5GbE, 802.11a, Wi-Fi 5, Wi-Fi 6, Wi-Fi 7, 802.11b/g/n |
| OS Provided | Windows 11 Pro |
| Color | Black |
| Dimensions (WxDxH) | 9.1 in x 19.4 in x 19 in |
| Weight | 26.46 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | Tower |
| Built-in Devices | Air cooling solution |
| Gaming | Yes |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2230/2242/2260/2280/22110 (PCIe 4.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key E, for wireless module) ¦ 2 (total) / 1 (free) x PCIe 4.0 x16 ¦ 3 (total) / 3 (free) x PCIe 3.0 x1 |
| Interfaces | 1 x LAN (2.5Gigabit Ethernet) - RJ-45 (1 rear) ¦ 4 x USB 2.0 (4 rear) ¦ 2 x audio line-out - mini-jack (1 front, 1 rear) ¦ 1 x audio line-in - mini-jack (1 rear) ¦ 2 x microphone - mini-jack (1 front, 1 rear) ¦ 1 x audio line-in (center/subwoofer) - mini-jack (1 rear) ¦ 1 x audio line-out (side surround) - mini-jack (1 rear) ¦ 1 x USB-C 3.2 Gen 1 (1 front) ¦ 1 x USB-C 3.2 Gen 2x2 (1 front) ¦ 2 x USB-C 3.2 Gen 2 (2 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) ¦ 2 x antenna ¦ 1 x SPDIF output (1 rear) ¦ 1 x PS/2 keyboard / mouse (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Gaming | Yes |
| RAM | |
| Installed Size | 32 GB (installed) / 192 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 2 (empty) |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8125BG |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Bluetooth 5.1, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n |
| Power | |
| Device Type | Power supply |
| Power Provided | 850 watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| Cache Memory | |
| Installed Size | 36 MB |
| Cache Per Processor | 36 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA GeForce RTX 5080 |
| Video Memory | 16 GB |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 9.1 in |
| Depth | 19.4 in |
| Height | 19 in |
| Weight | 26.46 lbs |
| Keyboard | |
| Interface | USB |
| Mouse | |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i9 (14th Gen) i9-14900F |
| Clock Speed | 2 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.8 GHz (P-core) / 4.3 GHz (E-core) |
| Number of Cores | 24-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Chipset Type | Intel B760 |
| Motherboard Name | PRO B760-VC WIFI II |
