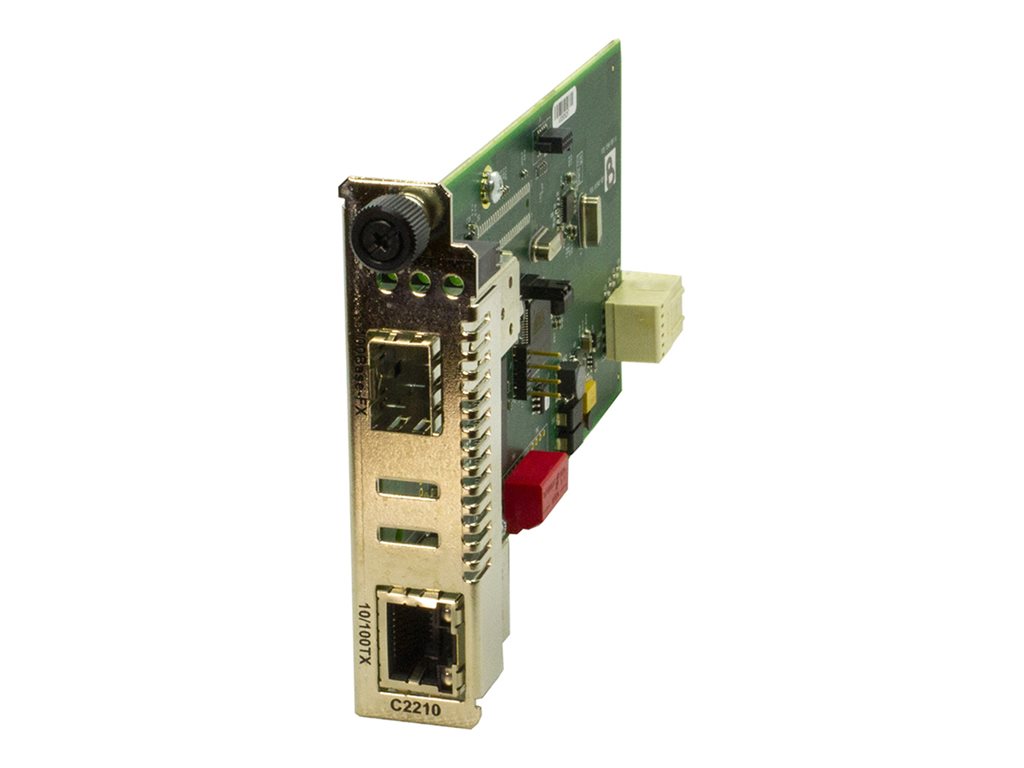

Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-FX - RJ-45 / SFP (mini-GBIC) - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix ION C2210 Series - fiber media converter - 10Mb LAN, 100Mb LAN - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | Plug-in module |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX |
| Data Transfer Rate | 100 Mbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Remote Management Protocol | Telnet, SNMP 1, SNMP 2, SNMP 3, IPv4, IPv6, Syslog, TFTP, SSH |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 0.9 in x 6.5 in x 3.4 in |
| Weight | 15.87 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-X - SFP female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, CISPR, EN 55022 Class A, FCC Class A certified, EN55024 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| MAC Address Table Size | 1K entries |
| Remote Management Protocol | Telnet, SNMP 1, SNMP 2, SNMP 3, IPv4, IPv6, Syslog, TFTP, SSH |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link/activity, port duplex mode |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), Link Pass-Through, Far End Fault (FEF), pause mode, Automatic Link Restoration, firmware upgradable, 512KB frame buffer, full duplex capability, LED status indicators, up to 2048 bytes frame size, VLAN management, web-based management, VLAN support, Syslog support, RADIUS support, ACL support |
| Encryption Algorithm | SSL |
| Compliant Standards | IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Consumption Operational | 2.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.9 in |
| Depth | 6.5 in |
| Height | 3.4 in |
| Weight | 15.87 oz |
