Speakers - 60 Watt - 2-way - coaxial - black, RAL 9005
| Main Specifications | |
|---|---|

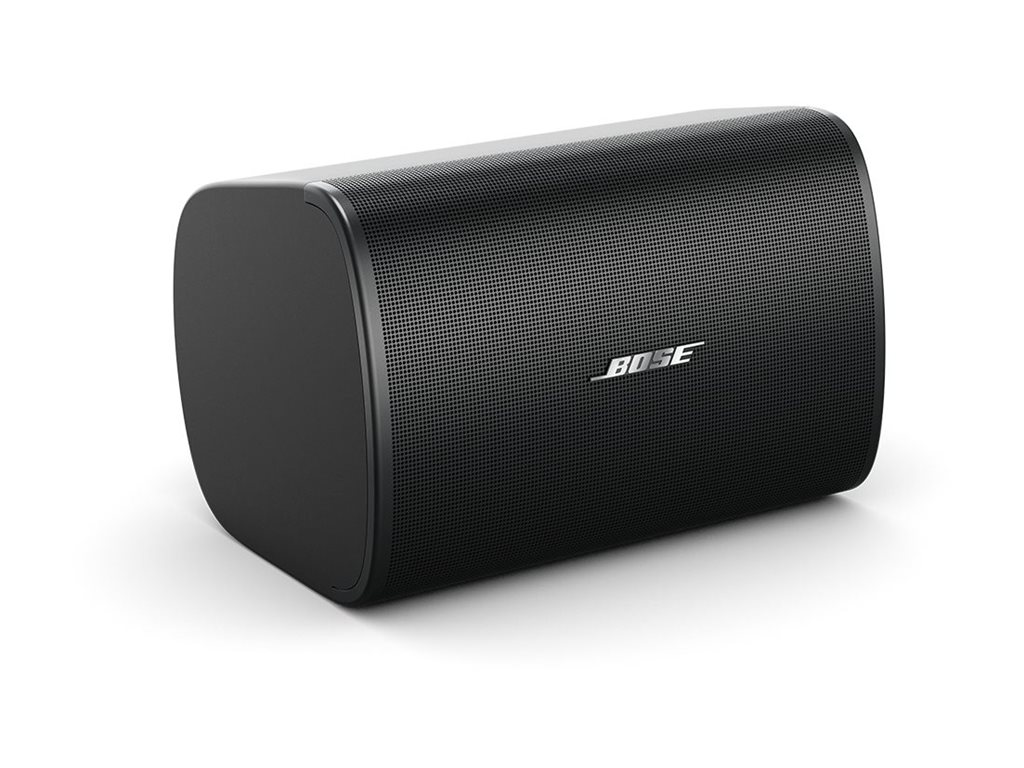

| Product Description | Bose DesignMax DM5SE - speakers |
| Product Type | Speakers |
| Protection | Weather-resistant |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 60 Watt |
| Peak Power | 240 Watt |
| Nominal Impedance | 8 Ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Speaker Details | Speaker - 60 Watt - 65 - 20000 Hz - 8 Ohm - 2-way - passive |
| Color | Black, RAL 9005 |
| Dimensions (WxDxH) | 7.6 in x 7.7 in x 11.3 in |
| General | |
| Product Type | Speakers |
| Features | 5 selectable power taps |
| Protection | Weather-resistant |
| Enclosure Color | Black, RAL 9005 |
| Enclosure Material | UV-resistant plastic |
| Design Features | Paintable, tamper-resistant grille, powder coated, removable logo |
| Miscellaneous | |
| Included Accessories | Mounting bracket |
| Compliant Standards | UL 1480A, NFPA 70, IEC 529/IP55 |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 7.7 in |
| Height | 11.3 in |
| Dimensions (WxDxH) / Weight Details | Speaker with grille: / 9.7 lbs |
| Speaker System | |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 60 Watt |
| Peak Power | 240 Watt |
| Frequency Response (-3dB) | 73 - 17000 Hz |
| Frequency Response (-10dB) | 65 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 107 dB |
| Sensitivity | 89 dB |
| Crossover Frequency | 1800Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 135° conical |
| Recommended Placing | Surface mountable, ceiling-mountable / wall-mountable |
| Detachable Grilles | Yes |
| Speaker System Details | |
| Speaker Details | Speaker - 60 Watt - 65 - 20000 Hz CFR - 8 Ohm - 2-way - passive |
| Driver Details | Speaker: woofer driver - 5.25" ¦ Speaker: tweeter driver - 1" - neodymium - dome |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 25.13 lbs |
