Device server - with 1-year Digi LifeCycle Assurance - 1GbE, RS-232, RS-422, RS-485 - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|

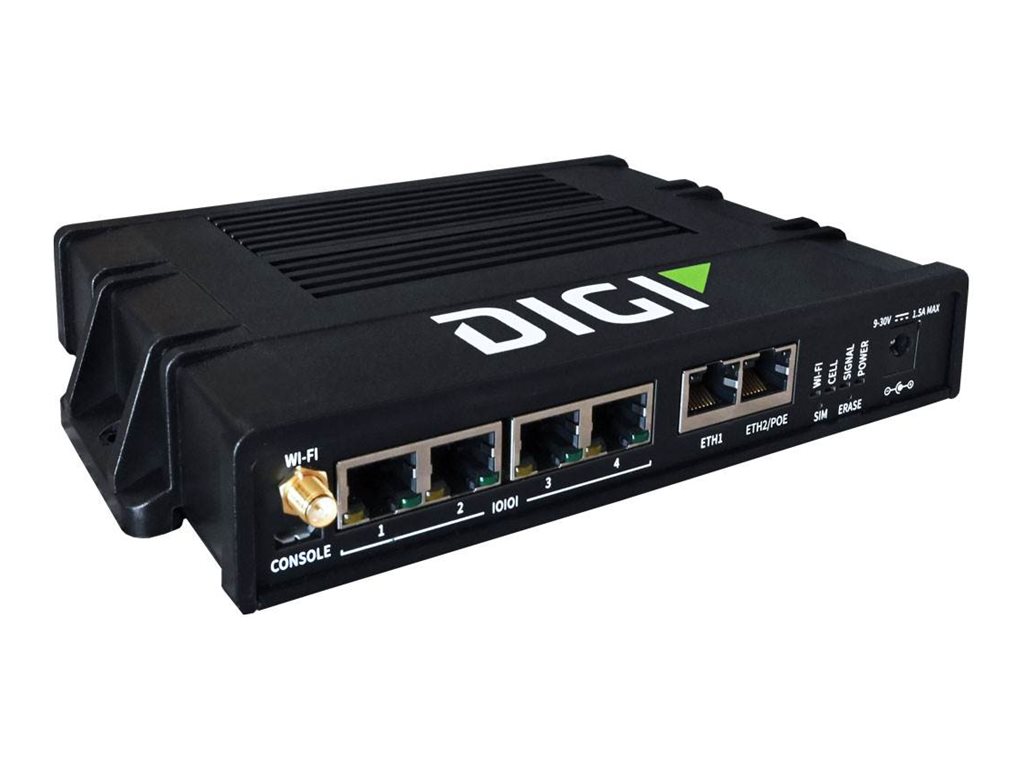

| Product Description | Digi Connect EZ 4 - device server - Wi-Fi 5 - with 1-year Digi LifeCycle Assurance |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Form Factor | External |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, RS-422, RS-485, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Wireless clients: 10 |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 7.6 in x 5.3 in x 1.4 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Width | 7.6 in |
| Depth | 5.3 in |
| Height | 1.4 in |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 4 x RS-232/422/485 - RJ-45 ¦ 1 x antenna - SMA ¦ 1 x 1000Base-T (PoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IEC 62368-1, CB, EN 62311, RoHS3, RED, FCC Part 15 B, ICES-003, AS/NZS CISPR 32 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, RS-422, RS-485, IEEE 802.11n, IEEE 802.11ac |
| Network / Transport Protocol | FTP, SMTP, NTP, DDNS |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, SSH, CLI, Telnet, SCP, SMTP, NTP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Wireless clients: 10 |
| Status Indicators | LAN, serial, power, signal, Wi-Fi |
| Features | FTP client, SMTP client, SNTP support, auto-sensing per device, SISO technology |
| Encryption Algorithm | WPA3-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise |
| Authentication Method | RADIUS, TACACS+, LDAP |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Power Consumption Operational | 4.5 Watt |
| Software / System Requirements | |
| Software Included | Digi Remote Manager, Digi Navigator |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14 in |
| Shipping Depth | 8 in |
| Shipping Height | 2.6 in |
| Shipping Weight | 2.87 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 1 |
