Wireless router 3-port switch - Wi-Fi 7, 10GbE, 2.5GbE - WAN ports: 2 Multi-Band
| Main Specifications | |
|---|---|

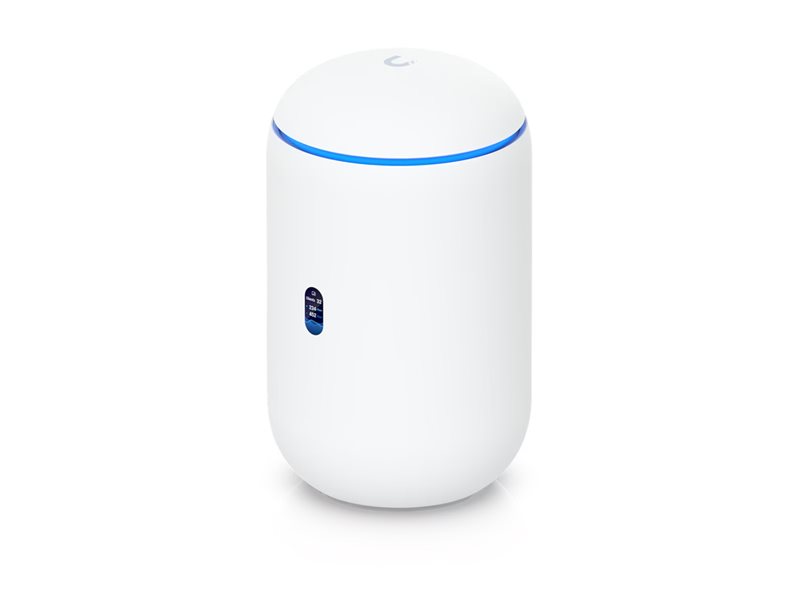

| Product Description | Ubiquiti Dream Router 7 - wireless router - Wi-Fi 7 - desktop |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 2 |
| Data Link Protocol | IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Data Transfer Rate | 10 Gbps |
| Performance | IDS/IPS throughput: 2.3 Gbps ¦ Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (5 GHz): 4.3 Gbps ¦ Maximum data rate (6 GHz): 5.7 Gbps ¦ Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz |
| Capacity | BSSIDs per radio: 4 ¦ Number of concurrent clients: 300+ ¦ IPS signatures: 20000 |
| Network / Transport Protocol | IPSec, OpenVPN, WireGuard, L2TP, DHCP, IGMP, IPv6 |
| Routing Protocol | OSPF |
| Features | Cloud managed, full stateful firewall, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, IPS, IDS, ad blocking, VLAN segmentation, SD-WAN support, 1-click-VPN site-to-site, VPN Server, VPN client, load balancing, Advanced QoS, mDNS, NAT support, DNAT support, SNAT support, RADIUS Server, failover backup, ISP, policy-based WAN, VPN routing, DHCP server, IGMP proxy, 2x2 MU-MIMO technology, 15.4 W PoE power budget, Quad-core CPU, polycarbonate enclosure, Bluetooth management, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), reset button, Guest Isolation |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11be, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, Wi-Fi CERTIFIED 7 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 4.3 in x 4.3 in x 7.2 in |
| Weight | 2.43 lbs |
| Localization | United States |
| General | |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Data Transfer Rate | 10 Gbps |
| Performance | IDS/IPS throughput: 2.3 Gbps ¦ Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (5 GHz): 4.3 Gbps ¦ Maximum data rate (6 GHz): 5.7 Gbps ¦ Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz |
| Capacity | BSSIDs per radio: 4 ¦ Number of concurrent clients: 300+ ¦ IPS signatures: 20000 |
| MAC Address Table Size | 2000 entries |
| Network / Transport Protocol | IPSec, OpenVPN, WireGuard, L2TP, DHCP, IGMP, IPv6 |
| Routing Protocol | OSPF |
| Encryption Algorithm | WPA-PSK, WPA2-Enterprise, WPA3-Enterprise, WPA-Enterprise |
| Authentication Method | RADIUS, RADSEC |
| Features | Cloud managed, full stateful firewall, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, IPS, IDS, ad blocking, VLAN segmentation, SD-WAN support, 1-click-VPN site-to-site, VPN Server, VPN client, load balancing, Advanced QoS, mDNS, NAT support, DNAT support, SNAT support, RADIUS Server, failover backup, ISP, policy-based WAN, VPN routing, DHCP server, IGMP proxy, 2x2 MU-MIMO technology, 15.4 W PoE power budget, Quad-core CPU, polycarbonate enclosure, Bluetooth management, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), reset button, Guest Isolation |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11be, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, Wi-Fi CERTIFIED 7, IC, FCC |
| Processor | 1 x ARM 1.5 GHz |
| RAM | 3 GB |
| Built-in Devices | Status LCD |
| Status Indicators | System |
| Expansion / Connectivity | |

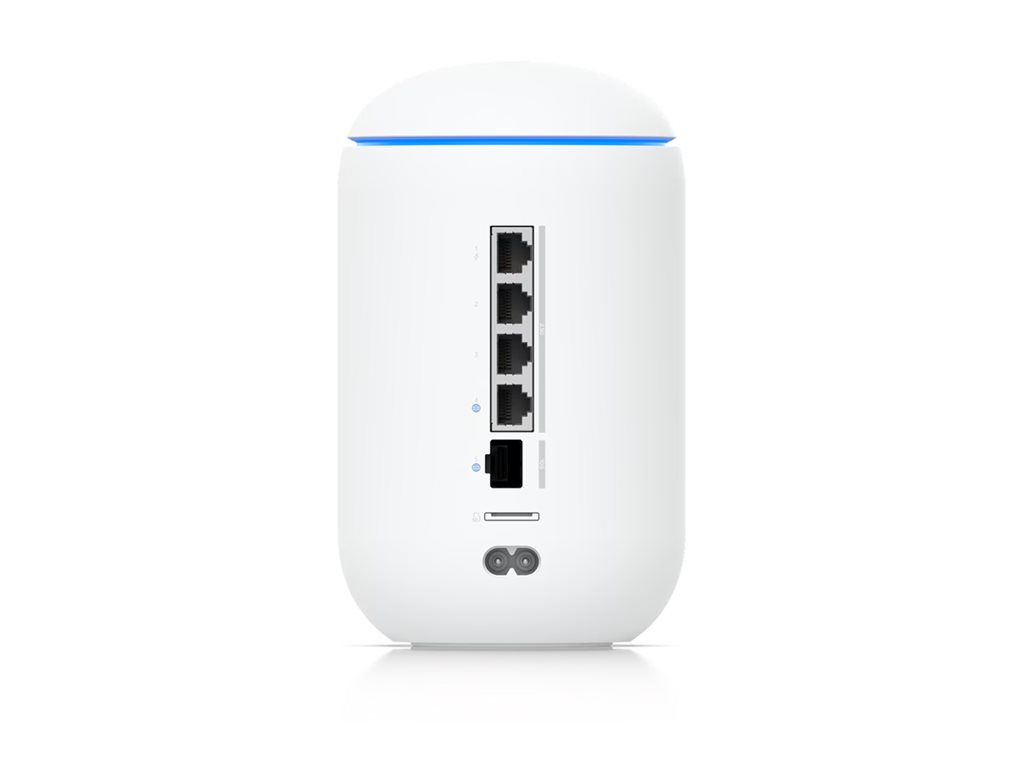

| Interfaces | LAN: 2 x 2.5GBase-T - RJ-45 ¦ LAN: 1 x 2.5GBase-T (PoE) - RJ-45 ¦ WAN: 1 x 10Gb Ethernet - RJ-45 ¦ WAN: 1 x 2.5G Gigabit Ethernet - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x microSD |
| Miscellaneous | |
| Included Accessories | 64 GB microSD Card, power cable |
| Localization | United States |
| Power | |
| Power Device | Internal power supply - 50 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 7.2 in |
| Weight | 2.43 lbs |
| Antenna | |
| Antenna | Internal |
