Router 2.5GbE, 10GbE - rack-mountable
| Main Specifications | |
|---|---|

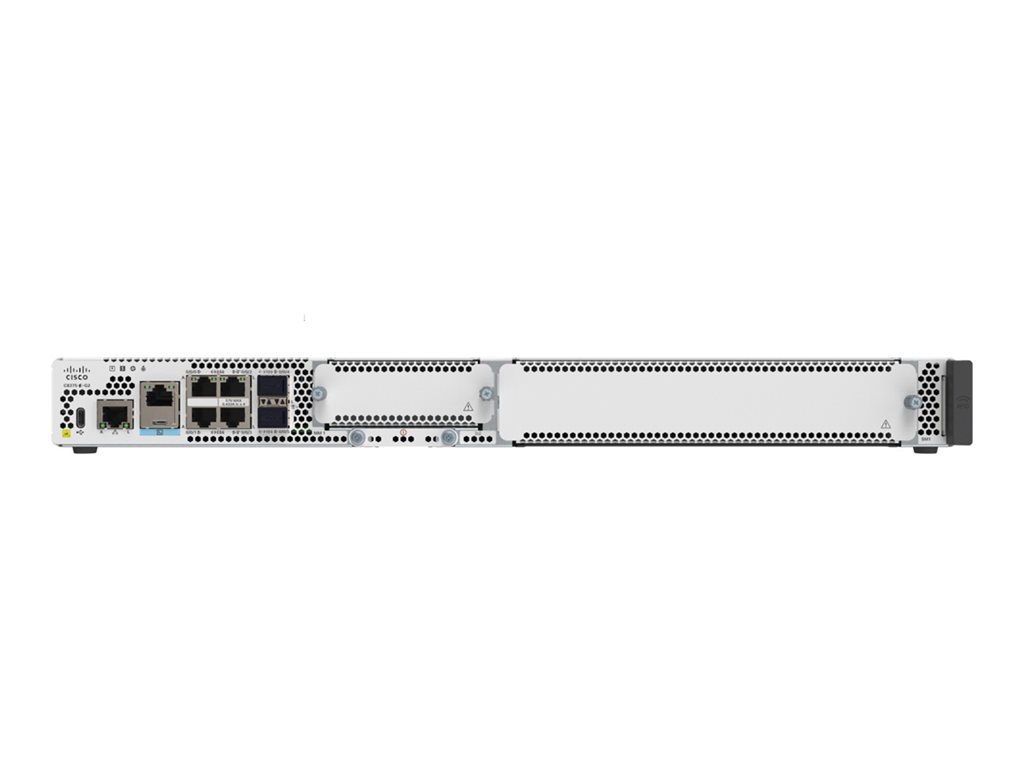

| Product Description | Cisco C8375-E-G2 - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Rack-mountable - modular - 1U |
| Data Link Protocol | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 38 Gbps ¦ VPN throughput (512-bit IPSec): 20 Gbps ¦ Security throughput: 7 Gbps |
| Features | Built-in ASIC, NPU, MACsec support |
| Power | AC 85-264 V |
| Dimensions (WxDxH) | 17.5 in x 16.3 in x 1.7 in |
| Weight | 14.31 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable - modular - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 38 Gbps ¦ VPN throughput (512-bit IPSec): 20 Gbps ¦ Security throughput: 7 Gbps |
| Features | Built-in ASIC, NPU, MACsec support |
| Compliant Standards | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62368-1, EN 62368-1, AS/NZS 62368.1, CNS 15598-1, KC 62368-1, 47 CFR Part 15 Class A, ICES-003 Class A, AS/NZS CISPR 32 Class A, CISPR 32 Class A, EN55032 Class A, VCCI-CISPR 32 Class A, CNS 15936 Class A, KS C 9832 Class A, EN IEC 61000-3-2, IEC/EN 61000-3-3, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-11, KS C 9835, EN 300 386, EN 55032, EN55024, EN55035, EN 61000-6-1 |
| RAM | 16 GB (installed) / 32 GB (max) |
| Hard Drive | 16 GB |
| Built-in Devices | RFID tag |
| Expansion / Connectivity | |
| Interfaces | WAN: 2 x 10Gb Ethernet - SFP/SFP+ ¦ WAN: 2 x 100M/1G/2.5G Gigabit Ethernet - RJ-45 ¦ USB 3.0: 1 x Type C ¦ Console: 1 x RJ-45 ¦ Console: 1 x Micro-USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x Pluggable Interface Module (PIM) ¦ 1 (total) / 1 (free) x NIM ¦ 1 (total) / 1 (free) x service module (SM) ¦ 1 (total) / 1 (free) x M.2 storage slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 2 years - response time: 10 days |
| Power | |
| Power Device | Internal power supply - hot-plug - 400 watt |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 85-264 V |
| Software / System Requirements | |
| OS Provided | Cisco IOS XE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 16.3 in |
| Height | 1.7 in |
| Weight | 14.31 lbs |
