Live streaming camera - PTZ - indoor - color - 2.1 MP - 1920 x 1080 - manual iris - motorized - audio - HDMI, 3G-SDI - 1000Base-X - USB-C 3.2 Gen1 - H.264, MJPEG, H.265, YUY2 - DC 12 V / PoE Plus
| Main Specifications | |
|---|---|
| Product Description | Marshall CV612-TBI - live streaming camera |
| Device Type | Live streaming camera - pan / tilt / zoom - indoor |
| Audio | Yes: one-way audio capability |
| Camera Mount Type | Ceiling mount, surface mount |
| Dimensions (WxDxH) | 5.8 in x 6.5 in x 6.4 in |
| Weight | 3.28 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 12 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080i, 1080p, 720p |
| Optical Sensor Type | CMOS - 1/2.8" - 2.1 MP |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.1 mm - 49.2 mm |
| Focus Adjustment | Automatic, manual |
| Lens Iris | F/1.8-11 - manual iris |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -90 to +90 |
| Interfaces | USB-C 3.2 Gen1, HDMI, 3G-SDI, Ethernet 1000Base-X |
| Control Interface | RS-232 |
| Cables Included | 1 - USB-C cable - external |
| Voltage | AC 110-220 V, DC 12 V / PoE Plus |
| Features | 3D Noise Reduction Technology, 2D Noise Reduction Technology, auto white balance, manual white balance, auto / manual focus, Backlight Compensation (BLC), colour saturation control, contrast adjustment, hue control, manual brightness adjustment, sharpness control, >50 dB SNR, ONVIF support, Dante AV-H, VISCA over IP, PELCO D protocol support, PELCO P protocol support, 255 preset positions, AI Tracking, LED indicator, AI-framing |
| Manufacturer Warranty | 2-year warranty |
| Environmental Parameters (operating) | 14 °F - 122 °F; 20 - 80% relative humidity |
| General | |
| Device Type | Live streaming camera |
| Audio Support | Yes: one-way audio capability |
| Audio Formats | AAC |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Width | 5.8 in |
| Depth | 6.5 in |
| Height | 6.4 in |
| Weight | 3.28 lbs |
| Expansion / Connectivity | |

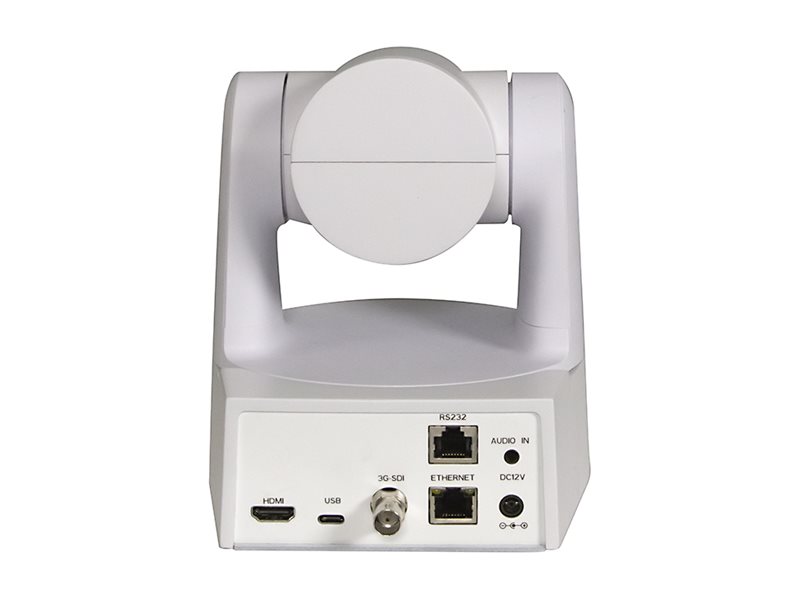

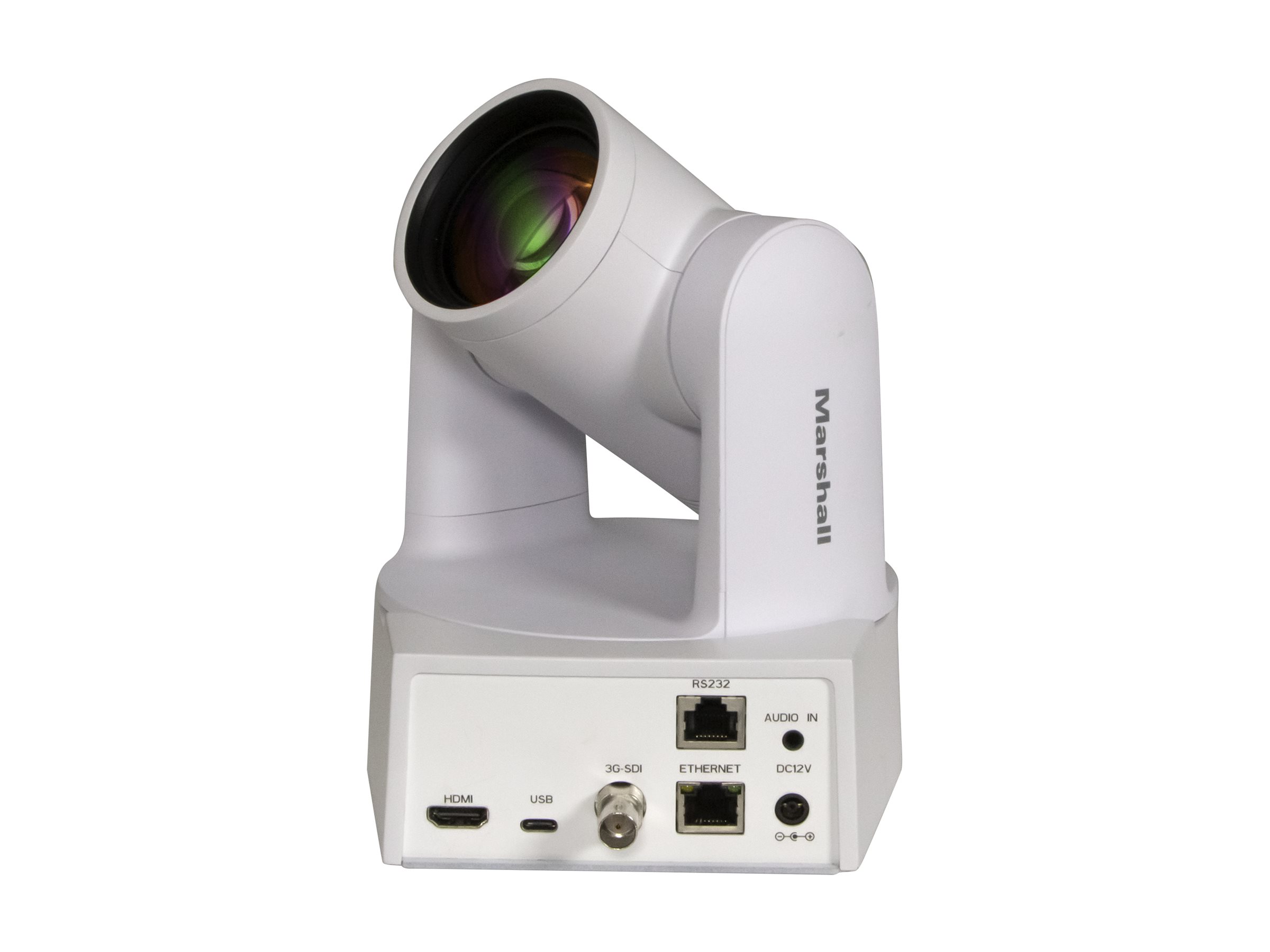

| Ports | HDMI output - HDMI Type A ¦ 3G-SDI - BNC ¦ Serial RS-232 ¦ USB 3.0 - 24-pin USB-C ¦ LAN/power - RJ-45 ¦ Audio line in - 3.5 mm stereo jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Remote control, mounting hardware |
| Cables Included | 1 x USB-C cable - external |
| Color | White |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | Power adapter - external AC 110-220 V 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 20 - 80% |
| Camera | |
| Type | Color - pan / tilt / zoom - indoor |
| Digital Video Format | H.264, MJPEG, H.265, YUY2 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080i, 1080p, 720p |
| Digital Zoom | 8 |
| Exposure Range | 1/60 sec - 1/10000 sec |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Video Capture | 1920 x 1080 @ 50/60 fps ¦ 1280 x 720 @ 50/60 fps ¦ 1920 x 1080 @ 59.94 fps ¦ 1280 x 720 @ 59.94 fps ¦ 1920 x 1080 @ 25/30 fps ¦ 1280 x 720 @ 25/30 fps ¦ 1920 x 1080 @ 29.97 fps ¦ 1280 x 720 @ 29.97 fps ¦ 960 x 540 @ 30 fps ¦ 800 x 600 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 720 x 576 @ 30 fps ¦ 720 x 480 @ 30 fps |
| Features | 3D Noise Reduction Technology, 2D Noise Reduction Technology, auto white balance, manual white balance, auto / manual focus, Backlight Compensation (BLC), colour saturation control, contrast adjustment, hue control, manual brightness adjustment, sharpness control, >50 dB SNR, ONVIF support, Dante AV-H, VISCA over IP, PELCO D protocol support, PELCO P protocol support, 255 preset positions, AI Tracking, LED indicator, AI-framing |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 4.1 mm - 49.2 mm |
| Lens Iris | F/1.8-11 manual iris |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 6.6 - 70.3 |
| Image Sensor | |
| Type | 2.1 MP CMOS 1/2.8" |
| Interfaces | |
| Video | HDMI, 3G-SDI |
| Network Interface | Ethernet 1000Base-X |
| Network Protocols | HTTP, HTTPS, RTSP, RTMP, RTP, UDP, SRT |
| Computer Interface | USB-C 3.2 Gen1 |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 60 |
| Tilting | |
| Range (degree) | -90 to +90 |
| Speed (degree/sec) | Up to 30 |
