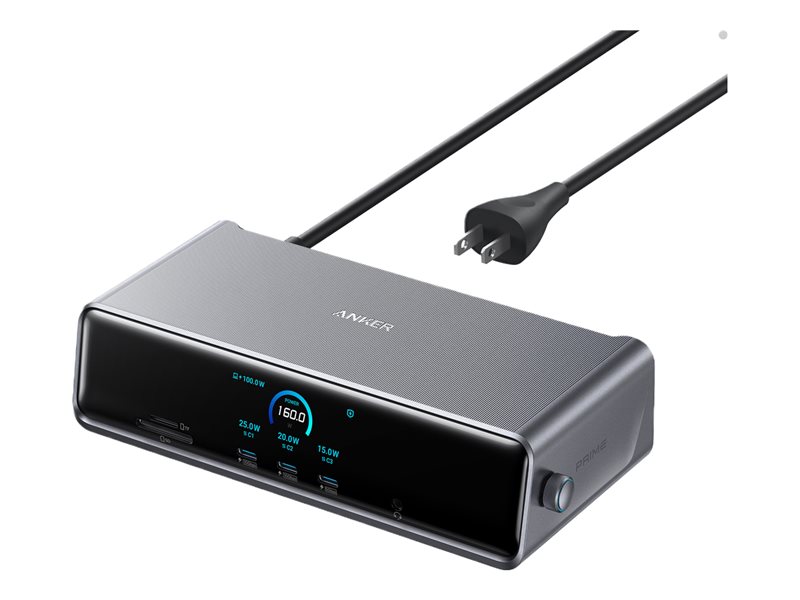

Docking station - USB-C - DP, 2 x HDMI - 2.5GbE
| Main Specifications | |
|---|---|
| Product Description | Anker Prime A83B3 14-in-1 - docking station - USB-C - DP, 2 x HDMI - 2.5GbE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | DP, 2 x HDMI |
| Dimensions (WxDxH) | 7.7 in x 3.6 in x 1.9 in |
| Weight | 29.42 oz |
| Networking | 2.5 Gigabit Ethernet |
| Power | Power adapter |
| General | |
| Product Type | Docking station |
| Width | 7.7 in |
| Depth | 3.6 in |
| Height | 1.9 in |
| Weight | 29.42 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 1 x network - 2.5G Gigabit Ethernet - RJ-45 ¦ 1 x USB 2.0 - 9 pin USB Type A ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 2 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 1 x audio - input / output - mini-phone stereo 3.5 mm |
| Miscellaneous | |
| Cables Included | 1 x USB 3.2 Gen 2 cable - external |
| Features | Up to 10Gbps data transfer, up to 140W power delivery, active cooling |
| Networking | |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Video | |
| Max Resolution Details | 8K - 60 Hz (Single Display (DisplayPort)) ¦ 8K - 30 Hz (Single Display (HDMI)) ¦ 4K - 60 Hz (Dual Display (2 x HDMI)) ¦ 8K, 4K - 60 Hz (Dual Display (DisplayPort + HDMI)) ¦ 8K, 4K - 60 Hz (Triple Display (2 x HDMI / DisplayPort)) |
| System Requirements | |
| OS Required | Apple macOS 13.5.2 or later, Microsoft Windows 10 / 11 |
