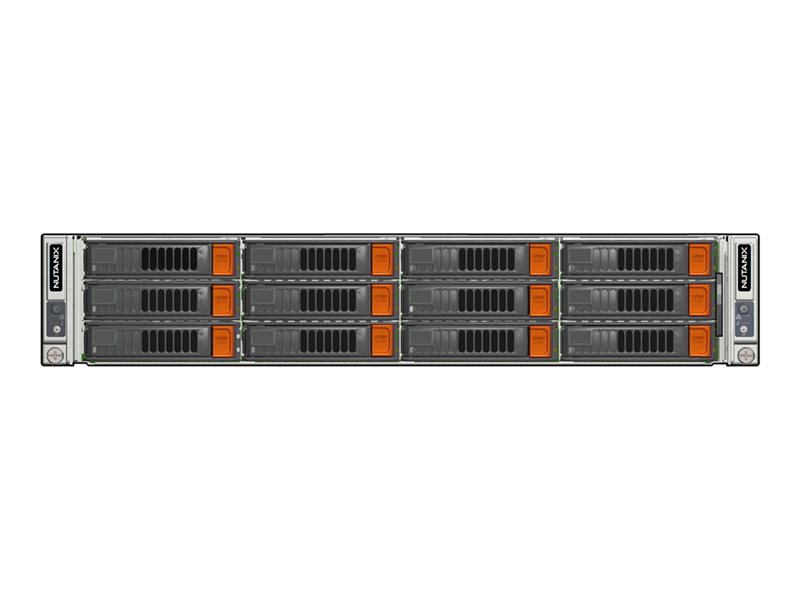

Application accelerator - 10GbE - 2U - 2 nodes - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Nutanix Xtreme Computing Platform NX-3235-G9 - application accelerator |
| Device Type | Application accelerator |
| Form Factor | Rack-mountable - 2U |
| Processor | 2 x Intel Xeon Gold 5515+ - 3.2 GHz |
| RAM | 4096 GB (max) |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Pricing Type | 2 nodes |
| Dimensions (WxDxH) | 17.5 in x 31.5 in x 3.5 in |
| Weight | 56.22 lbs |
| General | |
| Device Type | Application accelerator |
| Height (Rack Units) | 2U |
| Built-in Devices | 4 x 80 mm fans, 2 x 512 GB M.2 boot drives |
| Width | 17.5 in |
| Depth | 31.5 in |
| Height | 3.5 in |
| Weight | 56.22 lbs |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 3.5" |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot |
| Interfaces | 1 x IPMI - RJ-45 ¦ 2 x 10GBase-T - RJ-45 ¦ 1 x VGA ¦ 2 x 10GBase-T - RJ-45/SFP+ ¦ 2 x USB 3.0 - Type A |
| Miscellaneous | |
| Compliant Standards | CSA, UL, BSMI, cUL, SABS, FCC, RoHS, SII, KCC, WEEE, ICES, S Mark, REACH, EAC, RCM, BIS, UKCA, VCCI-A, CSAus |
| Pricing Type | 2 nodes |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Status Indicators | Power, alert, HDD activity, network, power fail |
| Features | UID button, 8-core CPU |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 2200 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 77 °F |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 2 x Intel Xeon Gold 5515+ 3.2 GHz |
| Max Supported Qty | 2 |
| RAM | (4096 GB max) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 80.16 lbs |
