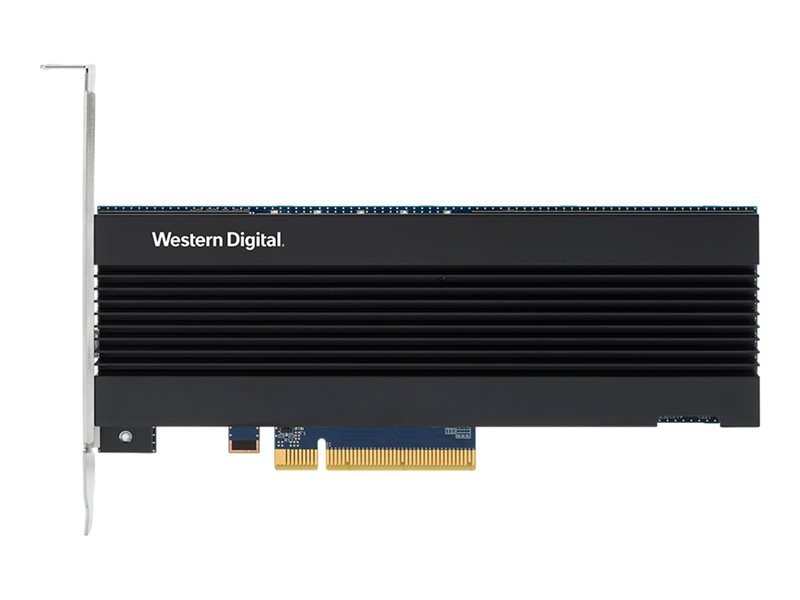

SSD - 3.84 TB - internal - PCIe card (HHHL) - PCIe 3.0 x8 (NVMe)
| Main Specifications | |
|---|---|
| Product Description | WD Ultrastar SN200 HUSMR7638BHP3Y1 - SSD - 3.84 TB - PCIe 3.0 x8 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 3.84 TB |
| Form Factor | PCIe card (HHHL) |
| Interface | PCIe 3.0 x8 (NVMe) |
| Features | Secure Erase function, PowerSave technology, End-to-end data path protection, flash-aware RAID |
| Dimensions (WxDxH) | 0.6 in x 6.6 in x 2.7 in |
| Weight | 8.08 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 3.84 TB |
| Form Factor | PCIe card (HHHL) |
| Interface | PCIe 3.0 x8 (NVMe) |
| Features | Secure Erase function, PowerSave technology, End-to-end data path protection, flash-aware RAID |
| Width | 0.6 in |
| Depth | 6.6 in |
| Height | 2.7 in |
| Weight | 8.08 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | UL, TUV, VCCI, BSMI, KCC, ICES, EMI, RCM, RoHS 2011/65/EU |
| Power | |
| Power Consumption | 25 watt (typical) ¦ 9 watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 6170 MBps (read) / 2200 MBps (write) |
| Maximum 4KB Random Write | 75000 IOPS |
| Maximum 4KB Random Read | 1200000 IOPS |
| Average Latency | 20 ?s |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 3.0 x8 (NVMe) |
| Compatible Bay | PCIe card (HHHL) |
