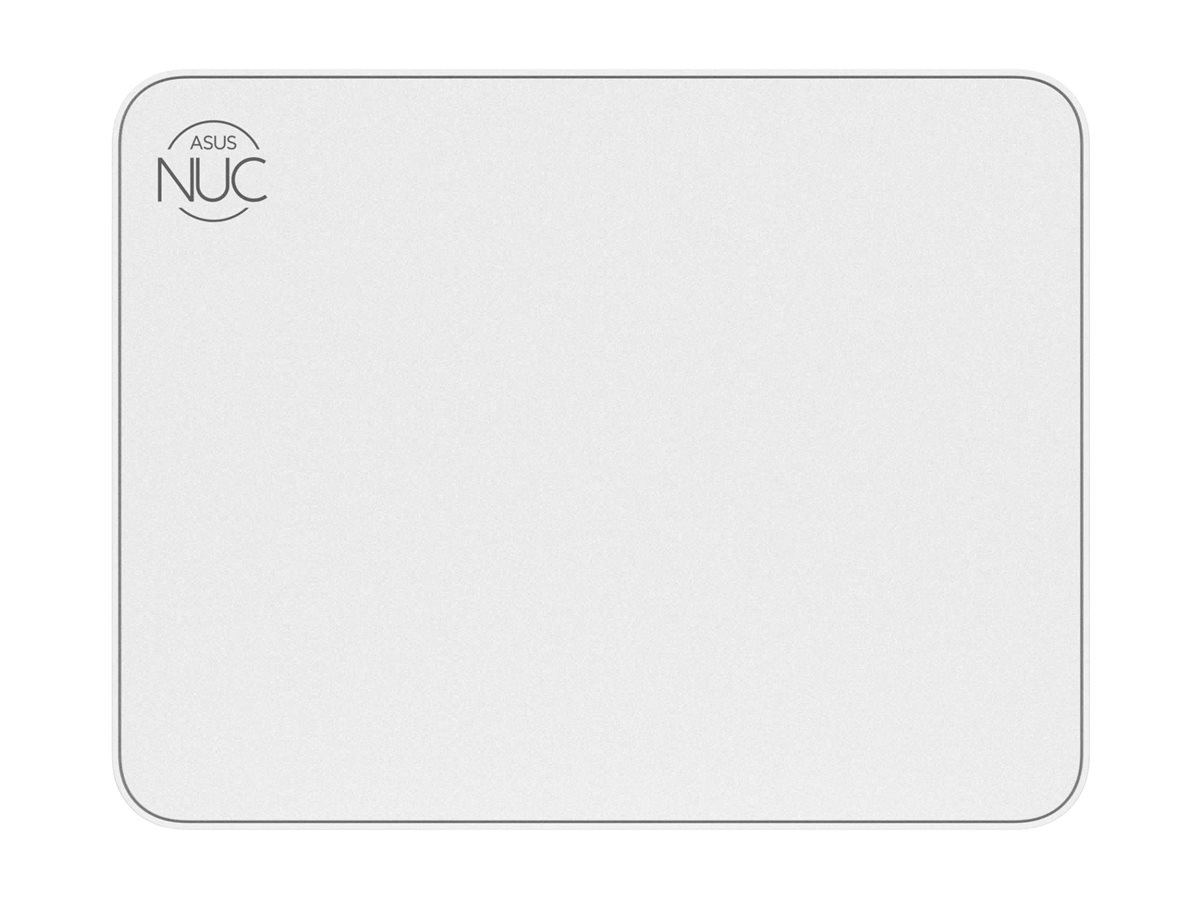

Barebone - mini PC 1 x Core Ultra 5 225H / up to 4.9 GHz - RAM 0 GB - Arc Graphics 130T - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - silver
| Main Specifications | |
|---|---|

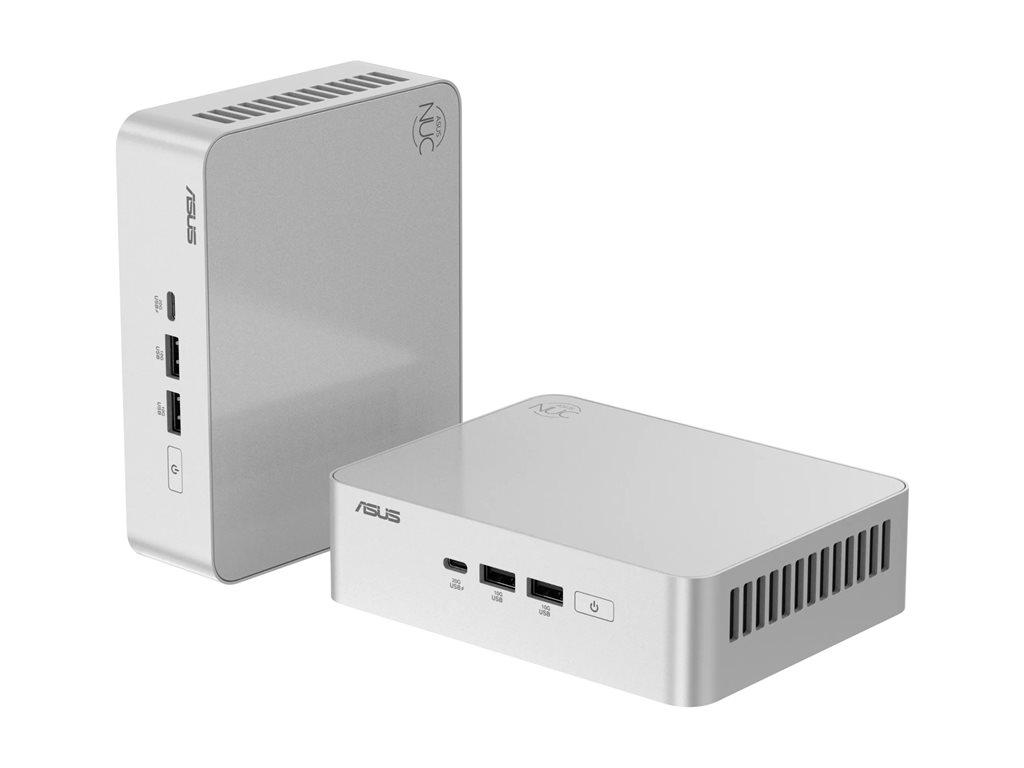

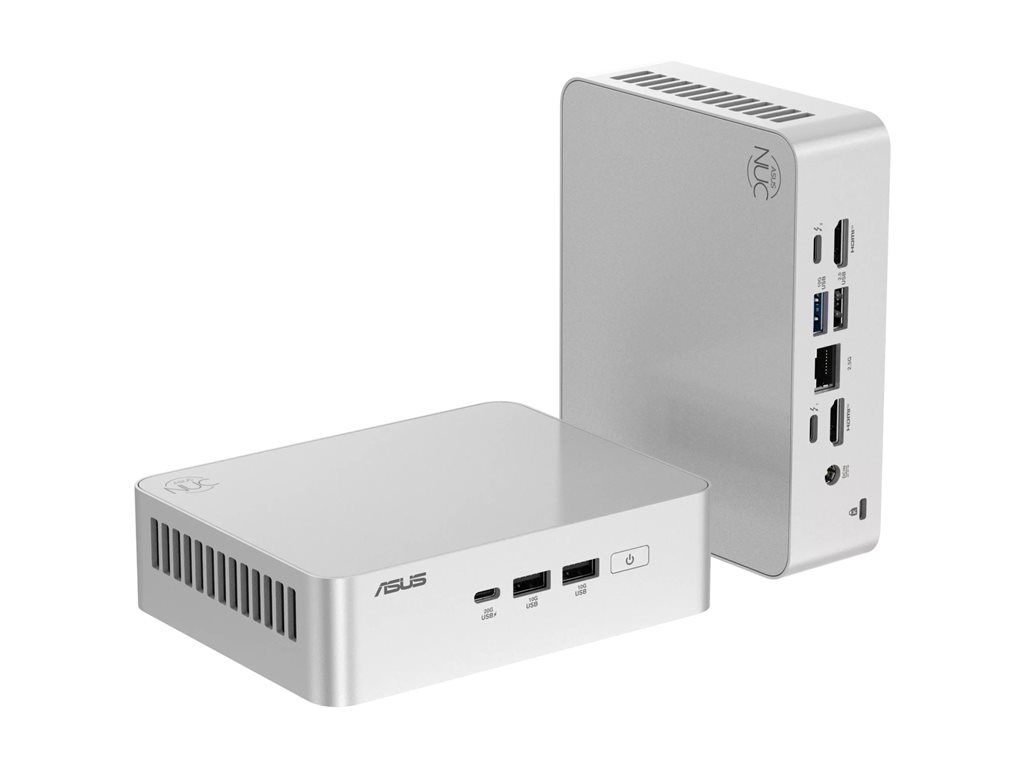

| Product Description | ASUS NUC 15 Pro+ RNUC15CRSU50000U - mini PC Core Ultra 5 225H 1.7 GHz - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Processor | 1 x Intel Core Ultra 5 (Series 2) 225H / 1.7 GHz (up to 4.9 GHz, (14-core) |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 18 MB |
| Cache Per Processor | 18 MB |
| RAM | 0 GB (installed) / 96 GB (max) - DDR5 SDRAM |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Arc Graphics 130T - up to 63 TOPS |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Wi-Fi 6, Bluetooth, Wi-Fi 7 |
| OS Provided | No operating system |
| Color | Silver |
| Dimensions (WxDxH) | 5.7 in x 4.4 in x 1.7 in |
| Weight | 21.16 oz |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM) Security Chip |
| Color | Silver |
| Expansion / Connectivity | |

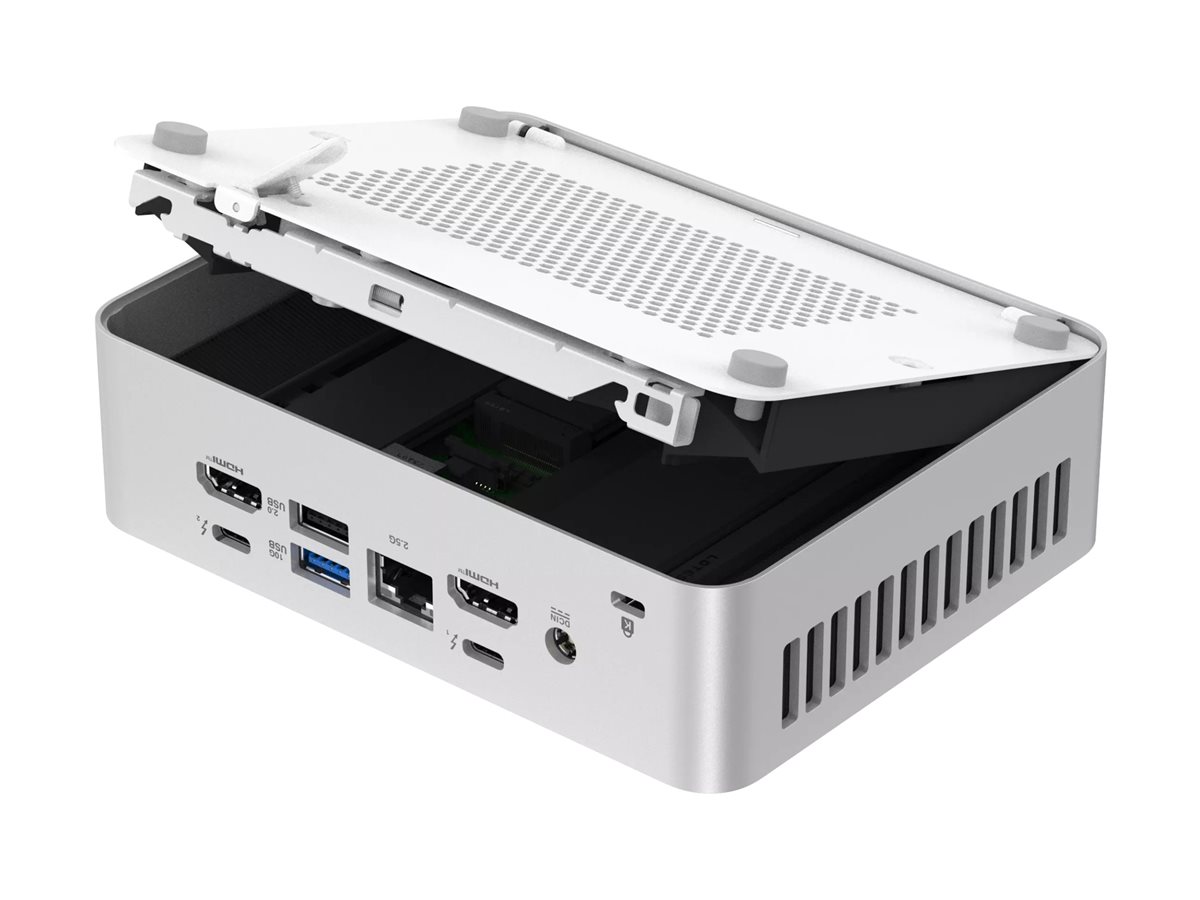

| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 ¦ 1 (total) / 1 (free) x M.2 Card - 2242 |

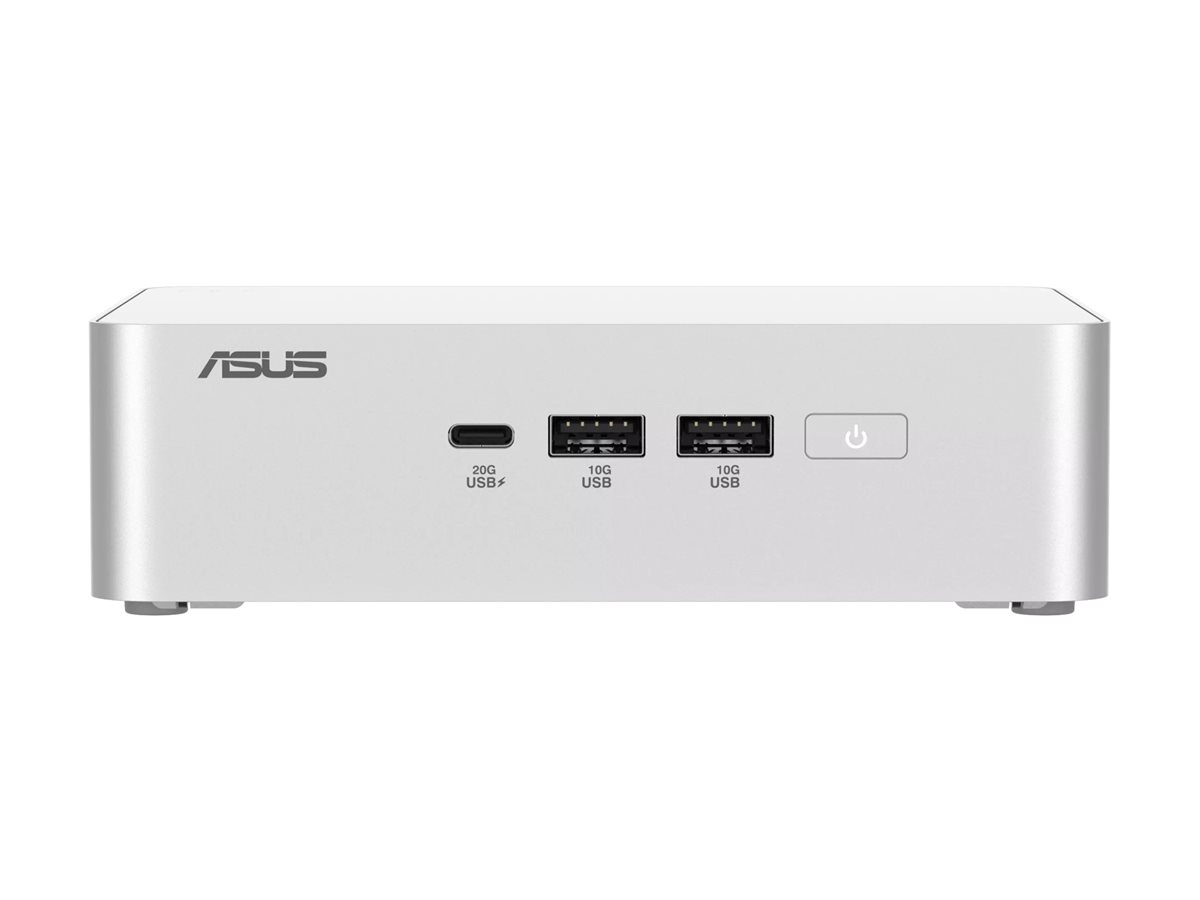

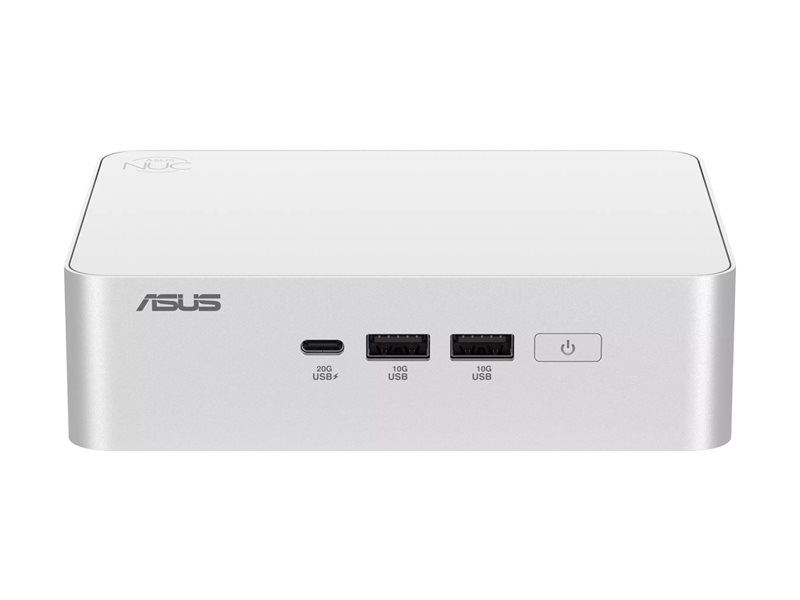

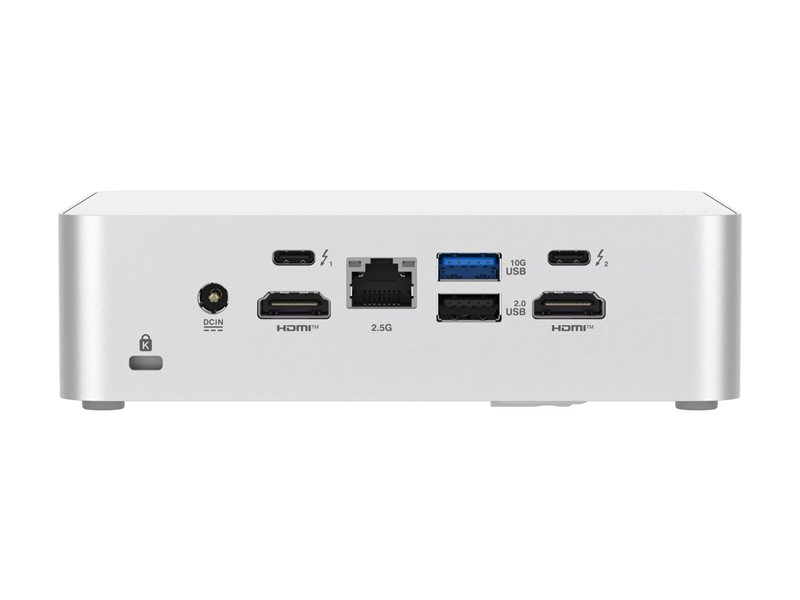

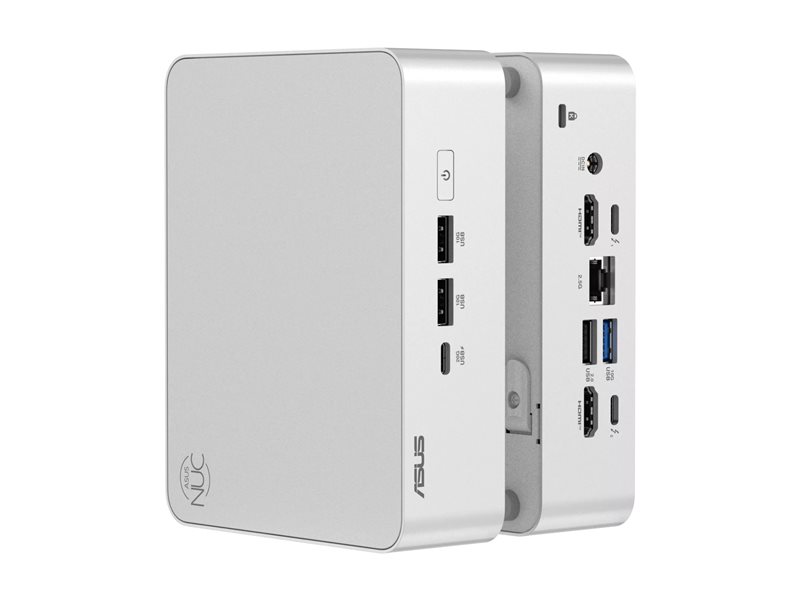

| Interfaces | 1 x USB 3.2 Gen 2x2 (1 front) ¦ 3 x USB 3.2 Gen 2 (2 front, 1 rear) ¦ 2 x HDMI (supports 4K@60Hz) ¦ 2 x Thunderbolt 4/USB4/DisplayPort 2.1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | VESA |
| RAM | |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 2 (empty) |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel WI-FI 7 BE201 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 watt |
| Cache Memory | |
| Installed Size | 18 MB |
| Cache Per Processor | 18 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Arc Graphics 130T - up to 63 TOPS |
| Video Interfaces | HDMI |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 4.4 in |
| Height | 1.7 in |
| Weight | 21.16 oz |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 2) 225H |
| Clock Speed | 1.7 GHz (P-core) / 1.3 GHz (E-core) |
| Max Turbo Speed | 4.9 GHz (P-core) / 4.3 GHz (E-core) |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 83 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
