Graphics card - GeForce RTX 5070 Ti - 16 GB GDDR7 - PCI Express 5.0 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC - graphics card - GeForce RTX 5070 Ti - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Memory | 16 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2482 MHz |
| CUDA Cores | 8960 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

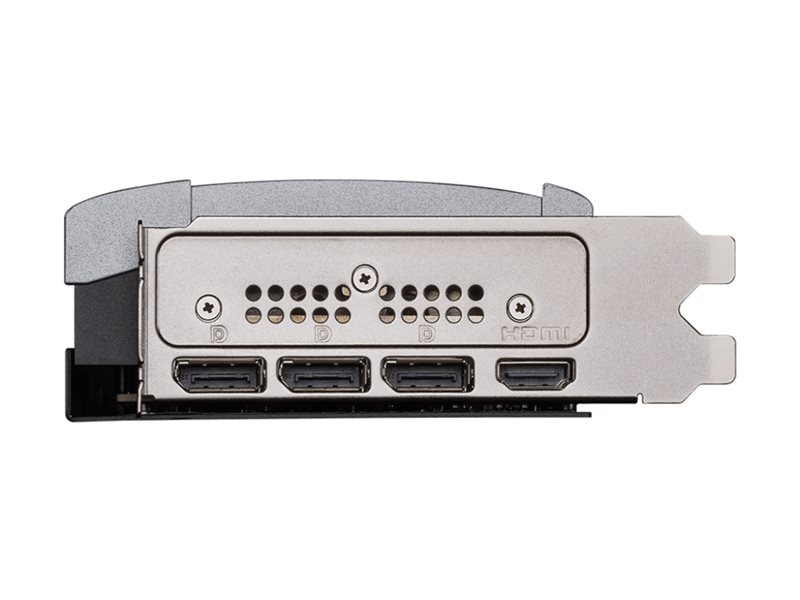

| Interfaces Details | 3 x DisplayPort ¦ HDMI (Display Stream Compression (DSC)) |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.9 in x 11.9 in x 4.8 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Boost Clock | 2482 MHz |
| CUDA Cores | 8960 |
| Max Resolution | 7680 x 4320 at 120 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI (Display Stream Compression (DSC)) |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | Triple Fan Design, NVIDIA G-Sync ready, Torx 5.0 Fans, Core Pipe, nickel plated copper base, NVIDIA Blackwell GPU architecture, 5th gen Tensor Cores, NVIDIA DLSS 4, 4th gen Ray Tracing Cores, NVIDIA Multi Frame Generation, NVIDIA Reflex 2, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, Nvidia Broadcast, 9th Gen NVIDIA Encoder, DrMOS, fuse protection, 2oz copper PCB, MSI Zero Frozr technology, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 256-bit |
| Miscellaneous | |
| Power Consumption Operational | 300 watt |
| Included Accessories | Stand |
| Software Included | MSI Center, MSI Afterburner |
| Width | 1.9 in |
| Depth | 11.9 in |
| Height | 4.8 in |
| Weight | 2.37 lbs |
| Shipping Weight | 3.45 lbs |
| System Requirements | |
| Required Power Supply | 750 W |
| Additional Requirements | 16 pin PCI Express power connector |
