180-degree hinge design - Intel Core Ultra 7 - 268V / up to 5 GHz - Intel Evo vPro Enterprise Platform - Win 11 Pro - Intel Arc Graphics 140V - 32 GB RAM - 512 GB SSD TCG Opal Encryption 2, NVMe - 14" OLED 2880 x 1800 (2.8K) @ 120 Hz - Wi-Fi 7, Bluetooth - black paint - kbd: English
| Main Specifications | |
|---|---|

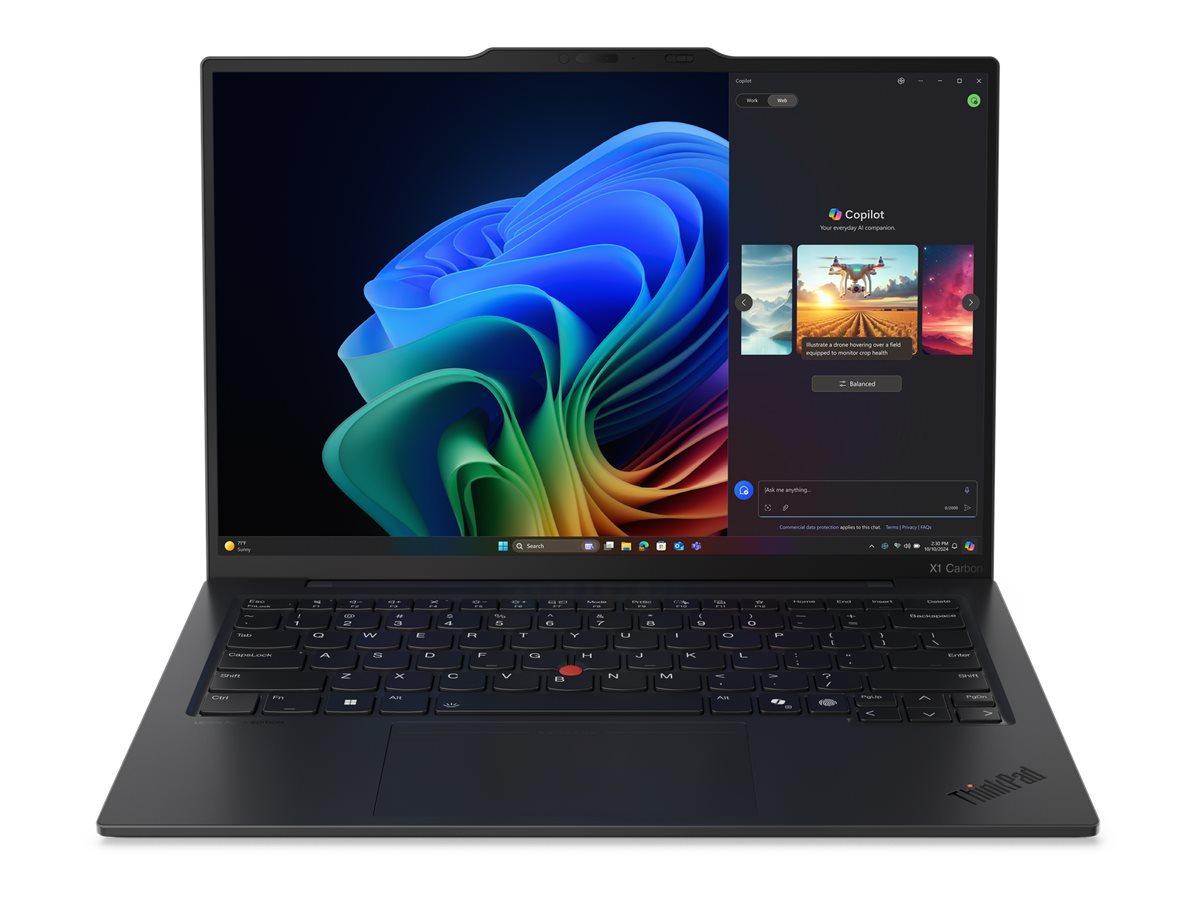

| Product Description | Lenovo ThinkPad X1 Carbon Gen 13 - 14" - Intel Core Ultra 7 - 268V - Intel Evo vPro Enterprise Platform - 32 GB RAM - 512 GB SSD - English |
| Product Type | Notebook - 180-degree hinge design |
| Operating System | Win 11 Pro - English |
| Platform Technology | Intel Evo vPro Enterprise Platform |
| Processor | Intel Core Ultra 7 (Series 2) - 268V / 2.2 GHz, up to 5 GHz / 12 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 47 TOPS |
| Memory | 32 GB LPDDR5X (provided memory is soldered) |
| Storage | 512 GB SSD - TCG Opal Encryption 2, NVMe |
| Display | 14" OLED 2880 x 1800 / 2.8K @ 120 Hz |
| Graphics | Intel Arc Graphics 140V |
| Input Device | TrackPoint, UltraNav |
| Keyboard | English |
| Keyboard Backlight | Yes |
| Integrated Webcam | Yes |
| Microsoft Copilot | Yes |
| Copilot+ PC | Yes |
| Networking | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader |
| Color | Black paint |
| Dimensions (WxDxH) | 12.3 in x 8.5 in x 0.6 in |
| Weight | 34.78 oz |
| Localization | Language: English / region: United States |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold, EPEAT Climate+ |
| Carbon Footprint | 172 kg carbon emissions |
| Manufacturer Warranty | Limited warranty - 1 year - pick-up and return |
| General | |
| Product Type | Notebook - 180-degree hinge design |
| Operating System | Windows 11 Pro - English |
| Memory | |
| RAM | 32 GB (provided memory is soldered) |
| Technology | LPDDR5X SDRAM |
| Speed | 4267 MHz |
| Rated Speed | 4267 MHz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - pick-up and return |
| Miscellaneous | |
| Color | Black paint |
| Case Material | Carbon fiber (top), aluminum (bottom) |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader |
| Features | NVMe password, power-on password, administrator password, system password, certificate based BIOS authentication, FIDO (Fast Identity Online) authentication, self-healing BIOS, RapidCharge, MIL-STD-810H tested |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington nano security slot |
| Included Accessories | 65W USB-C slim GaN power adapter |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 6, Energy-Related Products (ErP) Lot 26, TCO Certified 10.0, TCG Certified, FIPS 140-3, Eyesafe Certified 2.0, SGS High Performance Al PC |
| Localization | Language: English / region: United States |
| Manufacturer Selling Program | Lenovo TopSeller |
| Storage | |
| Main Storage | 512 GB SSD M.2 2280 PCIe 4.0 x4 - TCG Opal Encryption 2, NVM Express (NVMe) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 95% |
| Software | |
| Software Included | Intel Connectivity Performance Suite, Lenovo AI Now |
| Microsoft Copilot | Yes |
| Copilot+ PC | Yes |
| Battery | |
| Technology | Lithium polymer |
| Capacity | 57 Wh |
| Display | |
| Type | 14" OLED |
| Resolution | 2880 x 1800 (2.8K) |
| V-Sync Rate at Max Res. | 120 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 400 cd/m² |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +85 / -85 |
| Color Gamut | 100% DCI-P3 |
| Features | Anti-glare, anti-reflective, anti-smudge, HDR 500 True Black, Dolby Vision, Eyesafe technology, 89.2% screen-to-body ratio |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Wireless Controller | Intel WI-FI 7 BE201 |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 12.3 in x 8.5 in x 0.6 in |
| Weight | 34.78 oz |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 2) 268V / 2.2 GHz |
| Max Turbo Speed | 5 GHz |
| Number of Cores | 8-core |
| Performance Cores | 4 |
| Efficient Cores | 4 |
| Cache | 12 MB |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 47 TOPS |
| Platform Technology | Intel Evo vPro Enterprise Platform |
| Features | Integrated memory controller |
| Audio & Video | |
| Graphics Processor | Intel Arc Graphics 140V - up to |
| Max Monitors Supported | 2 external monitor(s) |
| Video System Features | Functions as Intel graphics (for single-channel memory), DirectX 12.2 |
| Camera | Yes - 1080p |
| Camera Features | Privacy shutter, Windows Hello, fixed focus, Temporal Noise Reduction, Discrete IR |
| Sound | Stereo speakers, dual array microphone |
| Codec | Realtek ALC713 |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Audio Features | Input: Dolby Voice, 360° far-field |
| Input | |
| Type | Keyboard, TrackPoint, UltraNav |
| Keyboard Backlight | Yes |
| Keyboard Layout | English |
| Features | Spill-resistant, multi-touch touchpad, glass touchpad, air intake key design, haptic touchpad, Copilot key |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 Watt |
| Connections & Expansion | |
| Interfaces Details | USB 3.2 Gen 1 ¦ USB 3.2 Gen 1 (Always On) ¦ 2 x USB4 (supports Thunderbolt 4, DisplayPort 2.1 Alt Mode) (Power Delivery 3.0) ¦ HDMI (4K support) ¦ Headphone/microphone combo jack |
| Sustainability Information | |
| TCO Certified | - |
| EPEAT Compliant | EPEAT Gold |
| EPEAT Climate+ | Yes |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 172 kg carbon emissions |
| Total CF/unit Standard Deviation (kg CO2e) | 25 |
| PAIA Version | 1.4.6 |
| Packaging Recycled Content | Plastic-free |
