All-in-one Celeron 7305L - RAM 8 GB - SSD 256 GB - NVMe - UHD Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3 - 11 IoT Enterprise 2024 LTSC (includes Win 10 IoT License) - monitor: LED 21.5" 1920 x 1080 (Full HD) @ 60 Hz touchscreen - black
| Main Specifications | |
|---|---|
| Product Description | Elo I-Series 3 - all-in-one Celeron 7305L 1.1 GHz - 8 GB - SSD 256 GB - LED 21.5" |
| Type | Personal computer - all-in-one |
| Processor | Intel Celeron 7305L / 1.1 GHz (5-core) |
| Processor Main Features | Intel Smart Cache, 5 Threads |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Monitor | 21.5" - LED - 1920 x 1080 (Full HD) @ 60 Hz - 16:9 - touchscreen |
| Graphics Controller | Intel UHD Graphics |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, Wi-Fi 5, Wi-Fi 6, 802.11b/g/n, Bluetooth 5.3 |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 IoT Enterprise 2024 LTSC (Windows 10 IoT Enterprise available through downgrade rights from Windows 11 IoT Enterprise) + Windows 10 IoT Enterprise License |
| Color | Black |
| Dimensions (WxDxH) | 20.7 in x 1.6 in x 12.6 in |
| Weight | 13.23 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | Dual 2 W speakers |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 4 x USB 3.0 ¦ 4 x USB 2.0 - micro-USB ¦ 1 x PoweredUSB (24 V) ¦ 2 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 (powered) ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power adapter, cable tie, CFD mounting screw, VESA mounting screw, VESA cover |
| Cables Included | RJ-50 to DB-9 cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |

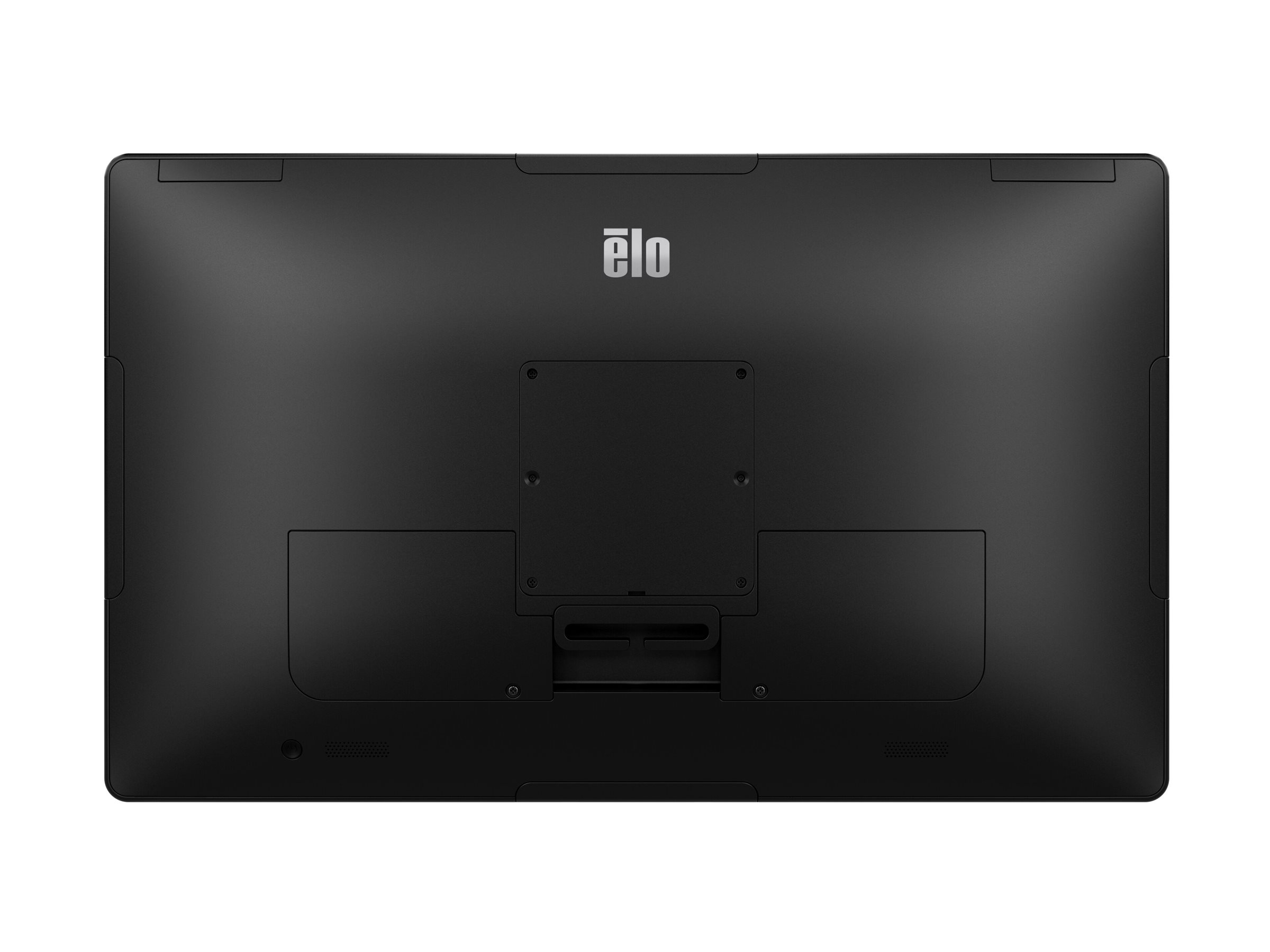

| VESA Mounting Interface | 100 x 100 mm, VESA |
| Compliant Standards | cUL, UL, IC, FCC, TUV, RCM, UKCA, CB, Argentina S-Mark, ANATEL, VCCI, MIC, CCC, SRRC, Mexico NOM, CoC, R-NZ, RoHS, IP54 |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.3 |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100/240 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Power Consumption Operational | 39 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Power Consumption Sleep | 5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED - IPS |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 21.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Response Time | 14 ms |
| Image Brightness | 212.5 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | TouchPro Pro Projected Capacitive (PCAP) technology, 16.7 million colors, 50,000 backlight life |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise 2024 LTSC (Windows 10 IoT Enterprise available through downgrade rights from Windows 11 IoT Enterprise) + Windows 10 IoT Enterprise License |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| SSD Endurance | 160 TB |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 20.7 in |
| Depth | 1.6 in |
| Height | 12.6 in |
| Weight | 13.23 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 25.3 in |
| Shipping Depth | 8.4 in |
| Shipping Height | 17.3 in |
| Shipping Weight | 19 lbs |
| Processor / Chipset | |
| CPU | Intel Celeron 7305L |
| Clock Speed | 1.1 GHz |
| Number of Cores | 5-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache, 5 Threads |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
