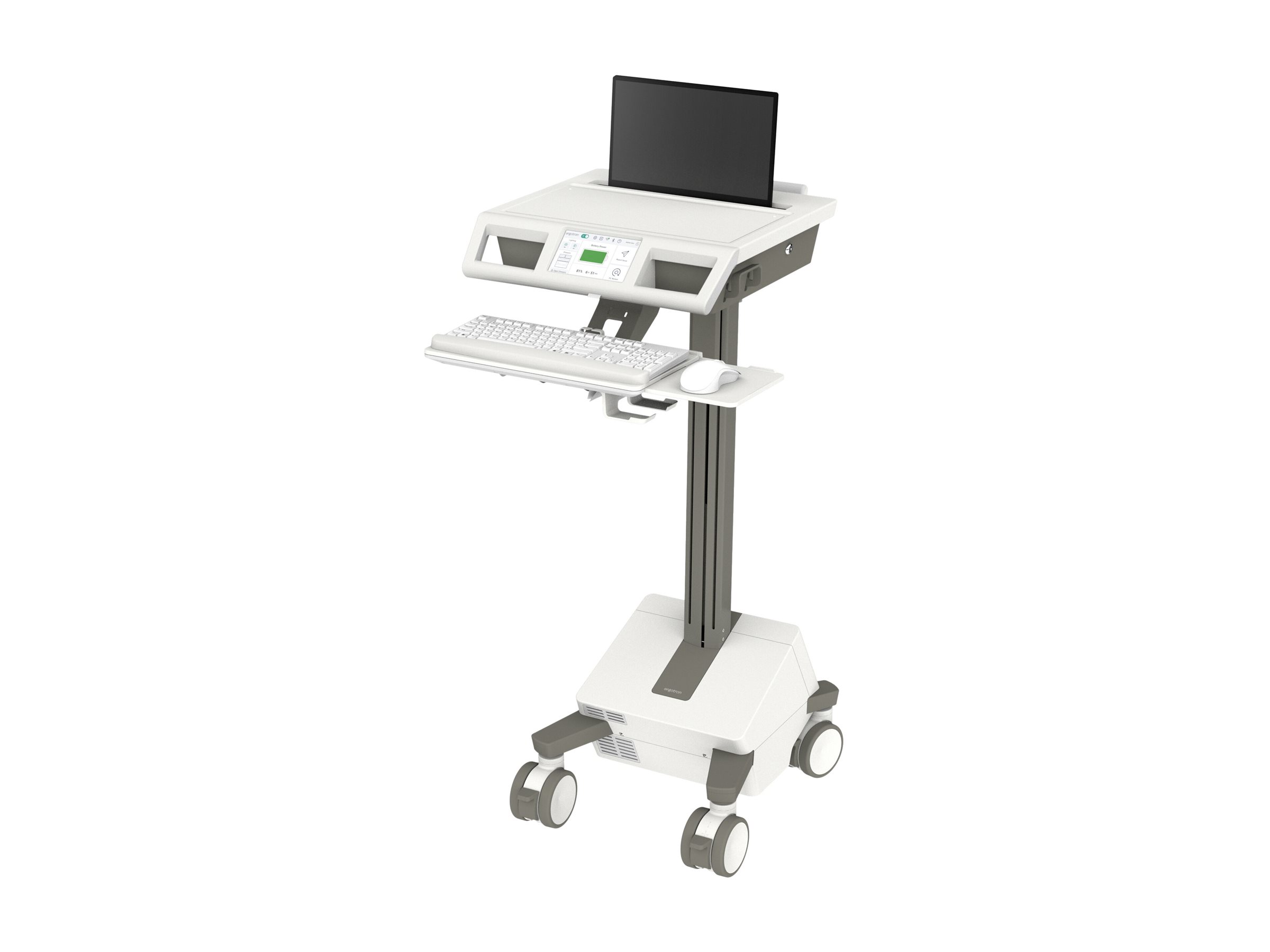

Cart - Electric Lift - for LCD display / PC equipment - DC power, US/CA/MX - lockable - medical - screen size: 24" - output: DC 5 - 24 V - 46.8 Ah - lithium iron phosphate - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Ergotron Mosaic cart - Electric Lift - for LCD display / keyboard / mouse / CPU - DC power, US/CA/MX - TAA Compliant |
| Product Type | Cart (Electric Lift) - medical - lockable |
| Integrated Devices | Touchscreen control panel, 4-ports USB hub, 4 outlet power strip, worksurface light, document holder, 2 handles, keyboard tray, slide-out mouse tray, mouse holder, wrist rest, keyboard light, Proximity RFID reader |
| Tilt | 35° |
| Pan | 180° |
| Lift | 25 in |
| Rotation | 360° |
| Adjustments | Height, tilt, pan, rotation, lift |
| Weight | 92.59 lbs |
| Localization | United States, Canada, Mexico |
| Voltage Required | AC 120 V |
| Recommended Use | LCD display / keyboard / mouse / CPU |
| Recommended Display Size | 24" |
| Battery | Lithium iron phosphate - 46.8 Ah |
| Voltage Provided | DC 5 - 24 V |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Max Load Weight | 30.9 lbs |
| Wheels Qty | 4 |
| TAA Compliant | Yes |
| Package Content | Mounting kit, power cord, cable hook |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Weight | 92.59 lbs |
| Localization | United States, Canada, Mexico |
| Package Content | Mounting kit, power cord, cable hook |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - mechanical components - 5 years ¦ Limited warranty - electrical components - 5 years ¦ Limited warranty - battery defects - 3 years |
| Battery | |
| Technology | Lithium iron phosphate |
| Capacity | 46.8 Ah |
| Recharge Time | 4 hour(s) |
| Power Device | |
| Input Voltage | AC 120 V |
| Output | DC 5 - 24 V / 5 A |
| Power Provided | 150 Watt |
| AV Furniture | |
| Type | Cart - medical |
| Design | Electric Lift |
| Recommended Use | LCD display / keyboard / mouse / CPU |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Integrated Devices | Touchscreen control panel, 4-ports USB hub, 4 outlet power strip, worksurface light, document holder, 2 handles, keyboard tray, slide-out mouse tray, mouse holder, wrist rest, keyboard light, Proximity RFID reader |
| Drawers Qty | 1 |
| Cable Management | Integrated cable management |
| Lockable | Yes |
| Recommended Display Size | 24" |
| Tilt | 35° |
| Pan | 180° |
| Lift | 25 in |
| Rotation | 360° |
| Adjustments | Height, tilt, pan, rotation, lift |
| Max Load Weight | 30.9 lbs |
| Wheels Qty | 4 |
| Brakes Qty | 4 |
| TAA Compliant | Yes |
| Dimensions & Weight Details | |
| Compliant Standards | ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No. 60601-1, CISPR 11, IEC 61000-3-2, IEC 61000-3-3, ESD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-11, IEC 61000-4-8, IEC 61000-4-3, ICES-003, FCC Part 15, ISED, WEEE, RCM |
