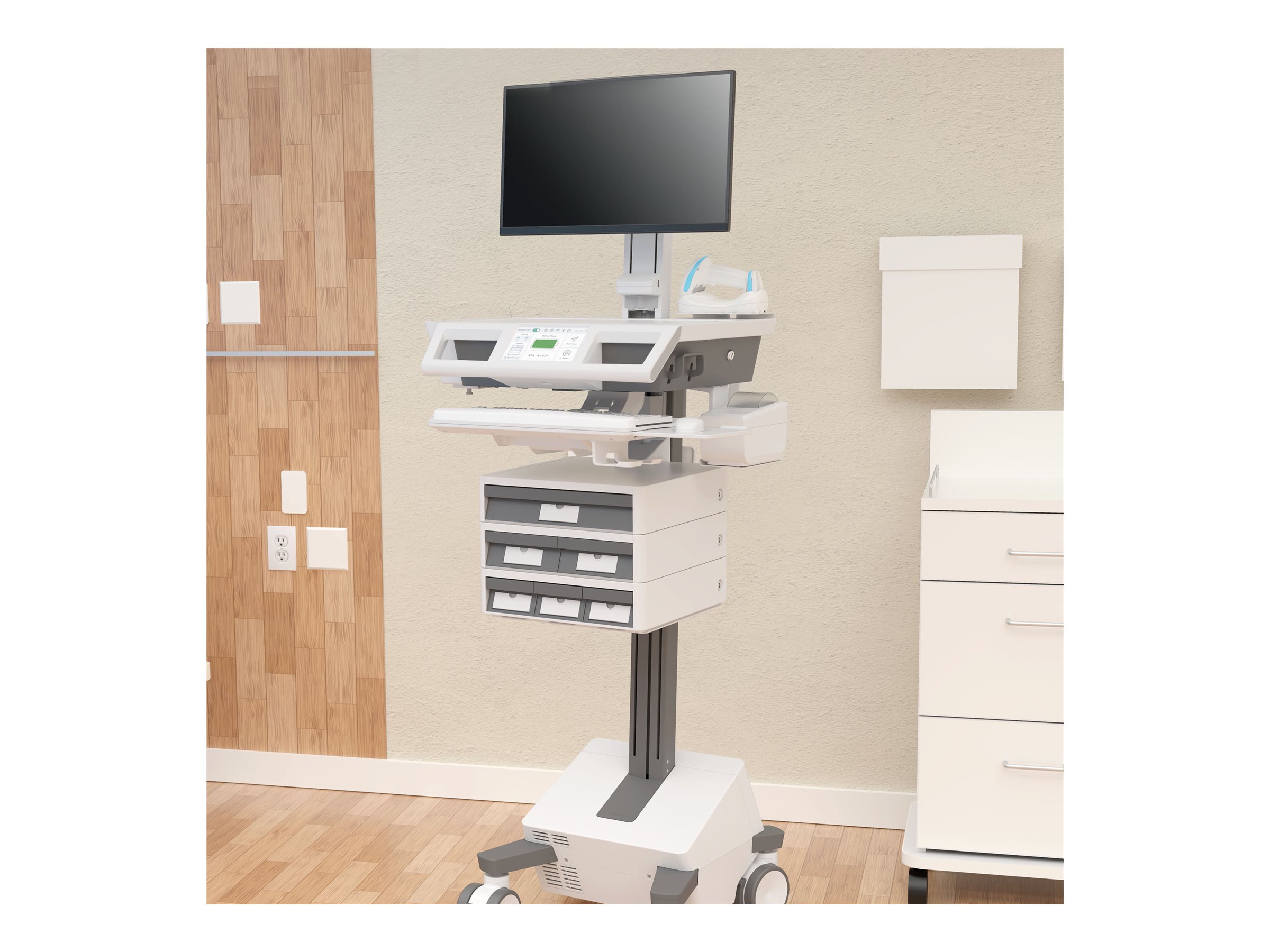

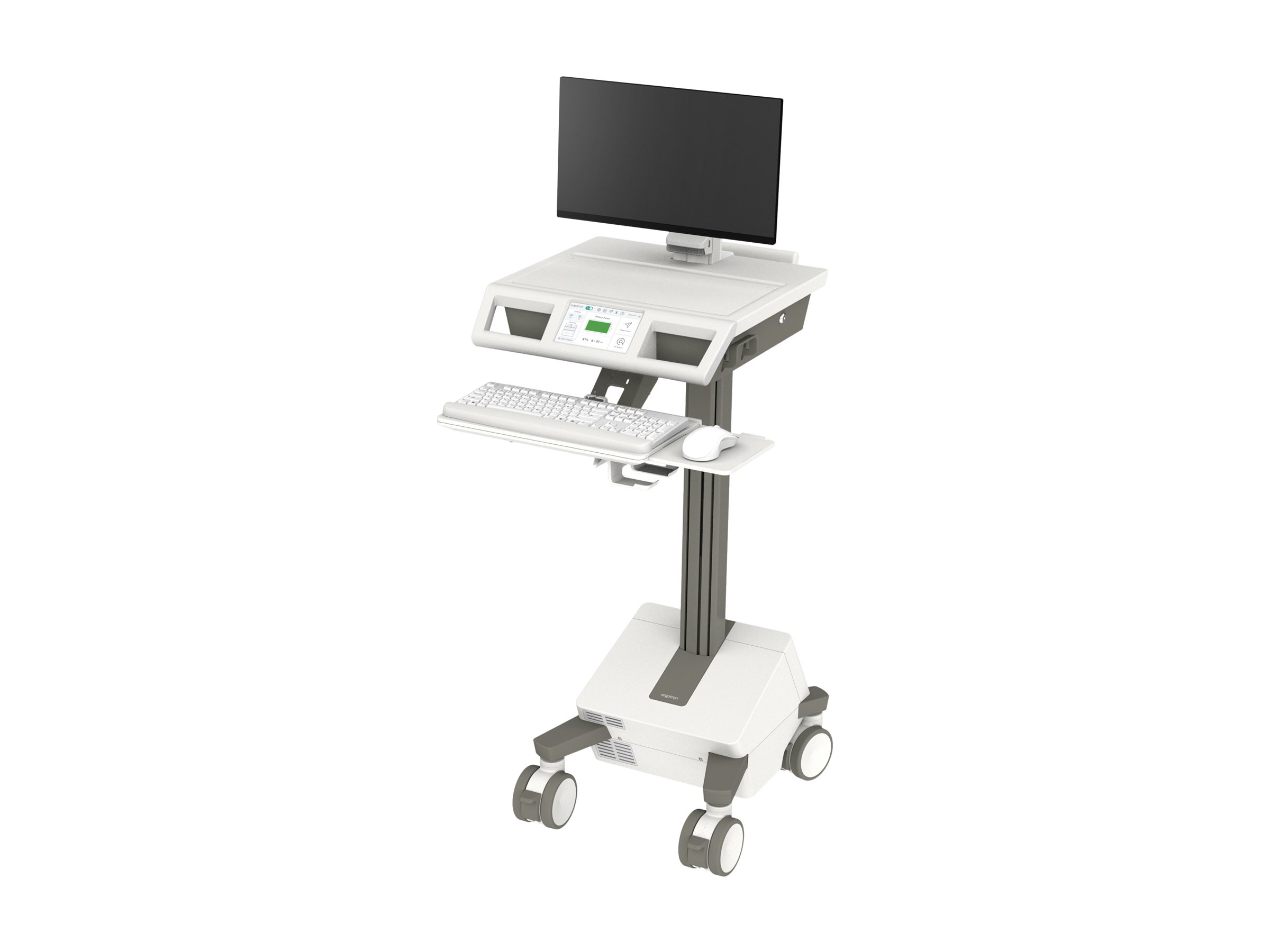

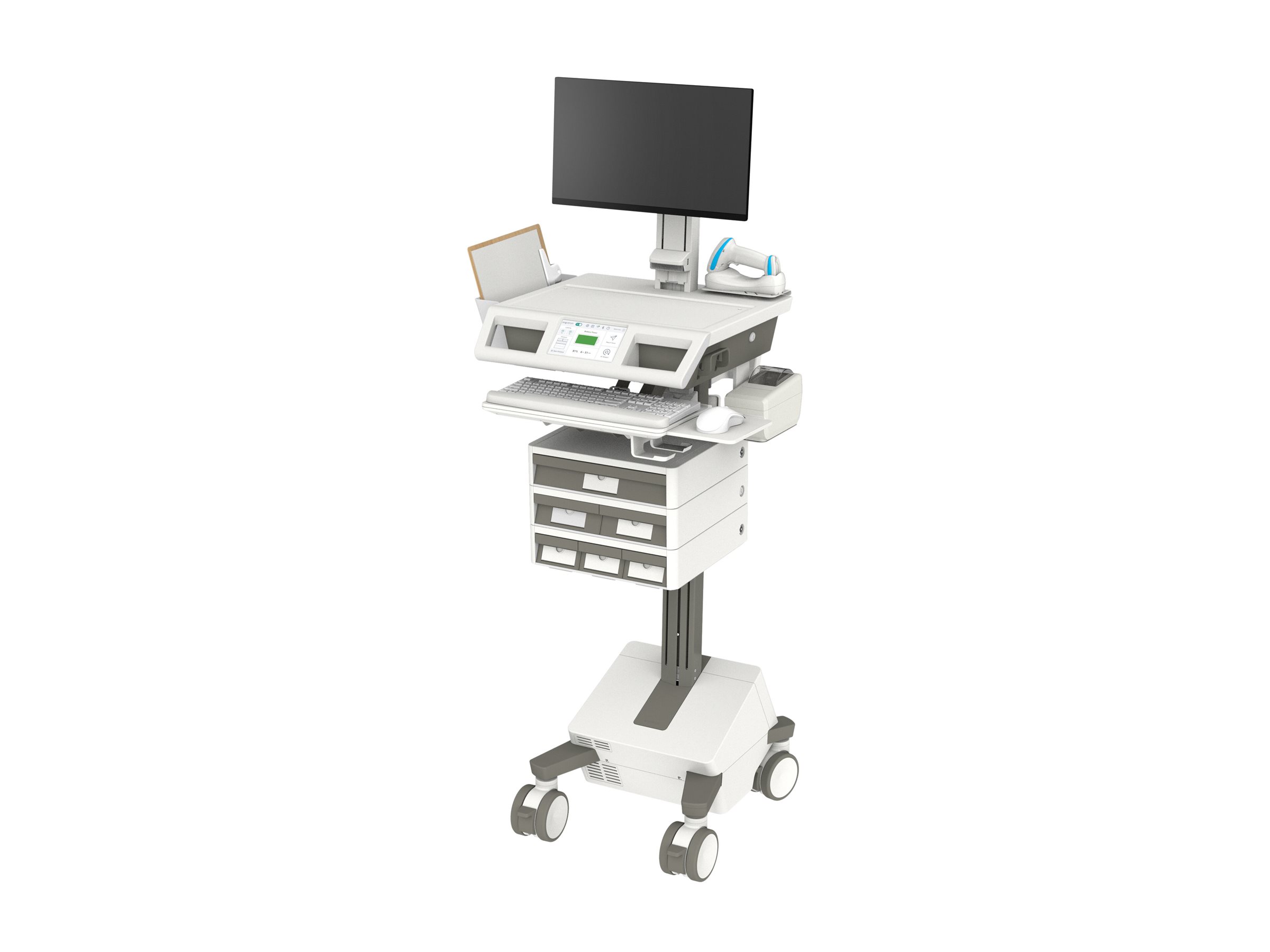

Cart - Electric Lift - for LCD display / PC equipment - DC power, US/CA/MX - lockable - medical - screen size: 24" - output: DC 5 - 24 V - 46.8 Ah - lithium iron phosphate - TAA Compliant
Mosaic provides flexibility, customization and scalability for healthcare systems seeking a new standard. Configure a medical cart that matches your needs.
The electric lift mechanism allows for smooth height adjustments up to 63.5 cm, helping users find the ideal viewing position with ease.

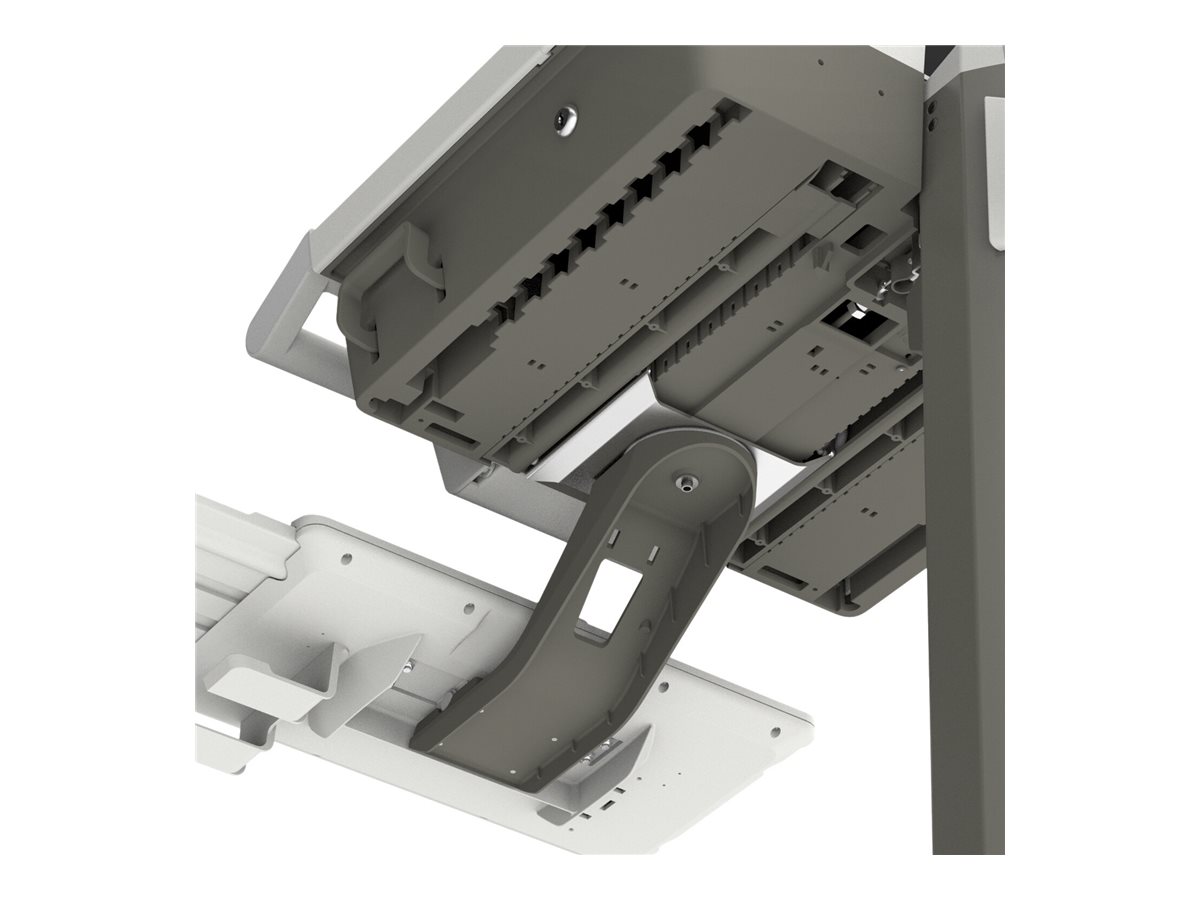

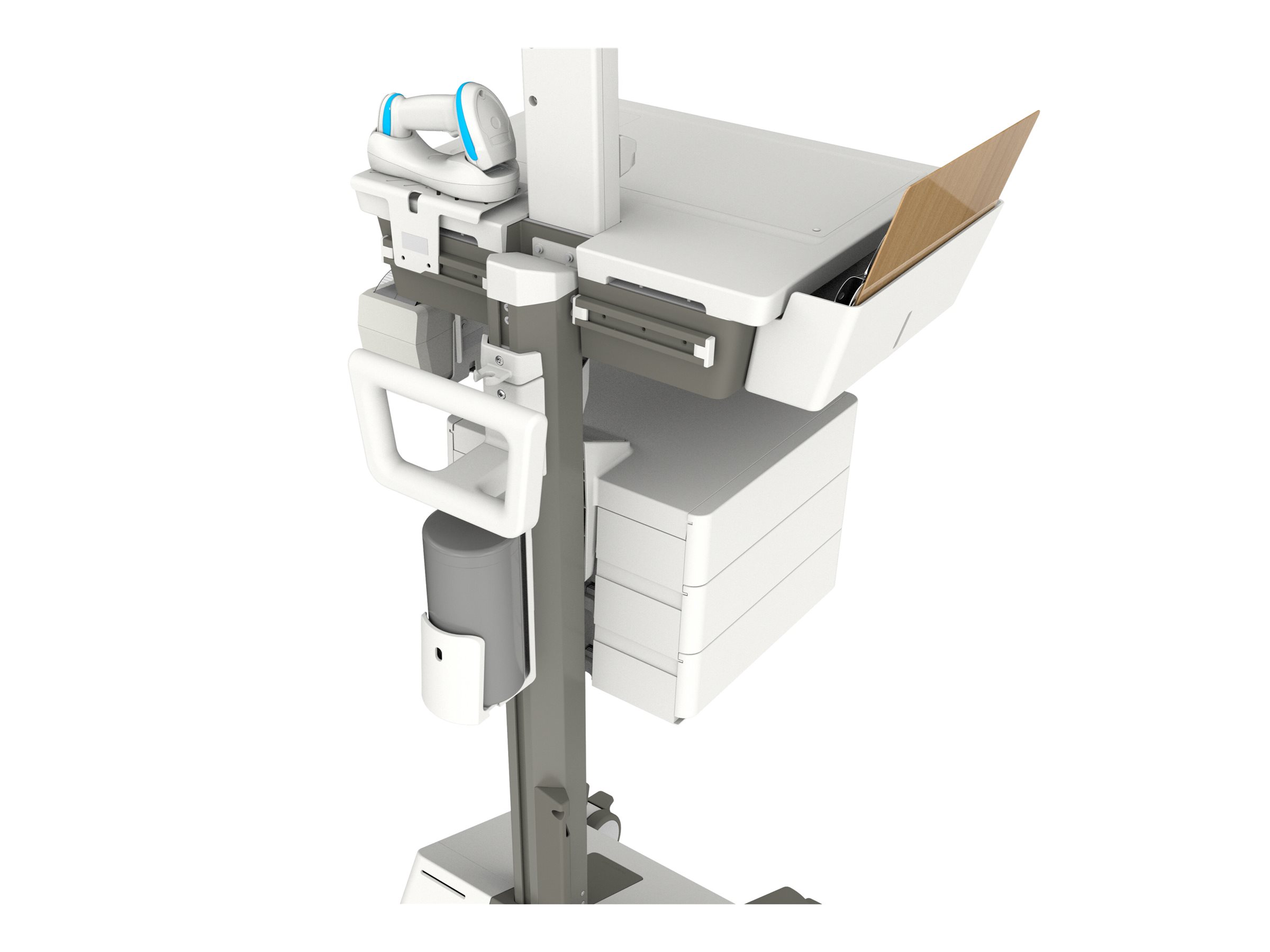

With five drawers and multiple integrated devices such as a keyboard tray, mouse holder, and document holder, clutter is minimized in any workspace.
Equipped with four wheels for easy movement, the cart also features brake locks to ensure stability when stationary.
Integrated features include a 4-ports USB hub, power strip, and keyboard light, providing necessary support for productivity without additional clutter.
The cart adheres to numerous compliance standards, ensuring safety and reliability in various applications, particularly in medical settings.
| Main Specifications | |
|---|---|
| Product Description | Ergotron Mosaic cart - Electric Lift - for LCD display / keyboard / mouse / CPU - DC power, US/CA/MX - TAA Compliant |
| Product Type | Cart (Electric Lift) - medical - lockable |
| Integrated Devices | Touchscreen control panel, 4-ports USB hub, 4 outlet power strip, worksurface light, document holder, 2 handles, keyboard tray, slide-out mouse tray, mouse holder, wrist rest, keyboard light, Proximity RFID reader |
| Tilt | 35° |
| Pan | 180° |
| Lift | 25 in |
| Rotation | 360° |
| Adjustments | Height, tilt, pan, rotation, lift |
| Weight | 92.59 lbs |
| Localization | United States, Canada, Mexico |
| Voltage Required | AC 120 V |
| Recommended Use | LCD display / keyboard / mouse / CPU |
| Recommended Display Size | 24" |
| Battery | Lithium iron phosphate - 46.8 Ah |
| Voltage Provided | DC 5 - 24 V |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Max Load Weight | 30.9 lbs |
| Wheels Qty | 4 |
| TAA Compliant | Yes |
| Package Content | Mounting kit, power cord, cable hook |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Weight | 92.59 lbs |
| Localization | United States, Canada, Mexico |
| Package Content | Mounting kit, power cord, cable hook |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - mechanical components - 5 years ¦ Limited warranty - electrical components - 5 years ¦ Limited warranty - battery defects - 3 years |
| Battery | |
| Technology | Lithium iron phosphate |
| Capacity | 46.8 Ah |
| Recharge Time | 4 hour(s) |
| Power Device | |
| Input Voltage | AC 120 V |
| Output | DC 5 - 24 V / 5 A |
| Power Provided | 150 Watt |
| AV Furniture | |
| Type | Cart - medical |
| Design | Electric Lift |
| Recommended Use | LCD display / keyboard / mouse / CPU |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Integrated Devices | Touchscreen control panel, 4-ports USB hub, 4 outlet power strip, worksurface light, document holder, 2 handles, keyboard tray, slide-out mouse tray, mouse holder, wrist rest, keyboard light, Proximity RFID reader |
| Drawers Qty | 5 |
| Cable Management | Integrated cable management |
| Lockable | Yes |
| Recommended Display Size | 24" |
| Tilt | 35° |
| Pan | 180° |
| Lift | 25 in |
| Rotation | 360° |
| Adjustments | Height, tilt, pan, rotation, lift |
| Max Load Weight | 30.9 lbs |
| Wheels Qty | 4 |
| Brakes Qty | 4 |
| TAA Compliant | Yes |
| Dimensions & Weight Details | |
| Compliant Standards | ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No. 60601-1, CISPR 11, IEC 61000-3-2, IEC 61000-3-3, ESD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-11, IEC 61000-4-8, IEC 61000-4-3, ICES-003, FCC Part 15, ISED, WEEE, RCM |
