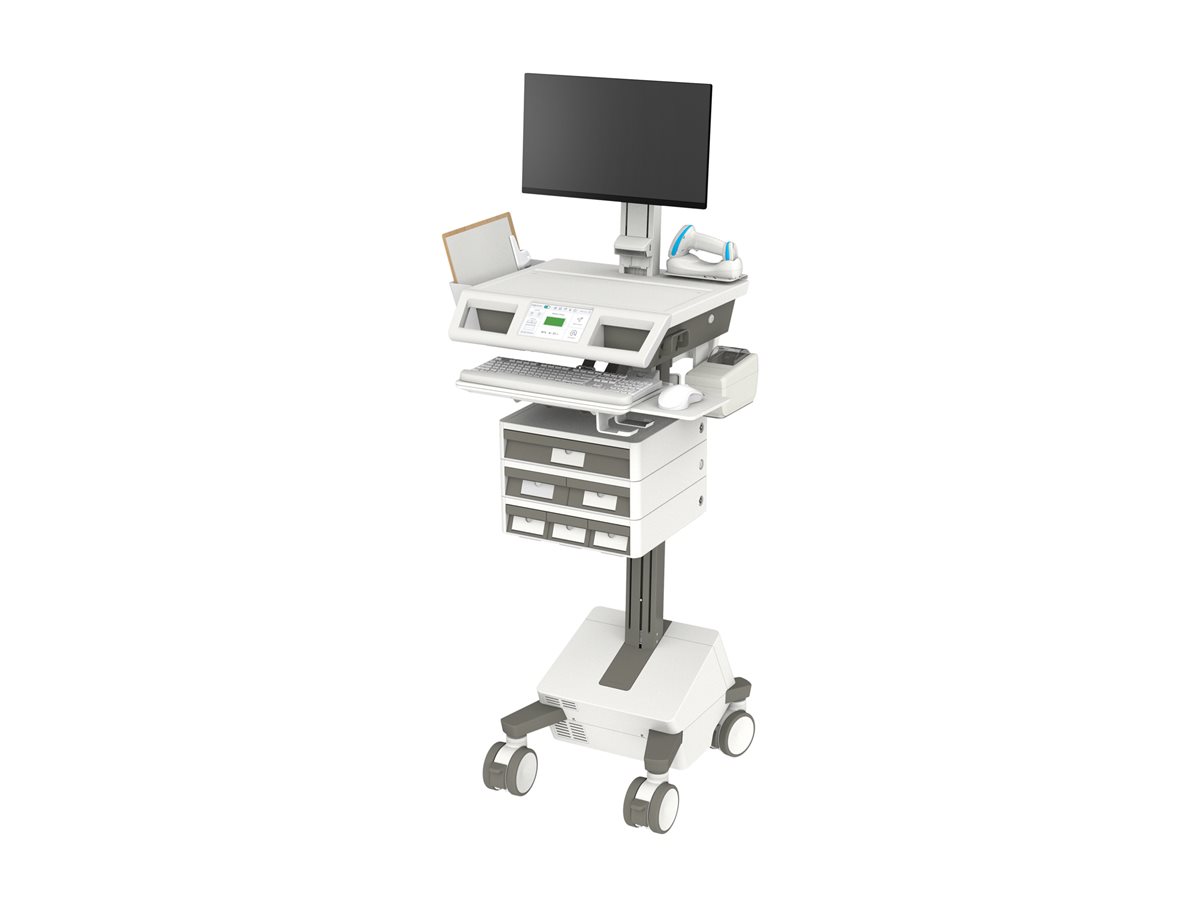

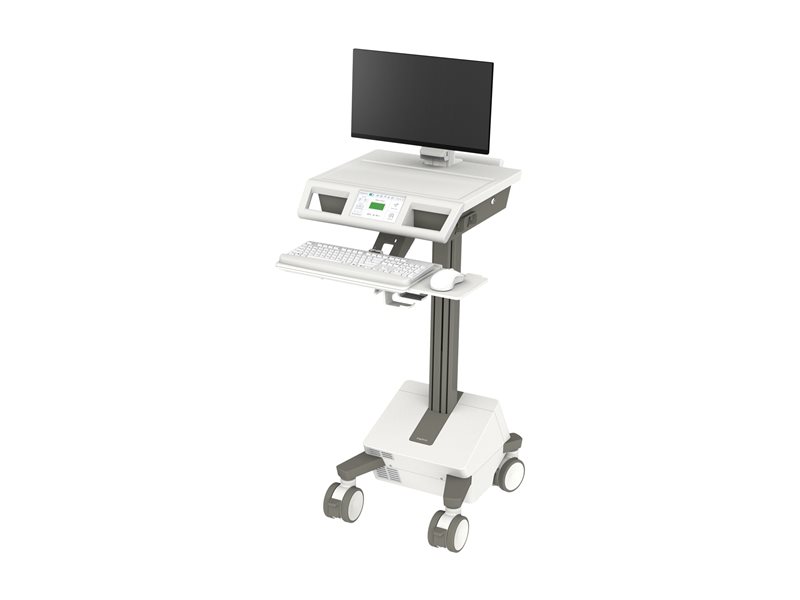

Cart - for LCD display / PC equipment - Tier 1 Std 2, US/CA/MX - lockable - medical - screen size: up to 27" - output: AC 120 V - 45 Ah - lithium iron phosphate - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Ergotron Mosaic cart - for LCD display / keyboard / mouse - Tier 1 Std 2, US/CA/MX - TAA Compliant |
| Product Type | Cart - medical - lockable |
| Integrated Devices | 7" touchscreen, worksurface light, Proximity RFID reader, keyboard tray, wrist rest, 2 handles, slide-out mouse tray, 4-ports USB hub, keyboard light, document holder |
| Tilt | -5° to 30° |
| Pan | 180° |
| Lift | 25 in |
| Rotation | 360° |
| Adjustments | Height, tilt, pan, rotation |
| Localization | Canada, Mexico, United States |
| Voltage Required | AC 100-120 V |
| Recommended Use | LCD display / keyboard / mouse |
| Recommended Display Size | Up to 27" |
| Battery | Lithium iron phosphate - 45 Ah |
| Voltage Provided | AC 120 V |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Wheels Qty | 4 |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Localization | Canada, Mexico, United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - mechanical components - 5 years ¦ Limited warranty - electrical components - 5 years |
| Battery | |
| Technology | Lithium iron phosphate |
| Capacity | 45 Ah |
| Power Device | |
| Input Voltage | AC 100-120 V |
| Output | AC 120 V |
| Power Provided | 150 watt |
| AV Furniture | |
| Type | Cart - medical |
| Recommended Use | LCD display / keyboard / mouse |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Integrated Devices | 7" touchscreen, worksurface light, Proximity RFID reader, keyboard tray, wrist rest, 2 handles, slide-out mouse tray, 4-ports USB hub, keyboard light, document holder |
| Drawers Qty | 2 |
| Cable Management | Integrated cable management |
| Lockable | Yes |
| Recommended Display Size | Up to 27" |
| Tilt | -5° to 30° |
| Pan | 180° |
| Lift | 25 in |
| Rotation | 360° |
| Adjustments | Height, tilt, pan, rotation |
| Wheels Qty | 4 |
| Wheel Diameter | 5 in |
| Brakes Qty | 4 |
| TAA Compliant | Yes |
| Dimensions & Weight Details | |
| Compliant Standards | GSA, RoHS, REACH, WEEE, Directive 94/62/EC, ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1 |
