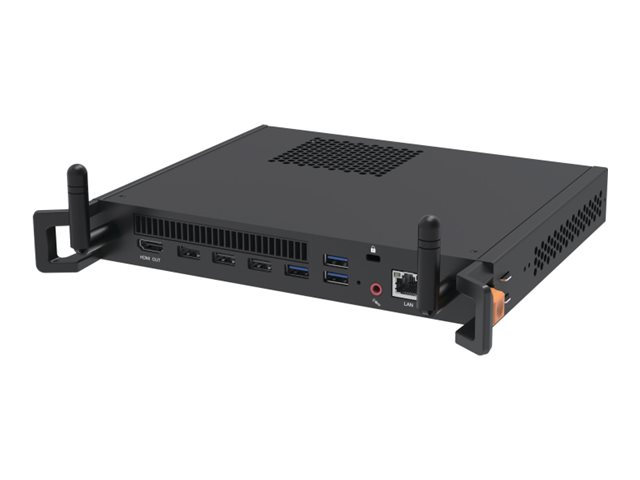

Slot-in digital signage player - 16 GB RAM - Intel Core i7 - 512 GB - Windows 11 Pro - 4K UHD (2160p) - 30 fps
| Main Specifications | |
|---|---|
| Product Description | MAXHUB MT71F - slot-in digital signage player |
| Device Type | Slot-in digital signage player |
| Dimensions (WxDxH) | 9.6 in x 8.2 in x 1.3 in |
| Processor | Intel Core i7 i7-12650H 4.7 GHz 10-core x 1 |
| RAM | 16 GB - DDR4 SDRAM |
| Graphics | Intel UHD Graphics |
| Hard Drive | 512 GB |
| Resolution | 4K UHD (2160p) - 30 fps |
| Interfaces | USB 3.0, HDMI, USB 2.0, Gigabit Ethernet |
| OS Provided | Windows 11 Pro |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Slot-in digital signage player |
| Width | 9.6 in |
| Depth | 8.2 in |
| Height | 1.3 in |
| Weight | 2.65 lbs |
| OS Provided | Windows 11 Pro |
| Interfaces | USB 3.0, HDMI, USB 2.0, Gigabit Ethernet |
| Key Features | Digital audio player, digital photo viewer, digital video player |
| Features | Trusted Platform Module (TPM 2.0) Security Chip, Kensington security slot, touchscreen compatible |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Processor | |
| Manufacturer | Intel |
| Type | Core i7 |
| Installed Qty | 1 |
| Processor Number | I7-12650H |
| Number of Cores | 10-core |
| Clock Speed | 4.7 GHz |
| RAM | |
| Technology | DDR4 SDRAM |
| Installed Size | 16 GB |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% RH |
| Video | |
| Resolution | 4K UHD (2160p) |
| Frame Rate | 30 fps |
| Software | |
| Software Included | MAXHUB OS |
| Connectivity | |
| Connections | HDMI output ¦ 3 x USB 3.0 - Type A ¦ 3 x USB 2.0 - Type A ¦ LAN ¦ Microphone - mini-jack |
| Video Output | |
| Graphics Processor | Intel UHD Graphics |
| Power Device | |
| Input | DC 18 V |
| Memory / Storage | |
| Storage Drive Capacity | 512 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.4 in |
| Shipping Depth | 10.1 in |
| Shipping Height | 2.8 in |
| Shipping Weight | 3.95 lbs |
| Digital Storage | |
| Capacity | 512 GB |
