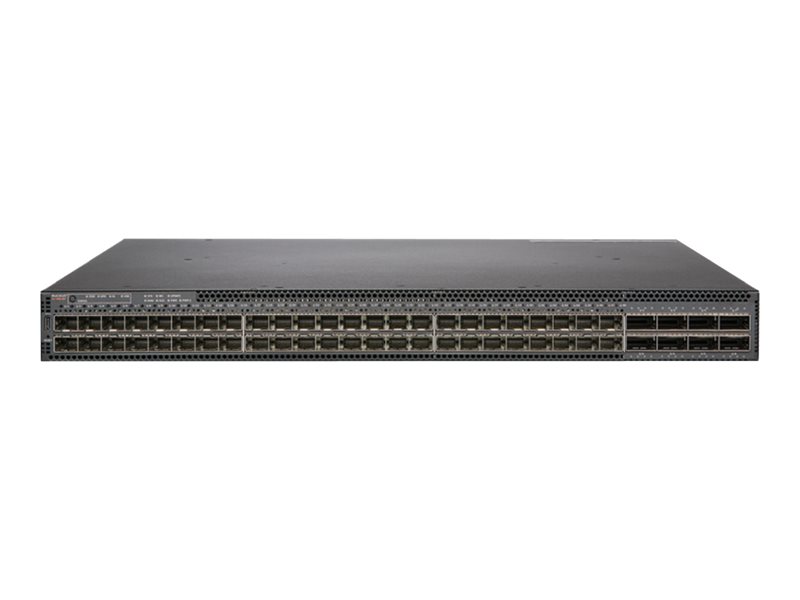

Switch - L3 - managed - 48 x 1/10/25 Gigabit SFP28 + 8 x 40 Gigabit / 100 Gigabit QSFP28 - front to back airflow - rack-mountable - TAA Compliant - with 5 years Remote Support
| Main Specifications | |
|---|---|
| Product Description | Ruckus ICX 7850-48F - switch - 48 ports - managed - rack-mountable - TAA Compliant |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Bundled Services | 5 years Remote Support |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP28 + 8 x 40 Gigabit / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 4 Tbps ¦ Forwarding capacity: 2 Bpps ¦ Aggregate stacking bandwidth: 9.6 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 16 ¦ Trunk groups: 256 ¦ Latency: 0.8 ?s ¦ Priority QoS queues: 10 ¦ Layer 2 multicast groups: 8192 ¦ Layer 3 multicast groups: 8192 ¦ VRF instances: 64 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3, ECMP, RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, VLAN support, Syslog support, DoS attack prevention, port mirroring, WRR queuing, MAC address filtering, IPv6 support, MRP support, sFlow, VSRP support, MRP-II support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, DOM support, Jumbo Frames support, DHCP server, DAI, TPM, IPv4 support, LLDP support, LACP, MIB, NAC, NDP, SP, tagged VLAN, IGMP proxy, 802.1x authentication, SNMP support, ToS, ISSU, SCP, Link Aggregation, MAC address authentication, protected ports, MCT, ERSPAN, VLAN Tagging, Telnet server, Telnet client, RSTP, SmartZone |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1BR |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 17.5 in x 1.7 in |
| Weight | 19.4 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Bundled Services | 5 years Remote Support |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP28 + 8 x 40 Gigabit / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 4 Tbps ¦ Forwarding capacity: 2 Bpps ¦ Aggregate stacking bandwidth: 9.6 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 16 ¦ Trunk groups: 256 ¦ Latency: 0.8 ?s ¦ Priority QoS queues: 10 ¦ Layer 2 multicast groups: 8192 ¦ Layer 3 multicast groups: 8192 ¦ VRF instances: 64 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3, ECMP, RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, VLAN support, Syslog support, DoS attack prevention, port mirroring, WRR queuing, MAC address filtering, IPv6 support, MRP support, sFlow, VSRP support, MRP-II support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, DOM support, Jumbo Frames support, DHCP server, DAI, TPM, IPv4 support, LLDP support, LACP, MIB, NAC, NDP, SP, tagged VLAN, IGMP proxy, 802.1x authentication, SNMP support, ToS, ISSU, SCP, Link Aggregation, MAC address authentication, protected ports, MCT, ERSPAN, VLAN Tagging, Telnet server, Telnet client, RSTP, SmartZone |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1BR |
| RAM | 4 GB |
| Flash Memory | 32 GB |
| Built-in Devices | 5 x fans |
| Expansion / Connectivity | |
| Interfaces | 8 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management ¦ 1 x console (USB) Type C ¦ 48 x 1/10/25Gbit LAN SFP28 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 457,244 hours |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 60950-1, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, IEC 68-2-32, IEC 68-2-27 |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 104 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 17.5 in |
| Height | 1.7 in |
| Weight | 19.4 lbs |
