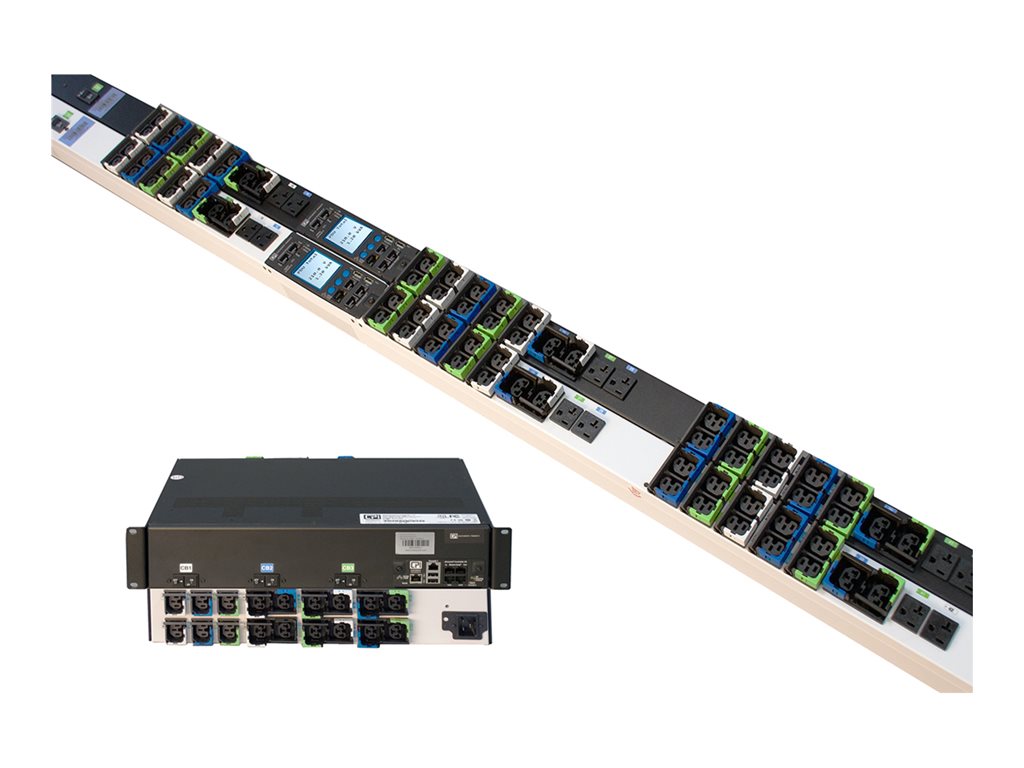

Redundancy Pack - power distribution unit (rack-mountable) - monitored - AC 120/208 V - 5.7 kW - 3-phase - Ethernet 10/100/1000, USB, serial - input: NEMA L21-20P - output connectors: 42 (36 x IEC 60320 C13/C15, 6 x IEC 60320 C19) - 42U - 10 ft cord - black, glacier white - TAA Compliant (pack of 2)
| Main Specifications | |
|---|---|
| Product Description | CPI eConnect EA-3017-CE - Redundancy Pack - power distribution unit - monitored - 5.7 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Packaged Quantity | 2 (specifications are for single item) |
| Cord Length | 10 ft |
| Rack Size | 42U |
| Weight | 18.08 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 120/208 V |
| Power Capacity | 5.7 kW |
| Input Connectors | 1 x power NEMA L21-20P |
| Output connectors | 36 x power IEC 60320 C13/C15 ¦ 6 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, RESTful API, CLI, LDAP, RADIUS, HTTPS |
| Color | Black, glacier white |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.2 in x 2.3 in x 71.9 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Packaged Quantity | 2 (specifications are for single item) |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Cord Length | 10 ft |
| Color | Black, glacier white |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable |
| Features | Locking outlets |
| Compliant Standards | UL, IEC 62368, RoHS, FCC Part 15 A, EN55022 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, RESTful API, CLI, LDAP, RADIUS, HTTPS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 120/208 V |
| Input Wiring | 3-phase |
| Input Connectors | 1 x power NEMA L21-20P |
| Power Output Connectors Details | 36 x power IEC 60320 C13/C15 ¦ 6 x power IEC 60320 C19 |
| Max Electric Current | 20 A |
| Power Capacity | 5.7 kW |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.3 in |
| Height | 71.9 in |
| Weight | 18.08 lbs |
