IP speaker - for PA system - PoE
| Main Specifications | |
|---|---|
| Product Description | Algo 8180 G2 - IP speaker - for PA system |
| Product Type | IP speaker - for PA system |
| Integrated Memory | Flash - 1 GB |
| Speaker Type | Active |
| Peak Power | 8 watt |
| Nominal Impedance | 8 ohm |
| Amplifier Output Power | D |
| Amplifier | Integrated |
| Interfaces | PoE |
| Audio Formats | WAV, MP3 |
| Power | 48 V |
| Dimensions (WxDxH) | 4 in x 2.6 in x 7 in |
| Weight | 17.64 oz |
| General | |
| Product Type | IP speaker - for PA system |
| Features | Talkback speaker |
| Integrated Memory | Flash - 1 GB |
| Microphone | Yes |
| Miscellaneous | |
| Included Accessories | Snap mount plate |
| Compliant Standards | NFPA 72, NEMA SB-40, RoHS, FCC Class A certified, CISPR 22 Class A, CISPR 24, CSA, UL, EN 60950 |
| Power | |
| Power Source | Power over Ethernet (PoE) |
| Voltage Required | 48 V |
| Power Consumption Operational | 12.95 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Connections | |

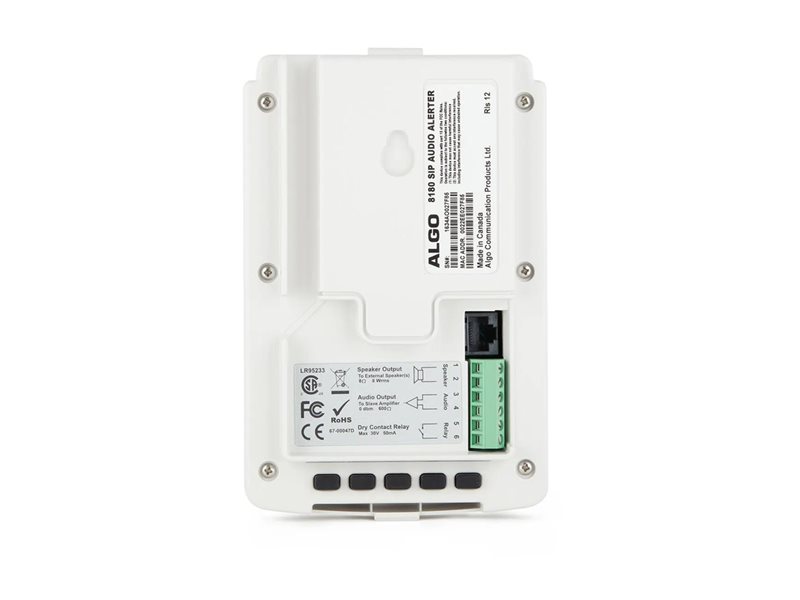

| Connector Type | LAN (RJ-45) ¦ Speakers output (2 pin terminal block) ¦ Audio output (2 pin terminal block) ¦ Relay contact closure port (2 pin terminal block) |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 2.6 in |
| Height | 7 in |
| Weight | 17.64 oz |
| Speaker System | |
| Speaker Type | Active |
| Peak Power | 8 watt |
| Frequency Response (-10dB) | 150 - 13000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 106 dB |
| Amplifier | Integrated |
| Amplifier Class | D |
| Interfaces | IEEE 802.3af (Power over Ethernet) |
| VoIP Protocols | SIP, SIP over TLS, SRTP |
| Voice Codecs | G.722, G.711a-law, G.711?-law, Opus |
| Network Protocols | UDP, TCP, RTP, TLS, SRTP, HTTP, HTTPS, TFTP, FTP, DHCP, RTCP, IPv4, IPv6, Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), IEEE 802.1x, DSCP, STUN, DNS |
| Compatible Software | InformaCast, Syn-Apps, Microsoft Teams, Revolution, Algo Device Management Platform (ADMP) |
| Recommended Placing | Wall-mountable, indoor |
| Audio Formats | WAV, MP3 |
| Speaker System Details | |
| Driver Details | Speaker: full-range driver - 3" |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 24.69 oz |
