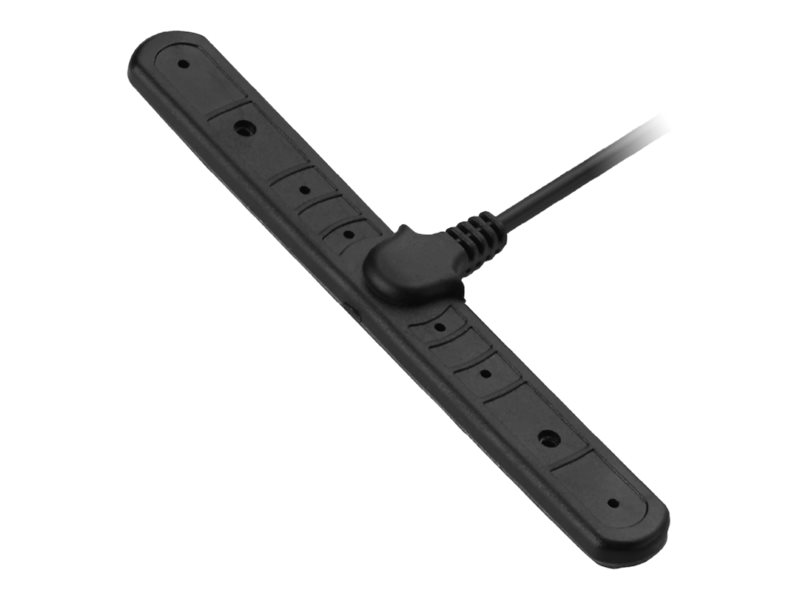

Antenna - T-bar - cellular, IoT, Wi-Fi - omni-directional - adhesive mount, external mounting, glass-mounted, plastic-mounted
| Main Specifications | |
|---|---|
| Product Description | Taoglas Phoenix GSA.8822 - antenna |
| Device Type | Antenna |
| Form Factor | T-bar |
| Intended For | Cellular, IoT, Wi-Fi |
| Antenna Placing / Mounting | Adhesive mount, external mounting, glass-mounted, plastic-mounted |
| Dimensions (WxDxH) | 0.5 in x 4.2 in x 0.3 in |
| Weight | 1.41 oz |
| Compatibility | 5G, 4G, 3G, 2G, UMTS, GSM2600, GSM2100, GSM1900, GSM1800, GSM900, GSM850, GSM700, CDMA, PCS, DCS, LTE, Wi-Fi |
| Frequency Range | 824 - 2170 MHz, 617 - 960 MHz, 1427 - 1518 MHz, 1710 - 2200 MHz, 2400 - 2500 MHz, 2490 - 2690 MHz, 3300 - 5000 MHz, 5150 - 5925 MHz |
| Directivity | Omni-directional |
| Features | Low profile, IP65, dust resistant, water-resistant, linear polarization, VSWR 2:1, RoHS |
| General | |
| Product Type | Antenna |
| Form Factor | T-bar |
| Intended For | Cellular, IoT, Wi-Fi |
| Antenna Placing / Mounting | Adhesive mount, external mounting, glass-mounted, plastic-mounted |
| Width | 0.5 in |
| Depth | 4.2 in |
| Height | 0.3 in |
| Weight | 1.41 oz |
| Product Material | Polyvinyl chloride (PVC) |
| Miscellaneous | |
| Cables Included | Antenna cable - 10 ft |
| Antenna | |
| Compatibility | 5G, 4G, 3G, 2G, UMTS, GSM2600, GSM2100, GSM1900, GSM1800, GSM900, GSM850, GSM700, CDMA, PCS, DCS, LTE, Wi-Fi |
| Frequency Range | 824 - 2170 MHz, 617 - 960 MHz, 1427 - 1518 MHz, 1710 - 2200 MHz, 2400 - 2500 MHz, 2490 - 2690 MHz, 3300 - 5000 MHz, 5150 - 5925 MHz |
| Impedance | 50 Ohm |
| Directivity | Omni-directional |
| Features | Low profile, IP65, dust resistant, water-resistant, linear polarization, VSWR 2:1, RoHS |
| Connector Provided | |
| Type | Antenna - SMA (male) |
