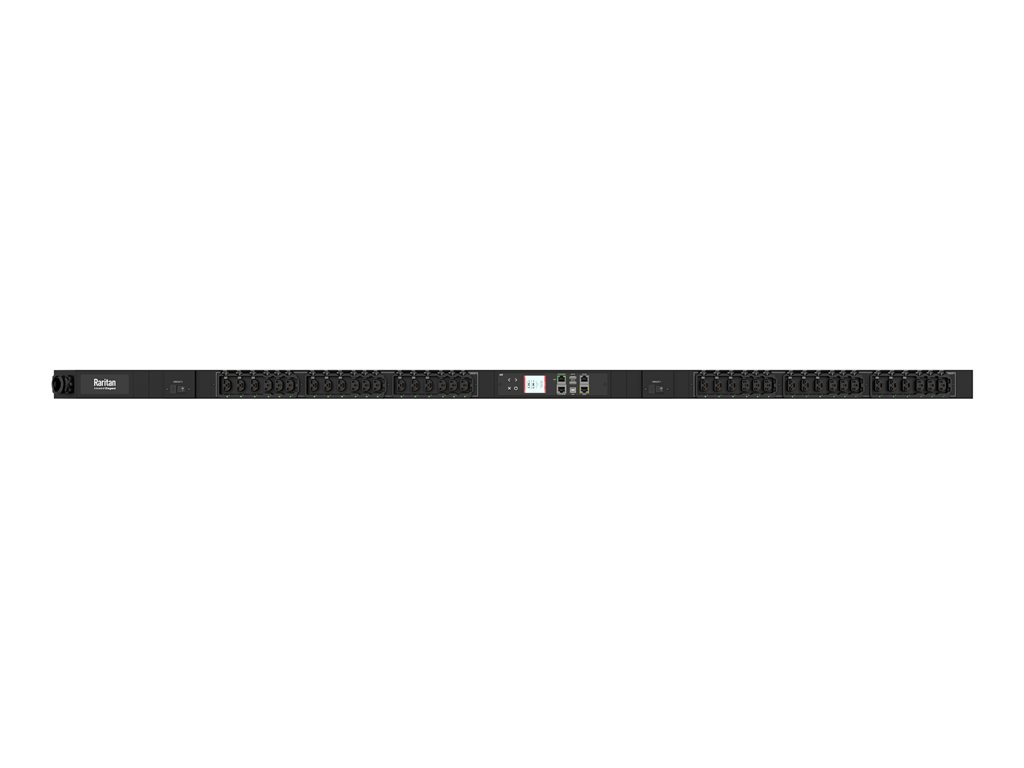

Power distribution strip (rack-mountable) - AC 230 V - 7400 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 2P+PE - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 10 ft cord - black powder coat
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-1057-E7 - power distribution strip - 7400 VA |
| Device Type | Power distribution strip - rack-mountable |
| Cord Length | 10 ft |
| Weight | 11.24 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V |
| Power Capacity | 7400 VA |
| Power Capacity Details | 6.4 kVA at 200 V, 7.7 kVA at 240 V |
| Input Connectors | 1 x power IEC 60309 2P+PE |
| Output connectors | 18 x power IEC 60320 C13 10 A ¦ 18 x power IEC 60320 Cx 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Color | Black powder coat |
| Dimensions (WxDxH) | 2.2 in x 2.6 in x 70.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution strip - rack-mountable |
| Cord Length | 10 ft |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Extruded aluminum housing, tool-less button mount, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, voltage monitoring, current monitoring, crest factor meter, hot-swappable controller, cascadable, locking outlets, Raritan SecureLock Ready, 6 x LEJBXA6-16 overload protection |
| Compliant Standards | ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 2P+PE |
| Power Output Connectors Details | 18 x power IEC 60320 C13 10 A ¦ 18 x power IEC 60320 Cx 16 A |
| Output Voltage | AC 230 V |
| Max Electric Current | 32 A |
| Power Capacity | 7400 VA |
| Power Capacity Details | 6.4 kVA at 200 V, 7.7 kVA at 240 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.6 in |
| Height | 70.1 in |
| Weight | 11.24 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10 in |
| Shipping Depth | 4.9 in |
| Shipping Height | 76.4 in |
| Shipping Weight | 16.53 lbs |
