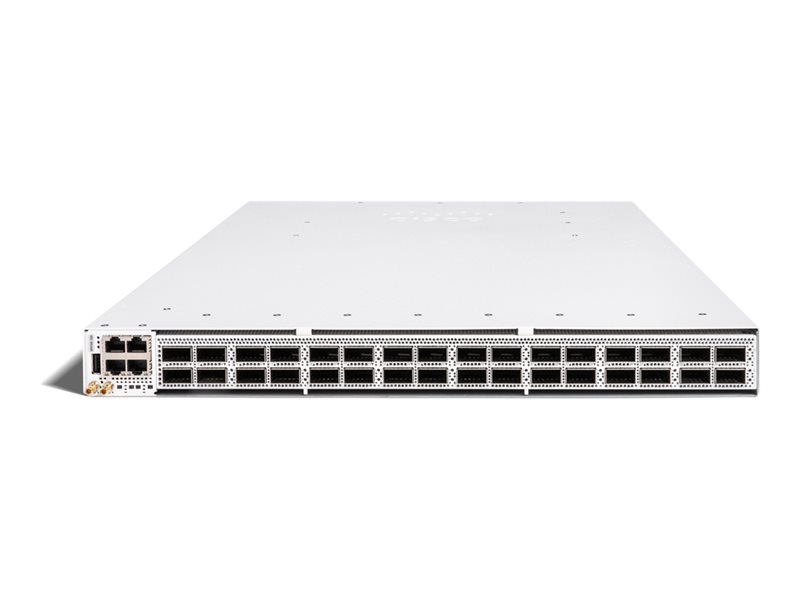

Switch - managed - 32 x 400 Gigabit QSFP-DD - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco Nexus HyperFabric HF6100-32D - switch - 32 ports - managed - rack-mountable |
| Device Type | Switch - 32 ports - managed |
| Enclosure Type | Front to back airflow rack-mountable |
| Subtype | 400 Gigabit Ethernet |
| Ports | 32 x 400 Gigabit QSFP-DD |
| Performance | Switching capacity: up to 12.8 Tbps ¦ Forwarding rate: 8 Bpps ¦ Baud rate: 115200 bits/s |
| Capacity | Indirect IPv4 routes: up to 1000000 ¦ IPv4 hosts: up to 256000 ¦ Indirect IPv6 routes: up to 1000000 ¦ IPv6 hosts: up to 128000 ¦ IPv4 routes (Multicast): up to 32000 ¦ IPv6 routes (Multicast): up to 16000 ¦ IPv4 QoS ACL scale: up to 8000 ¦ IPv6 QoS ACL scale: up to 4000 ¦ IPv4 security ACL scale: up to 8000 ¦ IPv6 security ACL scale: up to 4000 ¦ VLANs supported: 4094 |
| MAC Address Table Size | 256K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing, BGP-4, BGP-6, VRF |
| Remote Management Protocol | IPv4, IPv6 |
| Features | ZTP, image signing, secure boot, Cisco Trust Anchor module, ACL support, QoS, SPQ, unicast mode, static multicast routing, EVPN, LACP support, NetFlow, IPFIX, API support, breakout capability, remote firmware upgrade, built-in ASIC |
| Power | AC 90 - 264 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 23.6 in x 1.7 in |
| Weight | 31.06 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 32 ports - managed |
| Enclosure Type | Front to back airflow rack-mountable |
| Subtype | 400 Gigabit Ethernet |
| Ports | 32 x 400 Gigabit QSFP-DD |
| Performance | Switching capacity: up to 12.8 Tbps ¦ Forwarding rate: 8 Bpps ¦ Baud rate: 115200 bits/s |
| Capacity | Indirect IPv4 routes: up to 1000000 ¦ IPv4 hosts: up to 256000 ¦ Indirect IPv6 routes: up to 1000000 ¦ IPv6 hosts: up to 128000 ¦ IPv4 routes (Multicast): up to 32000 ¦ IPv6 routes (Multicast): up to 16000 ¦ IPv4 QoS ACL scale: up to 8000 ¦ IPv6 QoS ACL scale: up to 4000 ¦ IPv4 security ACL scale: up to 8000 ¦ IPv6 security ACL scale: up to 4000 ¦ VLANs supported: 4094 |
| MAC Address Table Size | 256K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing, BGP-4, BGP-6, VRF |
| Remote Management Protocol | IPv4, IPv6 |
| Features | ZTP, image signing, secure boot, Cisco Trust Anchor module, ACL support, QoS, SPQ, unicast mode, static multicast routing, EVPN, LACP support, NetFlow, IPFIX, API support, breakout capability, remote firmware upgrade, built-in ASIC |
| Processor | 1 x Intel: 2.4 GHz |
| RAM | 16 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Built-in Devices | 6 x fans |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 32 x 400Gbase-X QSFP-DD ¦ 1 x USB 3.0 Type A ¦ 1 x management RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | Directive 2004/108/EC, Directive 2006/95/EC, 47 CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR 22 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, EN 61000-3-2, EN 61000-3-3, KN32 Class A, CNS 13438 Class A, EN55024, CISPR 24, EN 300386, KN 61000-4, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB 4943, RoHS, WEEE |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1450 watt |
| Voltage Required | AC 90 - 264 V (50/60 Hz) |
| Features | Side Intake airflow |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 23.6 in |
| Height | 1.7 in |
| Weight | 31.06 lbs |
