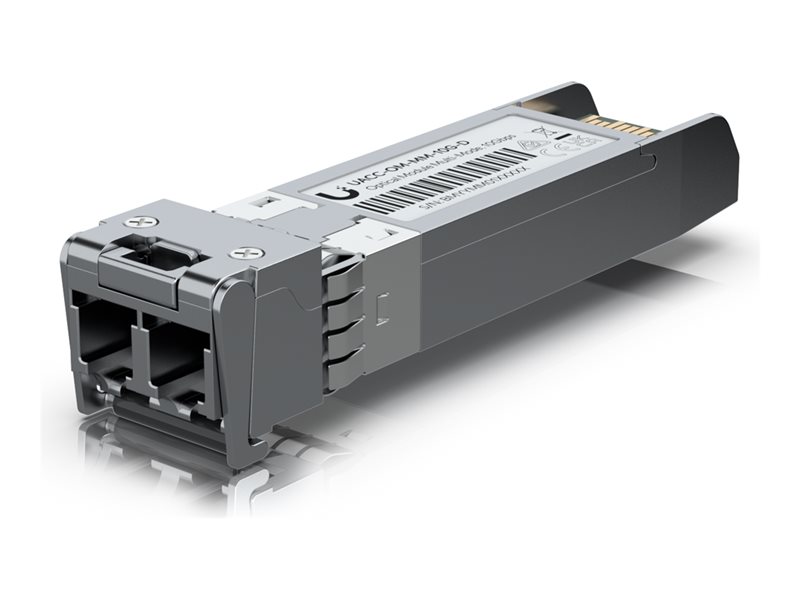

SFP+ transceiver module - 10 GigE optical - LC/UPC duplex multi-mode - up to 984 ft - 850 nm
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UACC-OM-MM-10G-D - SFP+ transceiver module - 10 GigE optical |
| Device Type | SFP+ transceiver module - LC/UPC duplex multi-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10 GigE optical |
| Max Transfer Distance | 984 ft |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Gb Ethernet (duplex) - LC/UPC multi-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, IEC/EN 60825-1:2014 Class 1, UKCA |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE optical |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 984 ft |
| Features | Black pull tab |
| Power | |
| Power Consumption Operational | 0.8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
