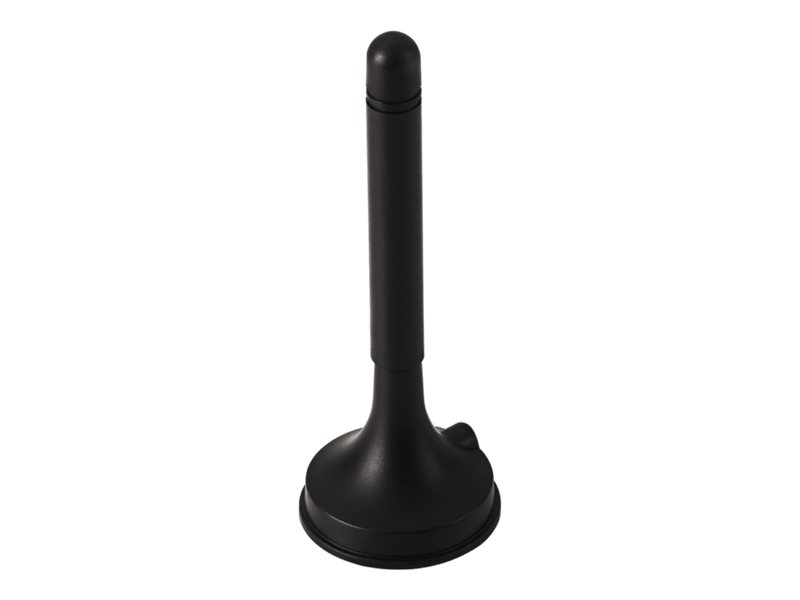

Antenna - CAT M1, mini - monopole - IoT - 3 dBi - magnetic mountable
| Main Specifications | |
|---|---|
| Product Description | Taoglas antenna - CAT M1, mini |
| Product Type | Antenna - CAT M1, mini |
| Dimensions (WxDxH) | 1.2 in x 1.2 in x 3.3 in |
| Weight | 1.13 oz |
| Form Factor | Monopole |
| Intended For | IoT |
| Antenna Placing / Mounting | Magnetic mountable |
| Compatibility | NB-IoT, LPWA, 4G, 3G, 2G |
| Frequency Range | 698 - 960 MHz, 1710 - 2700 MHz |
| Gain | 3 dBi |
| Compliant Standards | RG174, RoHS |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Antenna - CAT M1, mini |
| Width | 1.2 in |
| Depth | 1.2 in |
| Height | 3.3 in |
| Weight | 1.13 oz |
| Cable Length | 3.3 ft |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | Straight, linear polarization |
| Compliant Standards | RG174, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Cabling & Wiring | |
| Connector Provided | 1 x SMA male |
| Antenna | |
| Form Factor | Monopole |
| Intended For | IoT |
| Antenna Placing / Mounting | Magnetic mountable |
| Compatibility | NB-IoT, LPWA, 4G, 3G, 2G |
| Frequency Range | 698 - 960 MHz, 1710 - 2700 MHz |
| Gain | 3 dBi |
| Voltage Standing Wave Ratio (VSWR) | <2 |
| Impedance | 50 Ohm |
