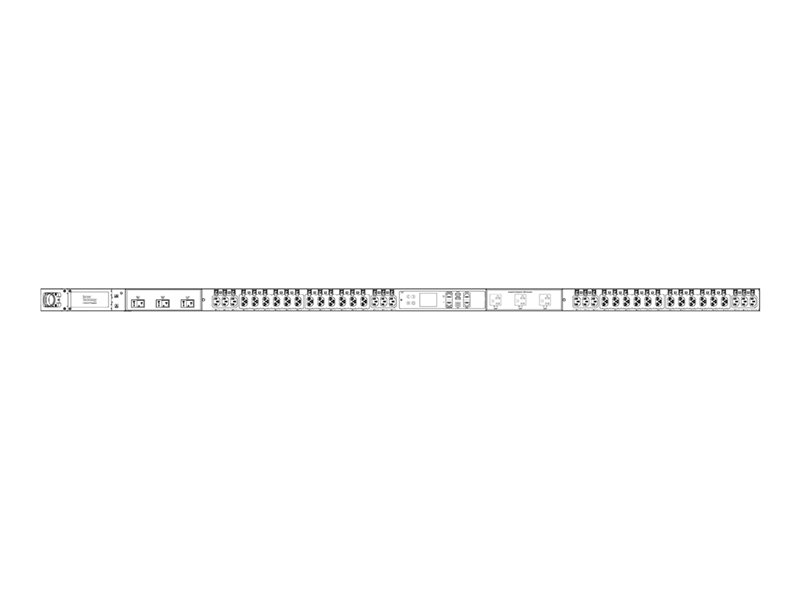

Power distribution unit (rack-mountable) - AC 208 V - 5.7 kW - Ethernet 10/100/1000, USB - input: NEMA L21-20P - output connectors: 39 (12 x IEC 60320 C13, 3 x NEMA 5-20R, 24 x IEC 60320 Cx)
| Main Specifications | |
|---|---|
| Product Description | Server Technology PRO4X Switched PDU C4W36RA-YBBE2FE3 - power distribution unit - 5.7 kW |
| Device Type | Power distribution unit - rack-mountable |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 5.7 kW |
| Input Connectors | 1 x power NEMA L21-20P |
| Output connectors | 12 x power IEC 60320 C13 - 208 V 12 A ¦ 24 x power IEC 60320 Cx - 208 V 16 A ¦ 3 x power NEMA 5-20R - 120 V 16 A |
| Networking | Ethernet 10/100/1000, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP, SFTP, SMTP, Syslog, LDAP, LDAPS, CLI, TLS 1.2, SSH-2, SNMP 3, SNMP 2c, IPv4, IPv6, LDAP 3.0, RADIUS, TACACS+ |
| Dimensions (WxDxH) | 2.2 in x 2.5 in x 6 ft |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Features | High Density Outlet Technology (HDOT), Branch Circuit Protection, environmental sensor ready, locking outlets, Per Input Power Sensing (PIPS), Ramlock Locking Outlets, Per Outlet Power Sensing (POPS), email alerts support, current meter, voltage monitoring, active power meter, apparent power meter, power factor meter, energy meter, Branch Current Monitoring, Raritan Xerus Technology, daisy chain functionality, multi-color LCD, hot-swappable controller, LED indicators, waveform capture, alternating-phase outlets |
| Compliant Standards | IEC/EN 62368-1, TUV Rheinland, IEC 62368-1 CB Scheme, EMC, EN 55032, CISPR 32, EN 55035, CISPR 35, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3, ROHS Directive 2011/65/EU, LVD 2014/35/EU, EMCD 2014/30/EU, UKCA, RoHS, cTUVus, UL 62368-1, CSA C22.2 No. 62368-1, FCC Subpart B 15.107 Class A, FCC Subpart B 15.109 Class A, ICES-003 Class A, UL 489, CSA C22.2 No. 5, IEC 60947-2, EN 60947-2 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP, SFTP, SMTP, Syslog, LDAP, LDAPS, CLI, TLS 1.2, SSH-2, SNMP 3, SNMP 2c, IPv4, IPv6, LDAP 3.0, RADIUS, TACACS+ |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 208 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-20P |
| Power Output Connectors Details | 12 x power IEC 60320 C13 - 208 V 12 A ¦ 24 x power IEC 60320 Cx - 208 V 16 A ¦ 3 x power NEMA 5-20R - 120 V 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 20 A |
| Power Capacity | 5.7 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.5 in |
| Height | 6 ft |
