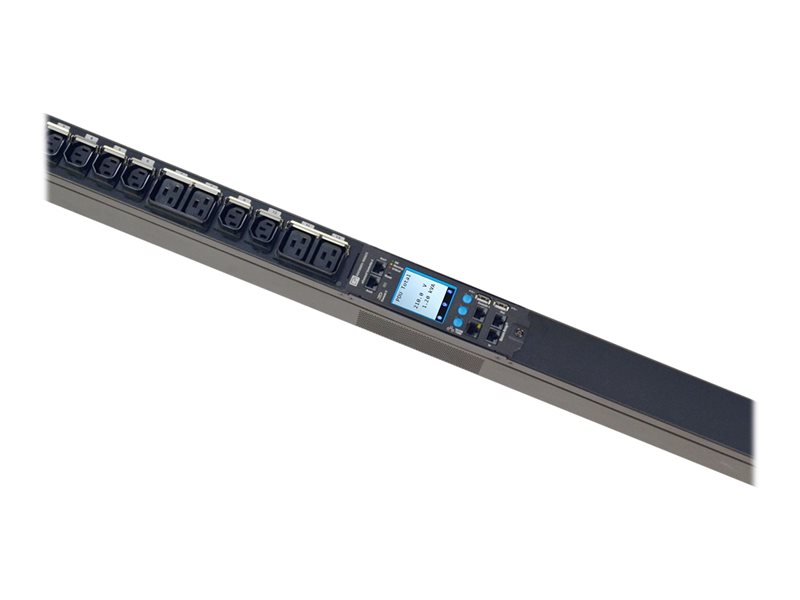

Power distribution unit (rack-mountable) - AC 208 V - 17.2 kW - 3-phase - Ethernet 10/100/1000, serial, USB - input: IEC 60309 3P+E - output connectors: 30 (12 x IEC 60320 C13, 18 x IEC 60320 C19) - 42U - 10 ft cord - North America - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | CPI Monitored eConnect EA-3033-C - power distribution unit - 17.2 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 42U |
| Localization | North America |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 17.2 kW |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Output connectors | 12 x power IEC 60320 C13 ¦ 18 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, serial, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, CLI, HTTP, RADIUS, LDAP, HTTPS, SSH |
| Color | Black |
| TAA Compliant | TAA Compliant |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Cord Length | 10 ft |
| Color | Black |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 2 x sensor ¦ 1 x USB - mini-USB Type B ¦ 2 x Secure Array - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Load Balancing, vertical orientation, for indoor use, Secure Array technology, field-replaceable module, LCD display, environmental sensor ready, electronic lock integration, Hydraulic-Magnetic breakers, locking outlets |
| Compliant Standards | IEC 62368, UL, UL 489, cUL, FCC Part 15 A, EN55022, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, serial, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, CLI, HTTP, RADIUS, LDAP, HTTPS, SSH |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 208 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Power Output Connectors Details | 12 x power IEC 60320 C13 ¦ 18 x power IEC 60320 C19 |
| Output Voltage | AC 208 V 50/60 Hz |
| Max Electric Current | 60 A |
| Power Capacity | 17.2 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 26.46 lbs |
