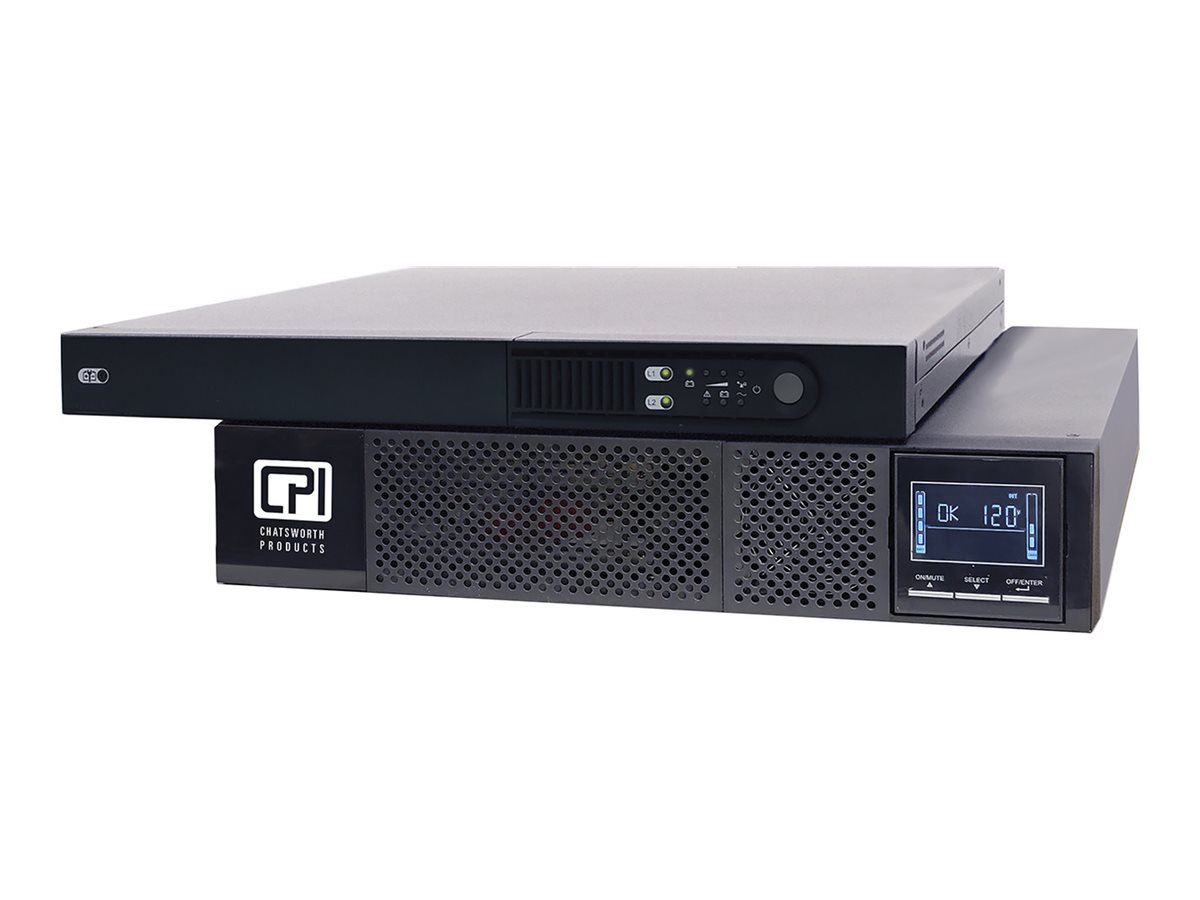

UPS (rack-mountable / external) - AC 120 V - 1450 Watt - 1500 VA - 1-phase - 3 x battery - 9 Ah - RS-232, USB - output connectors: 8 - 2U - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | CPI VD1500A - UPS - 1450 Watt - 1500 VA - 9 Ah - TAA Compliant |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 2U |
| Weight | 34.17 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 120 V |
| Output Voltage | AC 100/110/115/127 V |
| Power Capacity | 1450 Watt / 1500 VA |
| Input Connectors | Power NEMA 5-15P |
| Battery | Lead acid - 9 Ah |
| Batteries Qty | 3 |
| Run Time (Up To) | 3 min at full load |
| Networking | RS-232, USB |
| Included Accessories | Tower pedestals, horizontal mounting bracket |
| Color | Black |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 17.2 in x 15.1 in x 3.5 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | EPO (emergency power off) ¦ - RJ-45 |
| Expansion Slots | Intelligent Slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Tower pedestals, horizontal mounting bracket |
| Cables Included | Power cable 6 ft |
| Features | Indoor use, LCD display, double conversion, remote ON/OFF function, auto-sensing, overload protection |
| Compliant Standards | UL, cUL, RoHS, FCC Class B certified |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Software / System Requirements | |
| Software Included | ViewPower |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Battery | |
| Quantity | 3 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 6 min at 50% load |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 55 - 150 V |
| Frequency Provided | 50/60 Hz ± 0.1Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA 5-15P |
| Output Voltage | AC 100/110/115/127 V 50/60 Hz |
| Power Capacity | 1450 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Efficiency | 98% |
| Total Harmonic Distortion (THD) | 2 % |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 15.1 in |
| Height | 3.5 in |
| Weight | 34.17 lbs |
