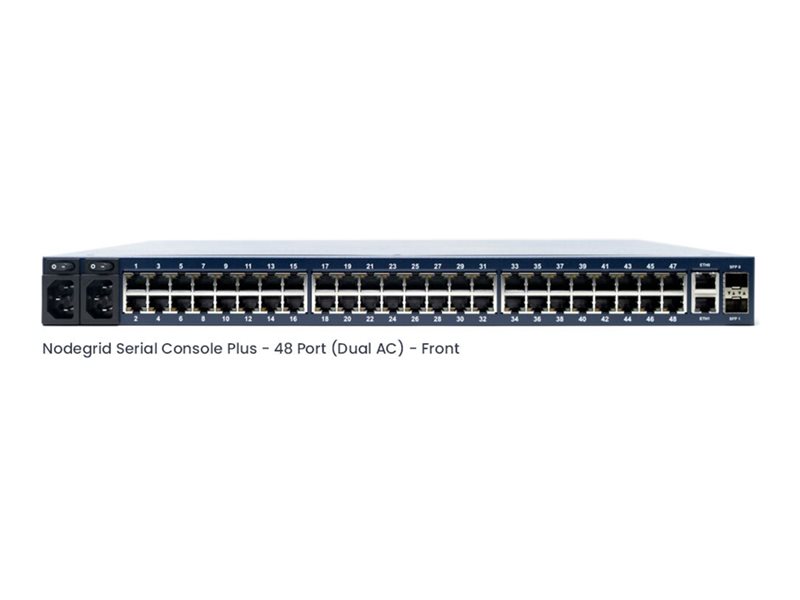

Core Edition - console server - Cisco rolled, 2-core CPU, 4GB DDR4, 16 GB SSD, 2 SFP, 2 GbE, 2 USB 3.0, dual AC power adapter and cord included, 2 year support and HW warranty - 48 ports - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | ZPE Nodegrid Serial Console - Core Edition - console server - Cisco rolled, 2-core CPU, 4GB DDR4, 16 GB SSD, 2 SFP, 2 GbE, 2 USB 3.0, dual AC power adapter and cord included, 2 year support and HW warranty |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Intel |
| RAM | 4 GB |
| Flash Memory | 16 GB |
| Ports Qty | 48 |
| Capacity | Maximum number of sessions: 100 |
| Included Accessories | Power cable |
| Power | DC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 12.3 in x 1.7 in |
| Weight | 11.61 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 17.4 in |
| Depth | 12.3 in |
| Height | 1.7 in |
| Weight | 11.61 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 2 SIM card |
| Interfaces | 48 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - SFP ¦ 2 x 10/100/1000Base-T (4PPoE) - RJ-45 ¦ 1 x console - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Power cable |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 48 |
| Connectivity Technology | Wired |
| Network / Transport Protocol | IPv4, IPv6, TCP/IP, DHCP, HTTPs |
| Remote Management Protocol | SSH, SNMP 1, SNMP 2, SNMP 3, Syslog, Telnet, SSH-2 |
| Capacity | Maximum number of sessions: 100 |
| Features | Failover support, VLAN support, LLDP support, LACP support, command-line interface (CLI) management, Zero-touch provisioning (ZTP), Remote Procedure Call (RPC), Remote Procedure Call (RPC, gRPC), Trusted Platform Module 2.0 (TPM 2.0), UEFI Secture Boot, 4096-bit encryption, IP forwarding support, firewall protection, TCP support, port sharing, dual core CPU, e-mail notification, VPN Server, VPN client |
| Encryption Algorithm | TLS 1.3, TLS 1.2, TLS 1.1, TLS 1.0, MD5, SHA |
| Authentication Method | X.509 certificates, LDAP, RADIUS, TACACS+, Kerberos, SAML 2.0 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | DC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 45 Watt |
| Software / System Requirements | |
| OS Provided | Nodegrid OS (64-bit) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 16 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21 in |
| Shipping Depth | 19.6 in |
| Shipping Height | 8.2 in |
| Shipping Weight | 19.28 lbs |
